Aten HDMI HDBaseT-Lite Transmitter with US Wall Plate
Item No:
700358
MPN:
VE1801UST-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

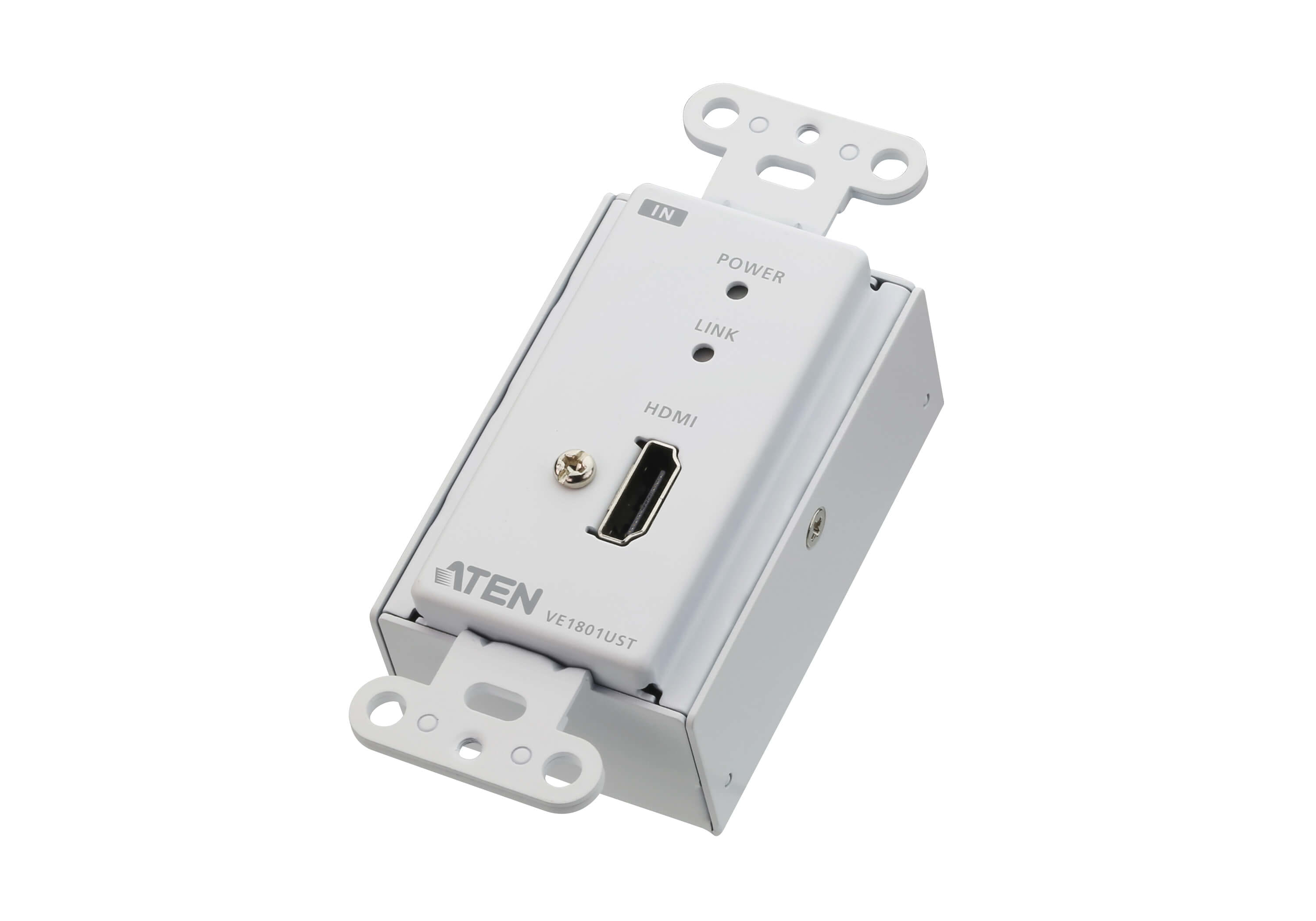

ATEN VE1801UST AT U, 4096 x 2160 pixels, AV transmitter, 70 m, Wired, 3D, HDCP
ATEN VE1801UST is a transmitter designed to reliably send 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L 2910 Cat 6 cable. With US Wall Plate design, the VE1801UST can be conveniently mounted in a one gang junction box. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats.
The compact wall plate design does away with bulky cables, allowing a neat and convenient installation. Therefore, VE1801UST is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
The compact wall plate design does away with bulky cables, allowing a neat and convenient installation. Therefore, VE1801UST is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Maximum refresh rate | 60 Hz |
| RS-232 pass-through |
 |
| Electrostatic Discharge (ESD) protection | 15 kV |
| LED indicators | Status |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| On/off switch The button which is pressed to switch the device on or off. |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| 3D The device can be used with 3D technology. |
|
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Consumer Electronics Control (CEC) support |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| HDCP version | 2.2 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| HDMI version | 1.4 |
| Power | |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.75 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 44.4 mm |
| Depth The distance from the front to the back of something. | 104.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 41 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 170 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| SKU | 700358 |
| MPN | VE1801UST-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
