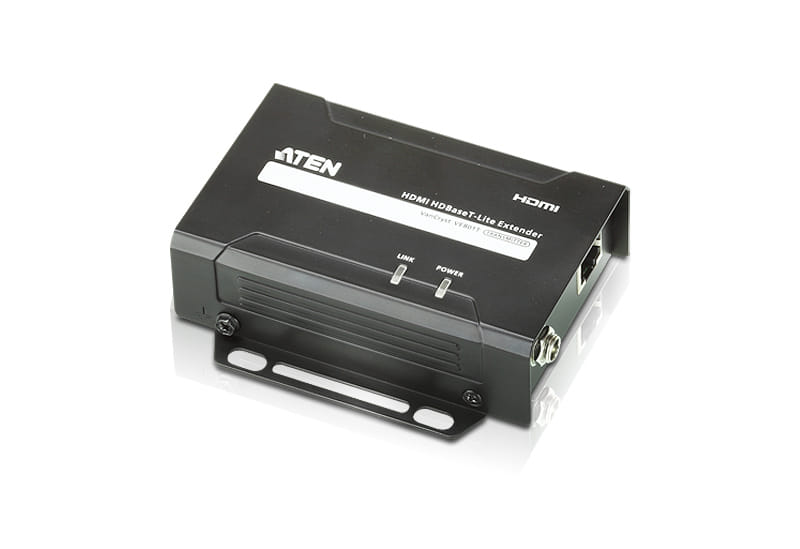

ATEN VE801T-AT-U, 3840 x 2160 pixels, AV transmitter, 70 m, Wired, Black, HDCP
The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat6, Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.85 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 87 mm |
| Depth The distance from the front to the back of something. | 103 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 240 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| AC adapter included |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 700421 |
| MPN | VE801T-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
