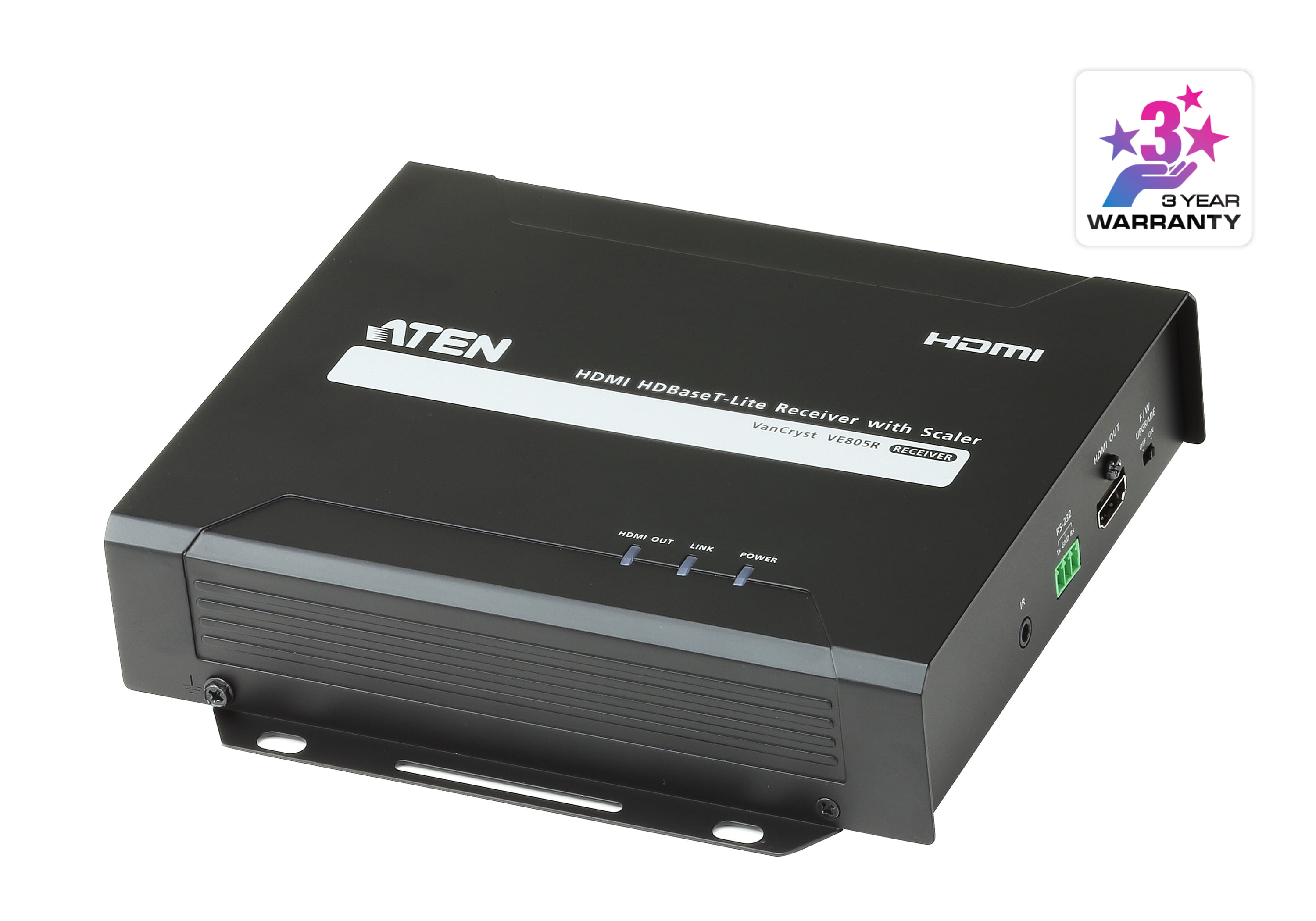

ATEN VE805R AT U, 1920 x 1080 pixels, AV receiver, 70 m, Wired, Black, HDCP
The VE805R HDMI HDBaseT Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch functions. In addition, the VE805R is equipped with RS 232 and IR signaling pass through, which allows RS 232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi directional control of the source or display device.
With a built in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch functions. In addition, the VE805R is equipped with RS 232 and IR signaling pass through, which allows RS 232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi directional control of the source or display device.
| Features | |
| Type Characteristics of the device. | AV receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| RS-232 pass-through |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 225 MHz |
| On/off switch The button which is pressed to switch the device on or off. |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| HDCP version | 1.4 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| RJ-45 input ports | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 1.4 |
| RS-232 input ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 9.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 169.2 x 181.8 x 42 mm |
| Receiver weight | 830 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 700430 |
| MPN | VE805R-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
