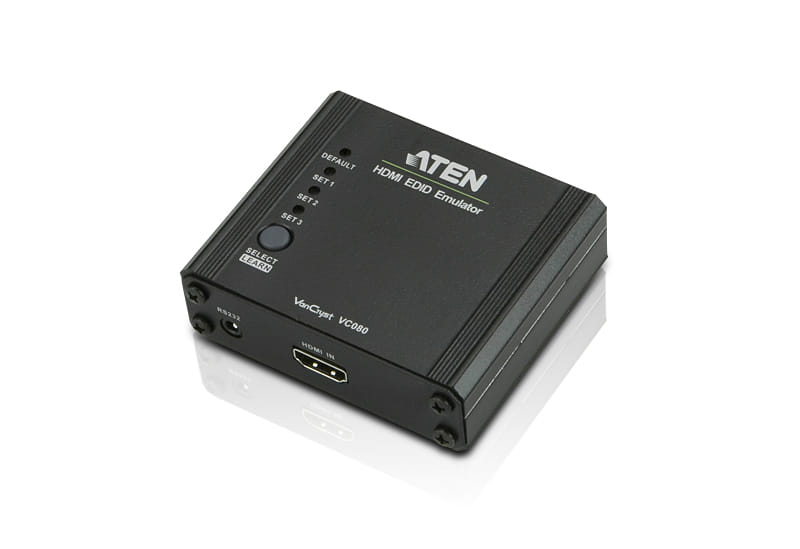

ATEN HDMI EDID Emulator
The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
-
Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
-
EDID Wizard – allows a user an easy way to manage EDID settings
-
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
-
EDID mode selection – Default, Learning , Programming
-
HDMI (3D, Deep Color), HDCP compatible
-
Supports Dolby True HD and DTS HD Master Audio
-
Automatically manages EDID communication between connected devices
-
Signaling rates up to 2.25 Gbits in support of 1080p display
-
LED indication of video source devices
-
Supports wide screen
-
Supports hot-plugging
-
Non-Powered *
* If the video source is not receiving enough power an external power cord should be connected.
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080i,1080p,480i,480p,720i,720p |
| Other features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 79 mm |
| Depth The distance from the front to the back of something. | 71.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 25.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 150 g |
| SKU | 234962 |
| MPN | VC080-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
