Overview

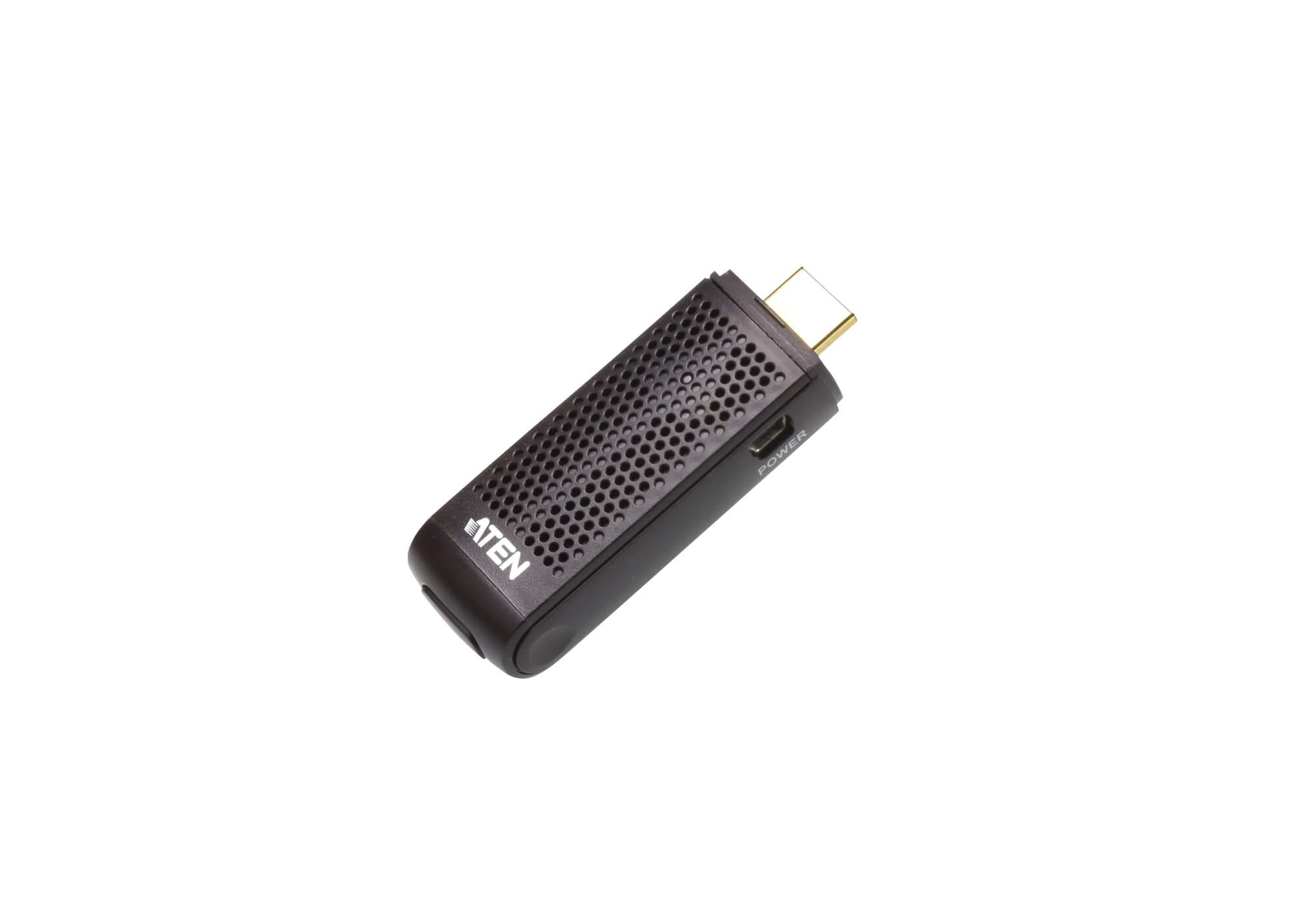

The VE819T HDMI Dongle Wireless Transmitter is an ideal choice for meeting rooms and home theater systems. It sends uncompressed Full HD 1080p signal from your HDMI devices such as
laptops, computers and set top boxes. Up to four Wireless HDMI Transmitters can be paired to the Receiver, boosting the number of total transmitters per receiver to a maximum of 4.
For utility flexibility, the VE819T is designed to simply plug and play, no drivers or software are required.
Package Contents
- 1x VE819T HDMI Dongle Wireless Transmitter
- 1x Mini USB to USB Cable
- 1x Mini USB Power Adapter
- 1x User Instructions
- 1x Warranty Card
Features
- Low latency < 1ms
- Uncompressed full HD 1080p video transmission
- Wireless extend or mirror the computer or laptop
- Extends signals up to 10 m, up to 7 m with superior image quality*
- Up to 4 Wireless HDMI Transmitters can be paired to one Receiver
- Plug-and-play — No software installation required
Note*: Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances
Diagram
Specifications
| Video Input | |
| Interfaces | 1 x HDMI Type A Male (Black) |
| Impedance | 100 Ώ |
| Max. Distance | N/A |
| Video Output | |
| Interfaces | N/A |
| Impedance | N/A |
| Video | |
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Compliance | HDMI (3D) HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080p/60Hz@10m (Line of Sight) * |
| Audio | |
| Input | 1 x HDMI Type A Male (Black) |
| Output | N/A |
| Control | |
| IR | N/A |
| Connectors | |
| Power | 1 x Mini USB Jack |
| Power Consumption | 5 VDC (Mini USB) |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.03 kg ( 0.07 lb ) |
| Dimensions (L x W x H) | 3.00 x 7.03 x 1.75 cm (1.18 x 2.77 x 0.69 in.) |
| Carton Lot | 5 pcs |
| Note | * Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | 318507 |
| MPN | VE819T-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
