ATEN VE807-AT-U, 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, 3D, HDCP

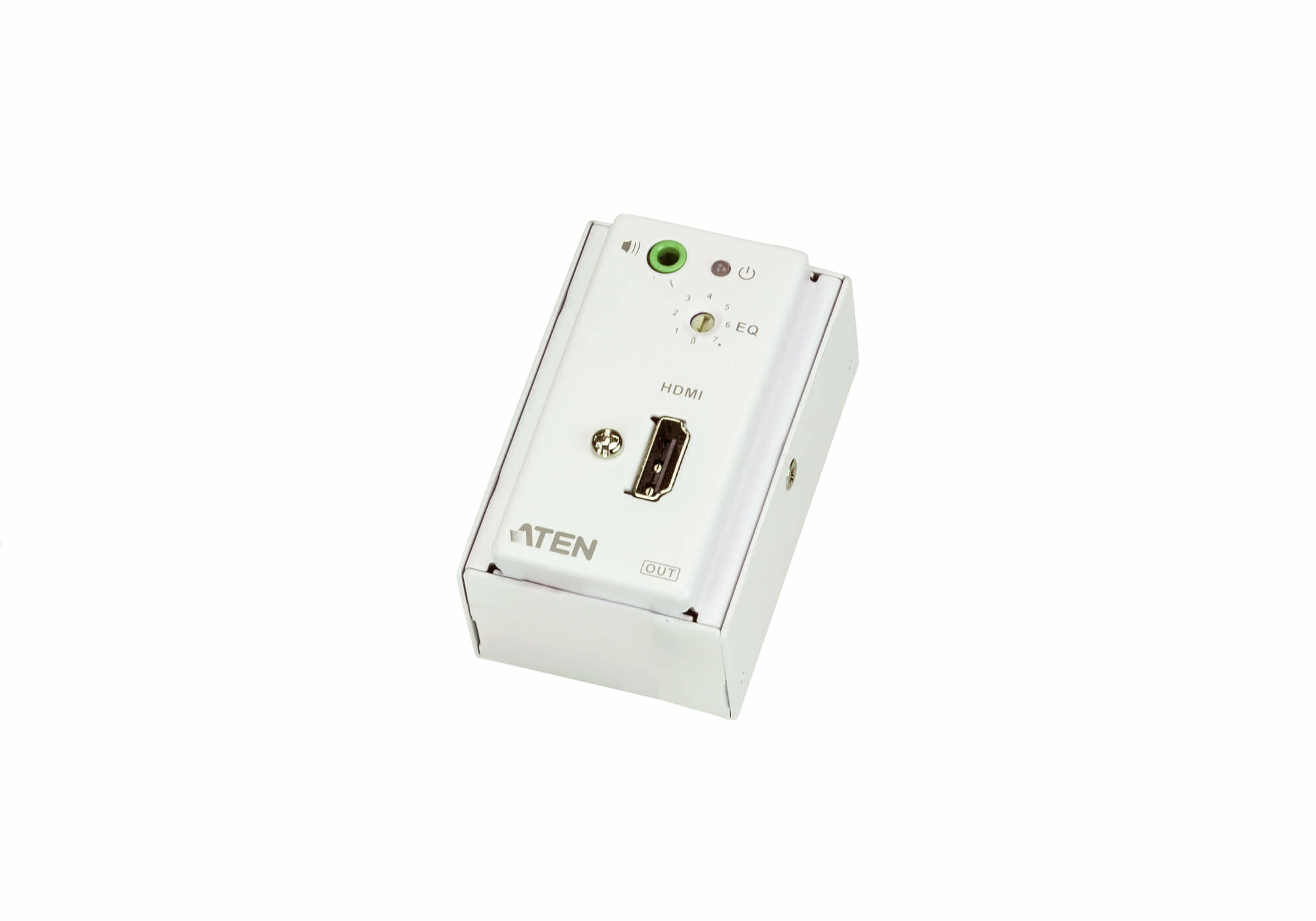

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.
The VE807 can be easily powered at either the transmitter or receiver side using a second Cat 5e/6 cable. The VE807 s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public s view.
The VE807 can be easily powered at either the transmitter or receiver side using a second Cat 5e/6 cable. The VE807 s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public s view.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Cable types supported | Cat5, Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 60 m |
| Audio system System used to play music or speech. | stereo |
| Electrostatic Discharge (ESD) protection | 15 kV |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080i, 1080p |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 225 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| 3D The device can be used with 3D technology. |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Video in | 1 |
| Video out | 1 |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage (transmitter) | 9 V |
| Operating voltage (receiver) | 9 V |
| Power consumption (transmitter) (max) | 2.9 W |
| Power consumption (receiver) (max) | 2.9 W |
| External power adapter |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 68.6 x 49.8 x 26.9 mm |
| Receiver weight | 180 g |
| Transmitter dimensions (WxDxH) | 68.6 x 49.8 x 26.9 mm |
| Transmitter weight | 180 g |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 700436 |
| MPN | VE807-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
