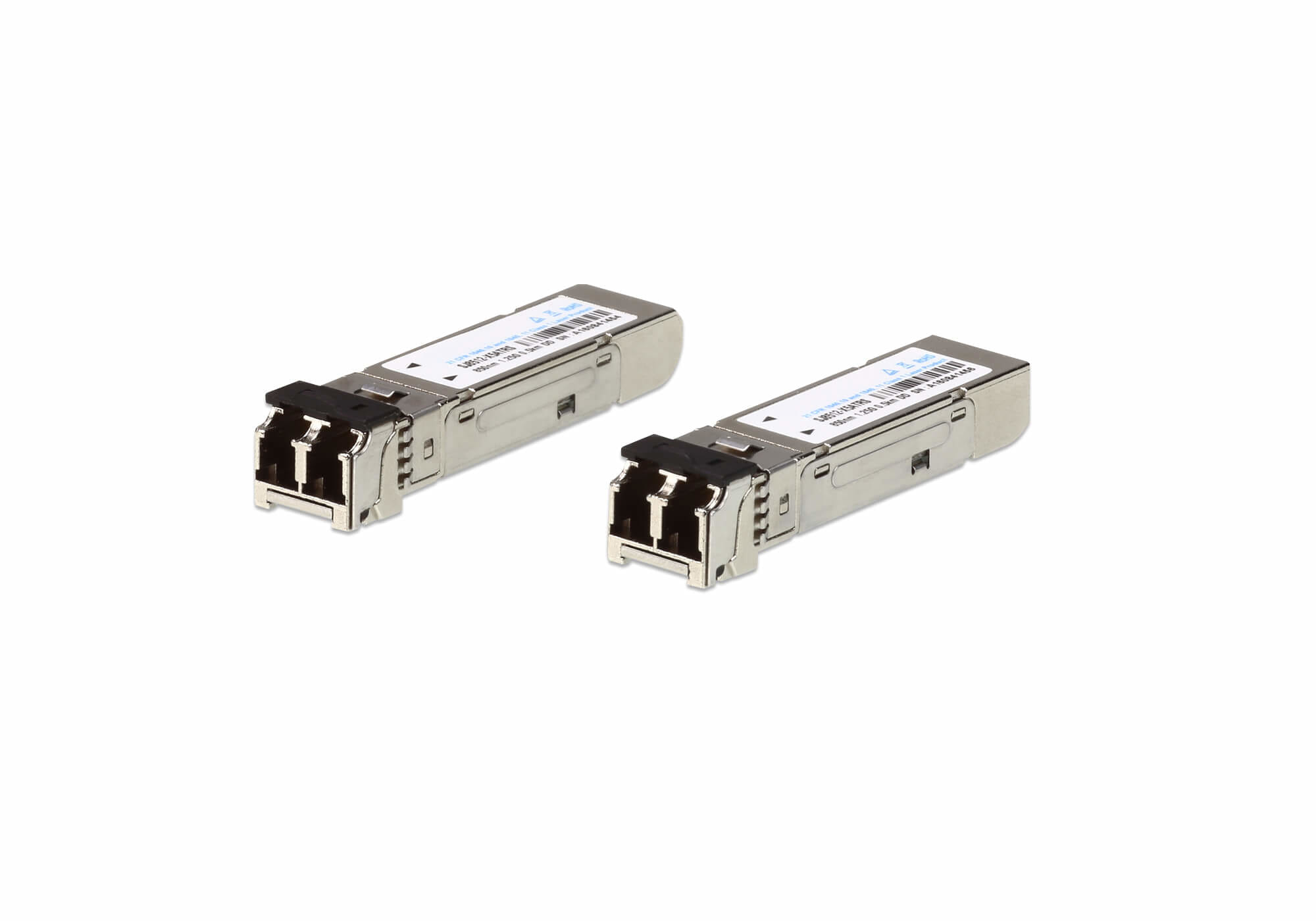

ATEN 2A-136G, Fiber optic, 1250 Mbit/s, SFP, 550 m, 1300 nm, Blue, Metallic
The 2A-136G Fiber Multi-Mode 1.25G SFP Transceiver Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported |
 |
| Multi-mode fiber (MMF) supported |
|
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 550 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1300 nm |
| Digital Diagnostics Monitoring (DDM) |
|
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Blue, Metallic |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 146 mm |
| Depth The distance from the front to the back of something. | 55.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20 g |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 699203 |
| MPN | 2A-136G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
