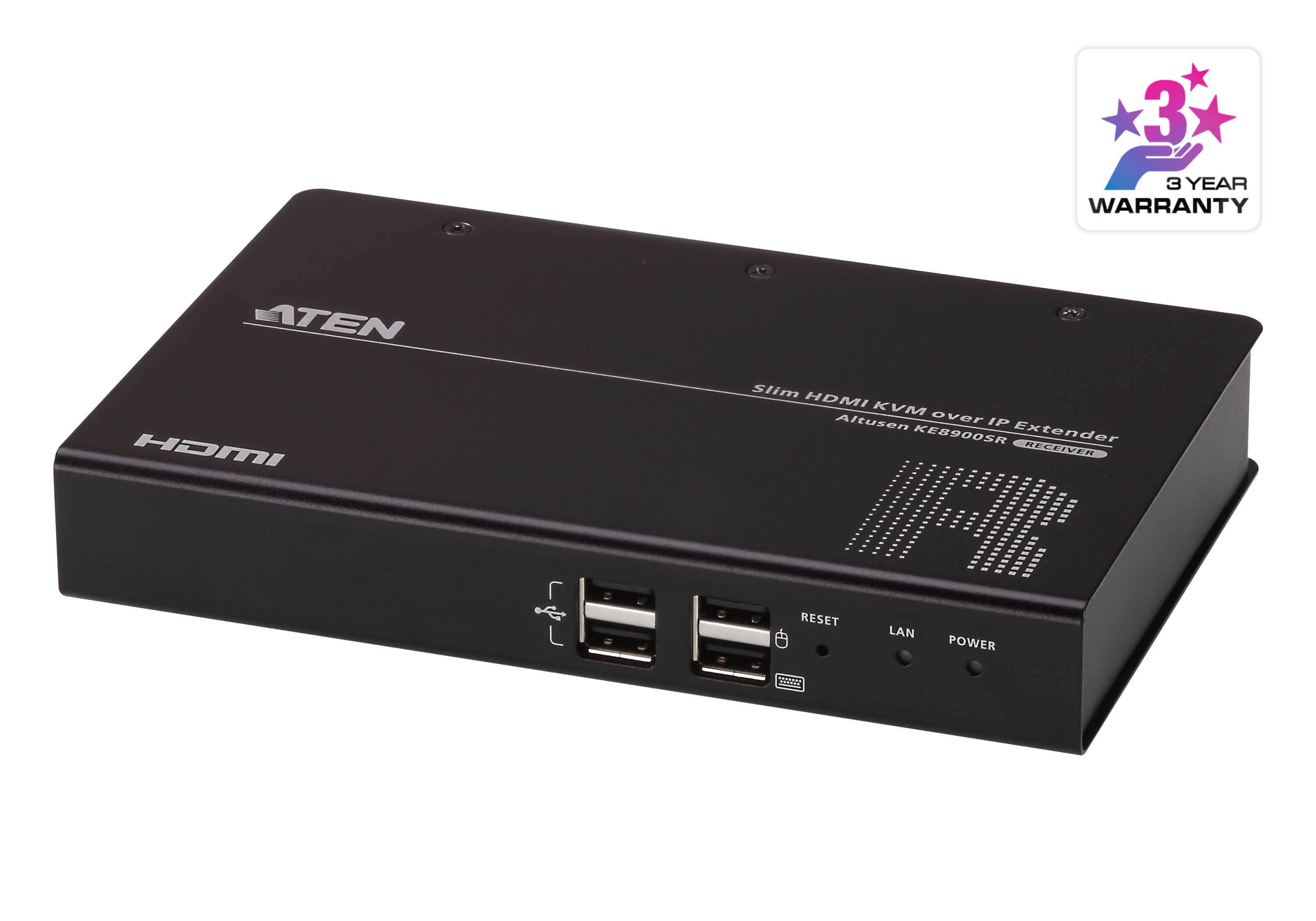

Aten HDMI Slim KVM over IP Receiver, supports up to 1920 x 1200 @ 60 Hz
Advance processor provides visually lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; compliant with HDMI 1.4a and HDCP 1.4
Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design
Push and Pull - share content instantly by just one click
Connectors
Virtual Media 2 x USB Type A Female (Black)
Console Ports 2 x USB Type A Female (Black)
1 x HDMI Female (Black)
1 x DB-9 Male (Black)
Power 1 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.35W:46BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0 "50 DegC
Storage Temperature -20 "60 DegC
Humidity 0 "95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.64 kg ( 1.41 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x Slim HDMI Single Display KVM over IP Receiver
1x Power Adapter
1x Mounting Kit
1x HDMI Lockpro
1x User Instructions
Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design
Push and Pull - share content instantly by just one click
Connectors
Virtual Media 2 x USB Type A Female (Black)
Console Ports 2 x USB Type A Female (Black)
1 x HDMI Female (Black)
1 x DB-9 Male (Black)
Power 1 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.35W:46BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0 "50 DegC
Storage Temperature -20 "60 DegC
Humidity 0 "95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.64 kg ( 1.41 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x Slim HDMI Single Display KVM over IP Receiver
1x Power Adapter
1x Mounting Kit
1x HDMI Lockpro
1x User Instructions
| Features | |
| Type Characteristics of the device. | Receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 1920 x 1200 pixels |
| KVM port selection | OSD, Push-buttons |
| Supported resolutions | 640 x 480 - 1920 x 1200 |
| On Screen Display (OSD) |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| LED indicators |
|
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (receiver) (max) | 4.35 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Receiver width | 18.2 cm |
| Receiver depth | 11.8 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 640 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 100 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 173 mm |
| Package weight Weight of the packaged product. | 1.04 kg |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.01 kg |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Mounting bracket(s) included |
|
| Ports & interfaces | |
| USB port type | USB Type-A |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Logistics data | |
| Master (outer) case net weight | 5.05 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.74 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 646296 |
| MPN | KE8900SR-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
