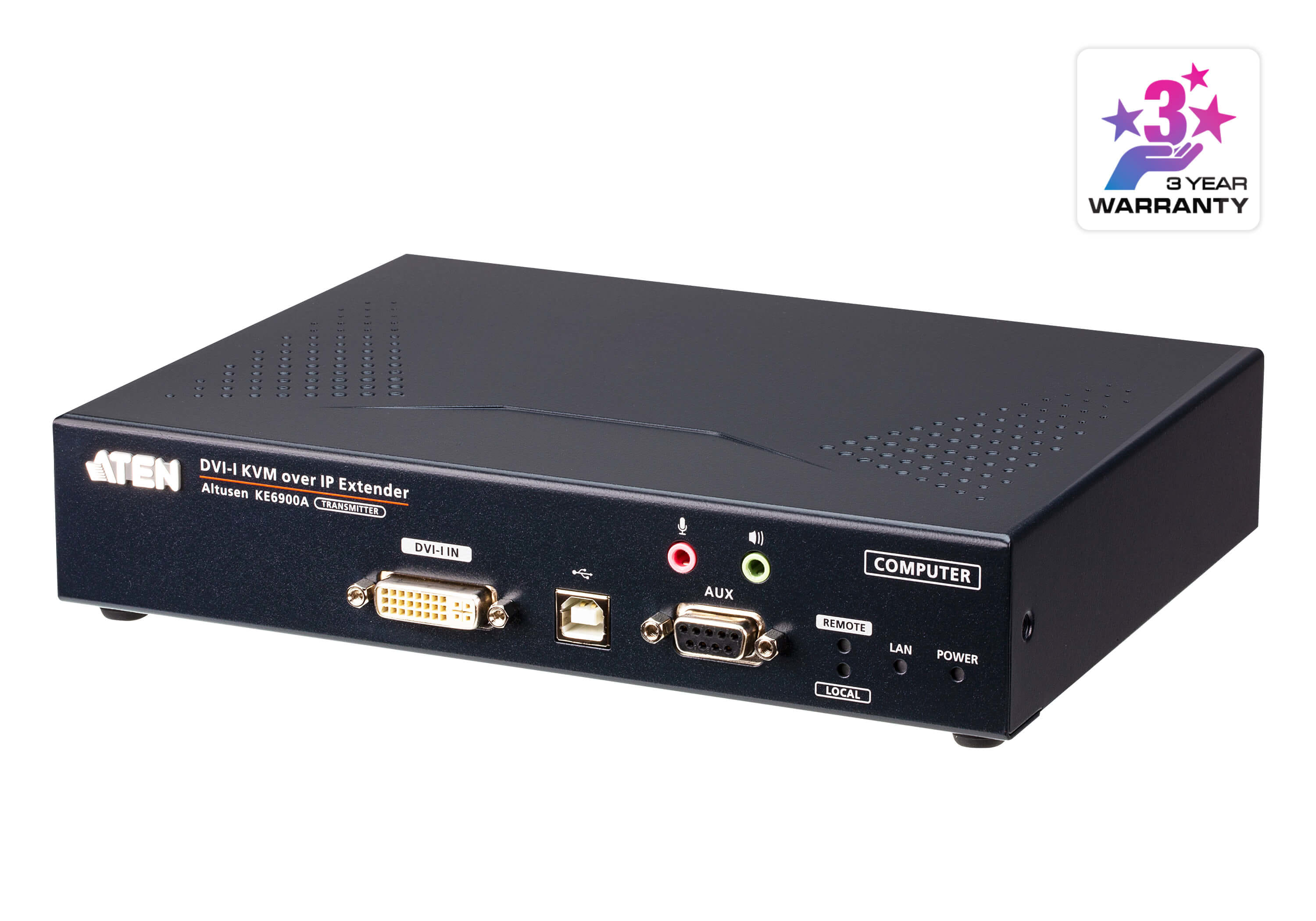

ATEN KE6900AT-AX-U, Transmitter, Wired, 10000 m, Cat5e, 1920 x 1200 pixels, Push-buttons
The KE6900A extender is consisted of a high performance IP-based transmitter (KE6900AT) that connects to the computer and a receiver (KE6900AR) that provides console access from a separate location. The KE6900A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.
1x KE6900AT DVI-I Single Display KVM over IP Transmitter
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x LIN5-35W1-W11G KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Foot Pad Set (4 pcs.)
1x KC06-0040-200G Mounting Kit
1x User Instructions
1x KE6900AT DVI-I Single Display KVM over IP Transmitter
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x LIN5-35W1-W11G KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Foot Pad Set (4 pcs.)
1x KC06-0040-200G Mounting Kit
1x User Instructions
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Cable types supported | Cat5e |
| Maximum digital resolution | 1920 x 1200 pixels |
| KVM port selection | Push-buttons |
| Colour depth | 24 bit |
| On Screen Display (OSD) |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| LED indicators |
|
| Transmitter | |
| Transmitter video port type | DVI-I |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5 V |
| Power consumption (transmitter) (max) | 7.95 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 207 mm |
| Package depth The distance from the front to the back of the packaging. | 414 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 2.34 kg |
| Technical details | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 163.3 x 215 x 41.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.73 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | Audio (3.5mm), DVI, USB |
| Manual |
|
| Mounting bracket(s) included |
|
| Ports & interfaces | |
| USB port type | USB Type-A |
| RJ-45 ports quantity | 1 |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| SKU | 646254 |
| MPN | KE6900AT-AX-U |
