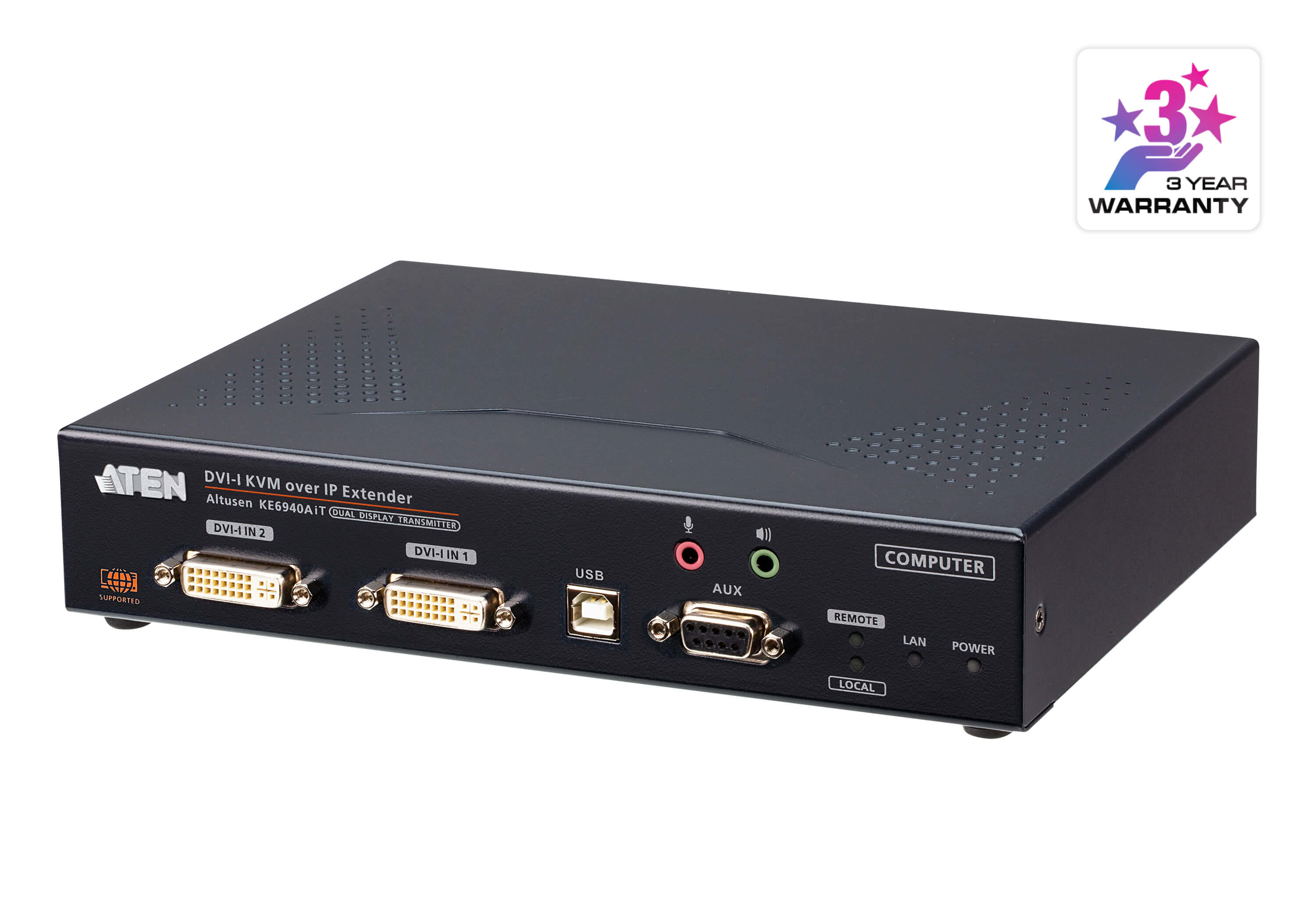

Aten FHD Dual DVI-I KVM over IP Transmitter
Item No:
767138
MPN:
KE6940AIT-AX-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN KE6940AIT-AX-U, Transmitter, Wired, 1920 x 1200 pixels, Black, Metal, Link, Power
The KE6940AiT are high performance IP-based transmitters that, when used with receivers (e.g. KE6940AR), provide console access from a separate location. The setup allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet and internet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| LED indicators | Link, Power |
| Transmitter | |
| Transmitter video port type | DVI-I |
| Transmitter local video port |
 |
| Transmitter local video port type | DVI-I |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Power | |
| AC adapter output voltage | 12 V |
| Power consumption (transmitter) (max) | 18.36 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 16.3 cm |
| Transmitter depth | 21.5 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.18 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 207 mm |
| Package depth The distance from the front to the back of the packaging. | 414 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 2.55 kg |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| Sustainability certificates | RoHS |
| Packaging content | |
| AC adapter included |
|
| Cables included | DVI |
| Manual |
|
| Mounting bracket(s) included |
|
| Ports & interfaces | |
| USB port type | USB Type-B |
| RJ-45 ports quantity | 2 |
| PC Audio in The socket (port) for the PC audio input. |
|
| SKU | 767138 |
| MPN | KE6940AIT-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
