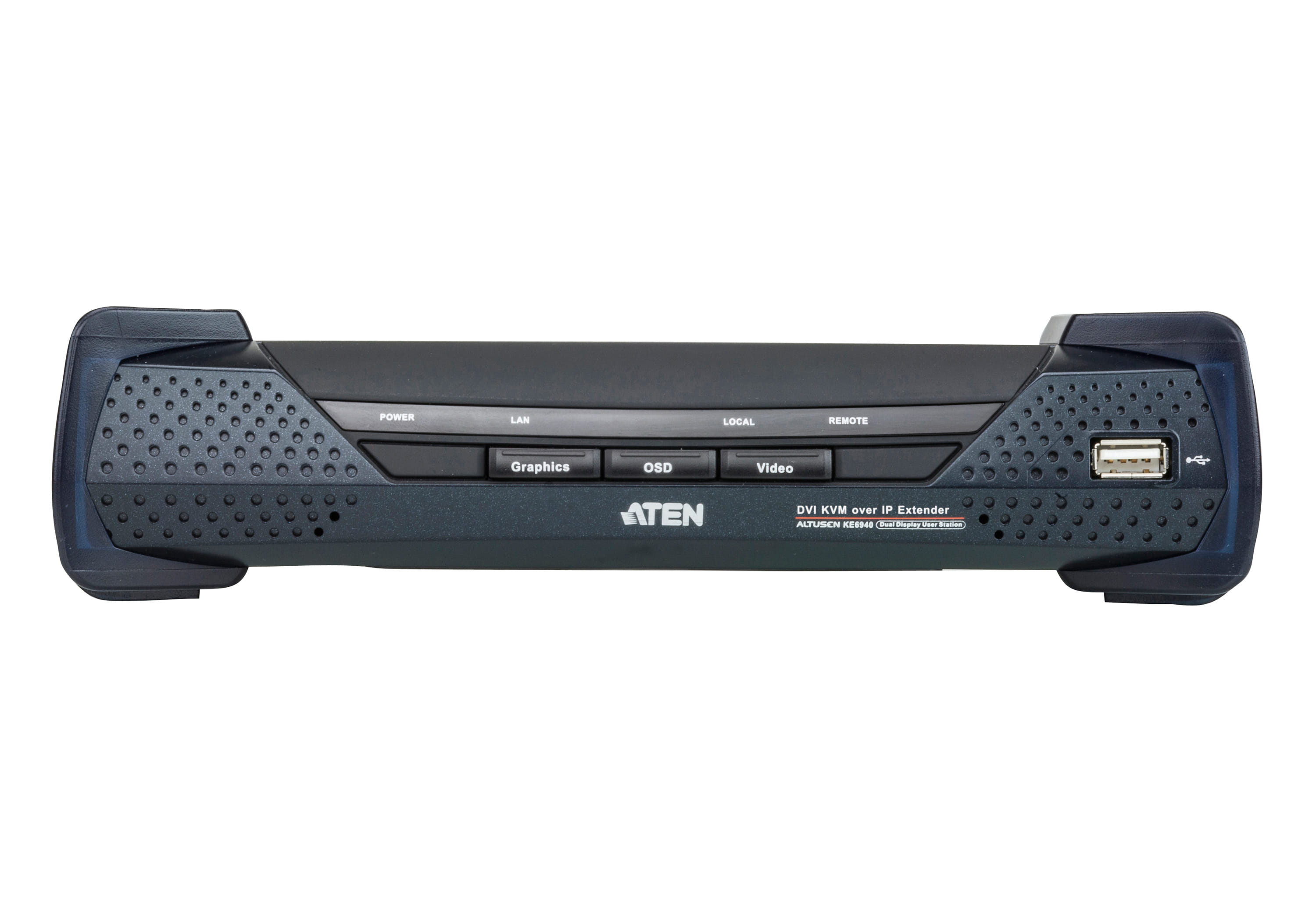

Aten FHD Dual DVI I KVM over IP Receiver
Item No:
700091
MPN:
KE6940R-AX-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN USB DVI I Dual Display KVM Over IP Receiver, Receiver, Wired, 1920 x 1200 pixels, 1920 x 1200 pixels, 60 Hz, Push buttons
ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen KE6940 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.
Utilizing expertise in Over IP KVM solutions, the KE6940 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6940 Dual View Extender supports two DVI displays at each end, allowing the video output to display on two monitors.
The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point to point, point to multipoint, and multipoint to multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers to consoles in several ways: one to one (Extender mode), one to many (Splitter mode), many to one (Switch mode), or many to many (Matrix mode).
The Matrix Manager software provides advanced features for username/password authentication, autodetection of all KE6940 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES 128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS 232 support, and Auto MDIX, the KE6940 is the most cost effective and convenient way to get a full digital extension from anywhere on the intranet.
Utilizing expertise in Over IP KVM solutions, the KE6940 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6940 Dual View Extender supports two DVI displays at each end, allowing the video output to display on two monitors.
The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point to point, point to multipoint, and multipoint to multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers to consoles in several ways: one to one (Extender mode), one to many (Splitter mode), many to one (Switch mode), or many to many (Matrix mode).
The Matrix Manager software provides advanced features for username/password authentication, autodetection of all KE6940 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES 128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS 232 support, and Auto MDIX, the KE6940 is the most cost effective and convenient way to get a full digital extension from anywhere on the intranet.
| Features | |
| Type Characteristics of the device. | Receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Maximum refresh rate | 60 Hz |
| KVM port selection | Push-buttons |
| Colour depth | 24 bit |
| On Screen Display (OSD) |
|
| Firmware upgradeable |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| LED indicators |
|
| Receiver | |
| Receiver local video port type | DVI-I |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| Power consumption (receiver) (max) | 9.53 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Receiver width | 17.2 cm |
| Receiver depth | 22.8 cm |
| Receiver height | 5.48 cm |
| Receiver weight | 1.25 kg |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Ports & interfaces | |
| USB port type | USB Type-A |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| SKU | 700091 |
| MPN | KE6940R-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
