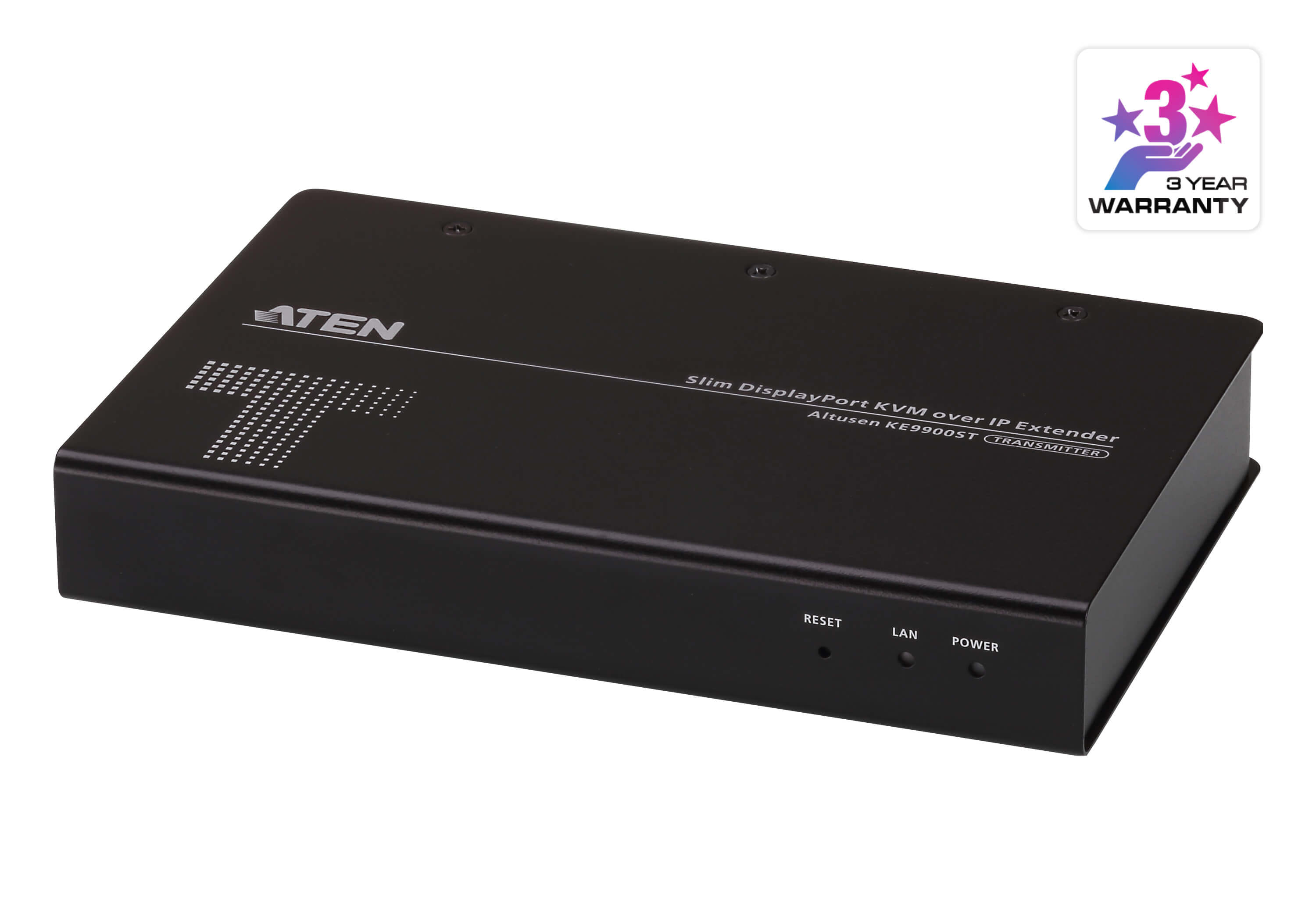

Aten DisplayPort Slim KVM over IP Transmitter, supports up to 1920 x 1200 @ 60 Hz
Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth; compliant with DP 1.2 and HDCP 1.3
Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design
Hardware
Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth
Support standard HDMI resolutions from 640 x 480 up to 1920 x 1200
USB Virtual Media Support
Compliant with DP 1.2 and HDCP 1.3
Auto-MDIX " automatically detects cable type
Built-in 8KV/15KV ESD protection and 1KV surge protection
Slim, light and fanless design for silent operations that are energy efficient
Support connection via Gigabit Ethernet port
Rack Mountable* and Wall Mountable
Connectors
KVM Ports 1 x USB Type B Female (White)
1 x DisplayPort Female (Black)
1 x DB-9 Female (Black)
Power 1 x DC Jack (Black)
1 x 3-Pole Terminal Block Connector (Green)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.75W:22BTU
DC48V:6.97W:33BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0 "50 DegC
Storage Temperature -20 "60 DegC
Humidity 0 "95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.65 kg ( 1.43 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Flexible connections - allows multiple extender and matrix connections for Multi-Display installations and Video Wall applications
Slim, light, and fanless design
Hardware
Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth
Support standard HDMI resolutions from 640 x 480 up to 1920 x 1200
USB Virtual Media Support
Compliant with DP 1.2 and HDCP 1.3
Auto-MDIX " automatically detects cable type
Built-in 8KV/15KV ESD protection and 1KV surge protection
Slim, light and fanless design for silent operations that are energy efficient
Support connection via Gigabit Ethernet port
Rack Mountable* and Wall Mountable
Connectors
KVM Ports 1 x USB Type B Female (White)
1 x DisplayPort Female (Black)
1 x DB-9 Female (Black)
Power 1 x DC Jack (Black)
1 x 3-Pole Terminal Block Connector (Green)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.75W:22BTU
DC48V:6.97W:33BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0 "50 DegC
Storage Temperature -20 "60 DegC
Humidity 0 "95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.65 kg ( 1.43 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Cable types supported | Cat5e |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Colour depth | 24 bit |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators |
|
| Transmitter | |
| Transmitter video port type | DisplayPort |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 11.8 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 650 g |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.04 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | DisplayPort, USB |
| Ports & interfaces | |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| SKU | 646317 |
| MPN | KE9900ST-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
