ATEN Over IP PDU metering device (to connect maximum 4 Power Distribution Units (PE1216 and or PE1324) and make them IP accessable), Wired, Power, Status, AC, 100-240 V, 50/60 MHz, 2.93 W

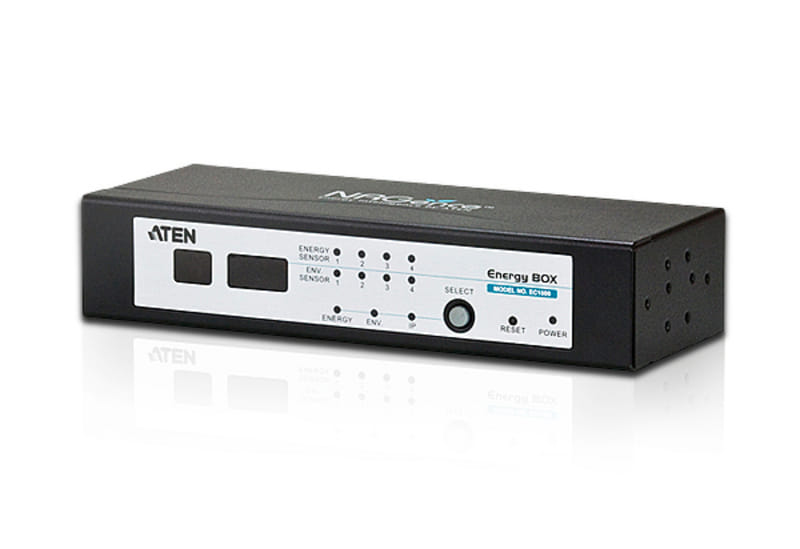

The EC1000 Energy Box is the latest evolution of NRGence ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs to ensure safe and effective energy-saving power management.
The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.
The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN's eco Sensors software.
The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.
1x EC1000 Energy Box
1x 0AD8-8605-40MG Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions
The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.
The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN's eco Sensors software.
The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.
1x EC1000 Energy Box
1x 0AD8-8605-40MG Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions
| Features | |
| Number of devices supported The amount of devices that can be used with this product. | 4 |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 ports quantity | 4 |
| LED indicators | Power, Status |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Power | |
| Power source type What the power source is. | AC |
| Input voltage The voltage (V) which is required to power the product. | 100-240 V |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 50/60 MHz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.93 W |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 9.1 kg |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 232 mm |
| Master (outer) case height | 283 mm |
| Master (outer) case net weight | 7.1 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 200 mm |
| Depth The distance from the front to the back of something. | 75.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.42 kg |
| Package weight Weight of the packaged product. | 1.68 kg |
| Package depth The distance from the front to the back of the packaging. | 265 mm |
| Package width The distance from one side of the packaging to the other. | 95 mm |
| Package height The distance from the top to the bottom of the packaging. | 220 mm |
| Packaging content | |
| Manual |
|
| SKU | 700007 |
| MPN | EC1000-AX-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
