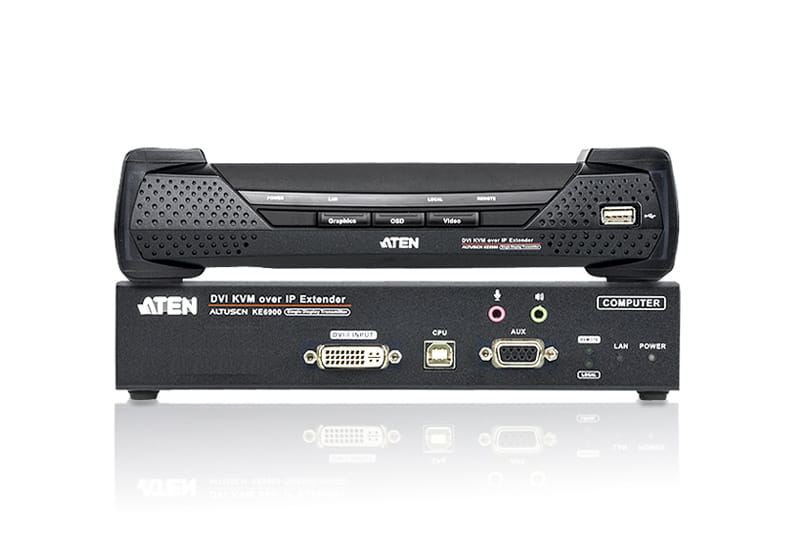

ATEN DVI Single Display KVM over IP Extender
ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen™ KE-6900 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.
Utilising expertise in Over IP KVM solutions, the KE-6900 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE-6900 Single View Extender supports one DVI display at each end.
The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).
The Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE-6900 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support, and Auto MDIX, the KE-6900 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
Specifications:
KE6900R
- Connectors:
- Virtual Media: 2 x USB Type A Female (White)
- Console Ports:
- 2 x USB Type A Female (White)
- 1 x DVI-I Female (White)
- 1 x Mini Stereo Jack (Green)
- 1 x Mini Stereo Jack (Pink)
- 1 x DB-9 Male (Black)
- Power: 1 x DC Jack (Black)
- LAN Ports: 1 x RJ-45 (Black)
- Switches:
- OSD: 1 x Pushbutton
- Video: 1 x Pushbutton
- Graphics: 1 x Pushbutton
- Reset: 1 x Semi-recessed Pushbutton
- LEDs:
- Link: 1 (Green / Orange)
- Power: 1 (Blue)
- Local: 1 (Green)
- Remote: 1 (Green)
- Emulation:
- Keyboard / Mouse: USB
- Power Consumption: DC 5V
- Video Resolution: Up to 1920 x 1200 @ 60Hz
- Environmental:
- Operating Temperature: 0–50°C
- Storage Temperature: -20–60°C
- Humidity: 0–95% RH, Non-condensing
- Physical Properties:
- Housing: Metal
- Weight: 1.25 kg
- Dimensions (L x W x H): 22.75 x 17.16 x 5.48 cm
KE6900T
- Connectors:
- Console Ports:
- 2 x USB Type A Female (White)
- 1 x DVI-I Female (White)
- 1 x Mini Stereo Jack (Green)
- 1 x Mini Stereo Jack (Pink)
- 1 x DB-9 Male (Black)
- KVM Ports:
- 1 x USB Type B Female (White)
- 1 x DVI-I Female (White)
- 1 x Mini Stereo Jack (Green)
- 1 x Mini Stereo Jack (Pink)
- 1 x DB-9 Female (Black)
- Power: 1 x DC Jack (Black)
- LAN Ports: 1 x RJ-45 (Black)
- Console Ports:
- Switches:
- Reset: 1 x Semi-recessed Pushbutton
- ?LEDs:
- Link: 1 (Green / Orange)
- Power: 1 (Blue)
- Local: 1 (Green)
- Remote: 1 (Green)
- Emulation:
- Keyboard / Mouse: USB
- Power Consumption: DC 5V
- Video Resolution: Up to 1920 x 1200 @ 60Hz
- Environmental:
- Operating Temperature: 0–50°C
- Storage Temperature: -20–60°C
- Humidity: 0–95% RH, Non-condensing
- Physical Properties:
- Housing: Metal
- Weight: 1.14 kg
- Dimensions (L x W x H): 21.50 x 16.29 x 4.18 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| RJ-45 input ports | 2 |
| DVI output ports | 2 |
| USB ports quantity | 5 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| RS-232 input ports | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 215 x 162.9 x 45.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.14 kg |
| Transmitter dimensions (WxDxH) | 227.5 x 171.6 x 54.8 mm |
| Transmitter weight | 1.25 kg |
| SKU | 234710 |
| MPN | KE6900-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
