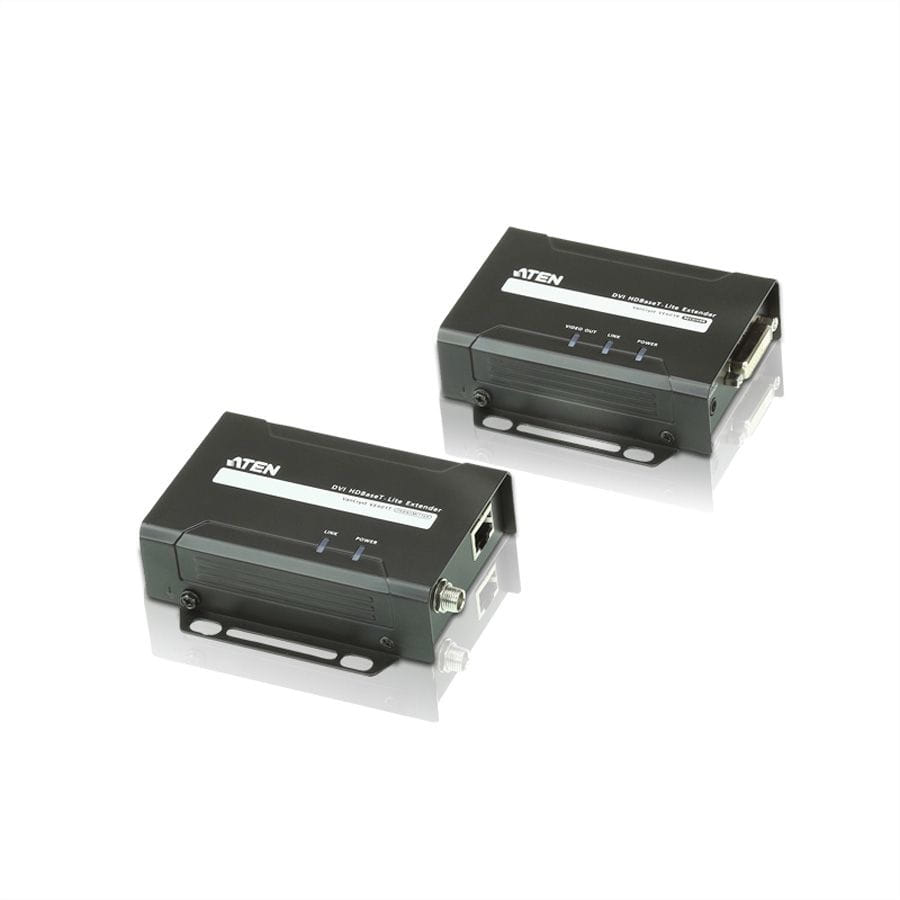

ATEN VE601-AT-U, 1920 x 1200 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
- HDBaseT Connectivity extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
- HDBaseT Connectivity extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1920 x 1200 (WUXGA) |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| DVI input ports | 1 |
| DVI output ports | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC input frequency | 60 Hz |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Power consumption (transmitter) (max) | 1.85 W |
| Power consumption (receiver) (max) | 4.23 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 87 x 103 x 30 mm |
| Receiver weight | 250 g |
| Transmitter dimensions (WxDxH) | 87 x 103 x 30 mm |
| Transmitter weight | 250 g |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| Manual |
|
| SKU | 700391 |
| MPN | VE601-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
