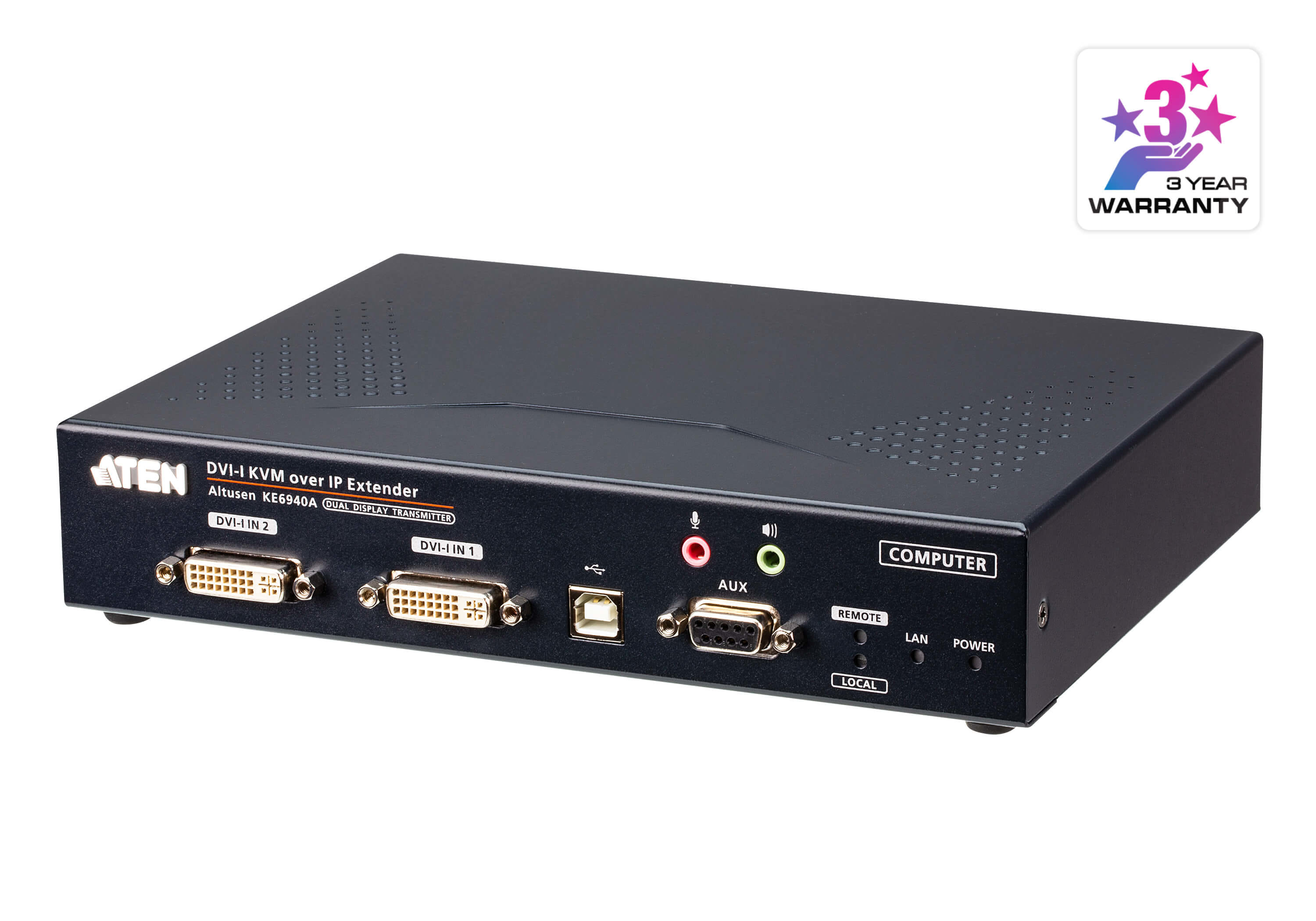

ATEN FHD Dual DVI-I KVM over IP Transmitter, Transmitter, Wired, 10000 m, Black, Metal, Link, Power
The KE6940A extender is consisted of a high performance IP-based transmitter (KE6940AT) that connects to the computer and a receiver (KE6940AR) that provides console access from a separate location. The KE6940A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users' workstation.
1x KE6940AT DVI-I Dual Display KVM over IP Transmitter
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x LIN5-35W1-W11G KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x LIN5-26W1-W11G DVI-D Cable 1.8 m
1x Foot Pad Set (4 pcs.)
1x KC06-0040-200G Mounting Kit
1x User Instructions
1x KE6940AT DVI-I Dual Display KVM over IP Transmitter
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x LIN5-35W1-W11G KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x LIN5-26W1-W11G DVI-D Cable 1.8 m
1x Foot Pad Set (4 pcs.)
1x KC06-0040-200G Mounting Kit
1x User Instructions
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators | Link, Power |
| Transmitter | |
| Transmitter video port type | DVI-I |
| Transmitter local video port |
 |
| Transmitter local video port type | DVI-I |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 12.2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 21.5 cm |
| Transmitter depth | 16.3 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.17 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 207 mm |
| Package depth The distance from the front to the back of the packaging. | 414 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 2.53 kg |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.9 kg |
| Packaging content | |
| AC adapter included |
|
| Quick installation guide |
|
| Ports & interfaces | |
| USB port type | USB Type-A |
| RJ-45 ports quantity | 1 |
| PC Audio out |
|
| Logistics data | |
| Master (outer) case net weight | 5.7 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 427 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 8.35 kg |
| Products per master (outer) case | 3 pc(s) |
| SKU | 646023 |
| MPN | KE6940AT-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
