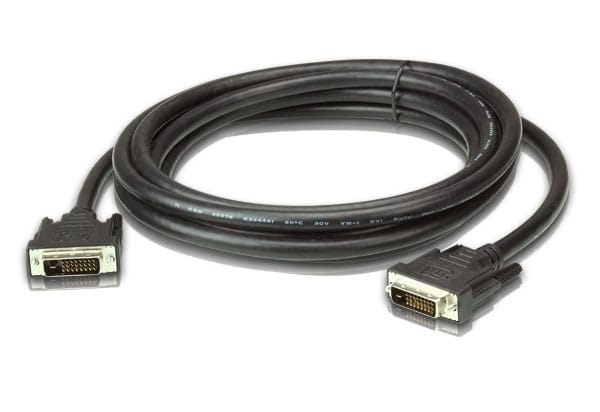

ATEN Dual-link DVI Cable provides superior transmission of WQXGA video through an advanced tinned copper architecture. Our DVI cables support long-distance connections by safeguarding transmission quality and image clarity. We offer DVI cable at lengths of 3 to 10 meters with resolutions up to 2560 x 1600 @ 60Hz.
- High performance dual-link DVI cables
- Supports dual-link DVI-D signals up to 2560 x 1600 @ 60Hz
- Available in lengths from 3 to 10 m
- RoHS-compliant
- Ideal for ATEN dual-link DVI solutions
| Features | |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | DVI-D |
| Connector 2 This is the second connector in the device. | DVI-D |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 pinout | 24+1 |
| Connector 2 pinout | 24+1 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 2560 x 1600 (WQXGA) |
| Dual Link DVI A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible. |
 |
| AWG wire size | 28 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable material The material e.g. copper, steel from which the cable is made. | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 8.6 mm |
| SKU | 262885 |
| MPN | 2L-7D03DD |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
