Aten DisplayPort HDBaseT-Lite Transmitter With US Wall Plate
Item No:
700370
MPN:
VE1901AUST-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN DisplayPort HDBaseT Lite Transmitter with US Wall Plate / PoH, 4096 x 2160 pixels, AV transmitter, 70 m, Wired, Silver, HDCP

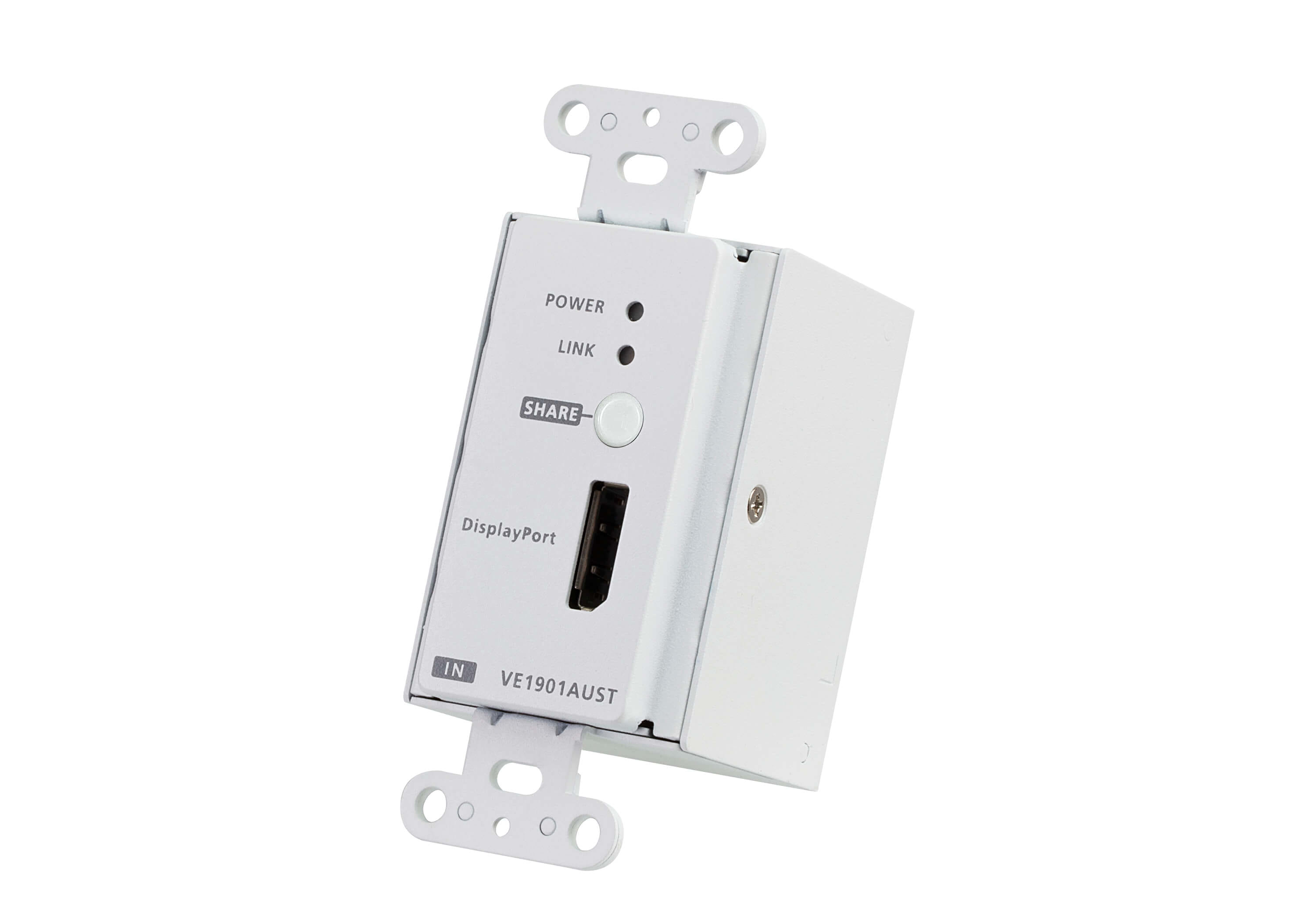

The ATEN VE1901AUST DisplayPort HDBaseT Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L 2910 Cat 6 cable, ensuring users to stabilize DisplayPort signal transmission with support of Deep Color and embedded HD lossless audio formats. During high quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti jamming technology and offer a reliable signal extension.
The VE1901AUST can be easily mounted in a 1 gang junction box with US wall plate, concealing bulky cable setups and presenting the needed information in sight. In addition, with built in PoH (Power over HDBaseT) function, the VE1901AUST receives power supply from a connected PoH PSE (Power Source Equipment) supported receiver and streamlines complex power line deployment.
With the share function, the VE1901AUST can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1901AUST is ideal for use in meeting rooms, digital educational environments or any application requiring stable high quality transmission and effortless installation.
The VE1901AUST can be easily mounted in a 1 gang junction box with US wall plate, concealing bulky cable setups and presenting the needed information in sight. In addition, with built in PoH (Power over HDBaseT) function, the VE1901AUST receives power supply from a connected PoH PSE (Power Source Equipment) supported receiver and streamlines complex power line deployment.
With the share function, the VE1901AUST can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1901AUST is ideal for use in meeting rooms, digital educational environments or any application requiring stable high quality transmission and effortless installation.
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Electrostatic Discharge (ESD) protection | 15 kV |
| LED indicators | Link, Power |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 297 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Firmware upgradeable |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 output ports | 1 |
| DisplayPorts in | 1 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.97 W |
| Power consumption (max) The maximum amount of power used by the device. | 3.71 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 44.4 mm |
| Depth The distance from the front to the back of something. | 104.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 50 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 210 g |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Packaging content | 1x 5-pin terminal block 1x faceplate 2x flat head screws |
| SKU | 700370 |
| MPN | VE1901AUST-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
