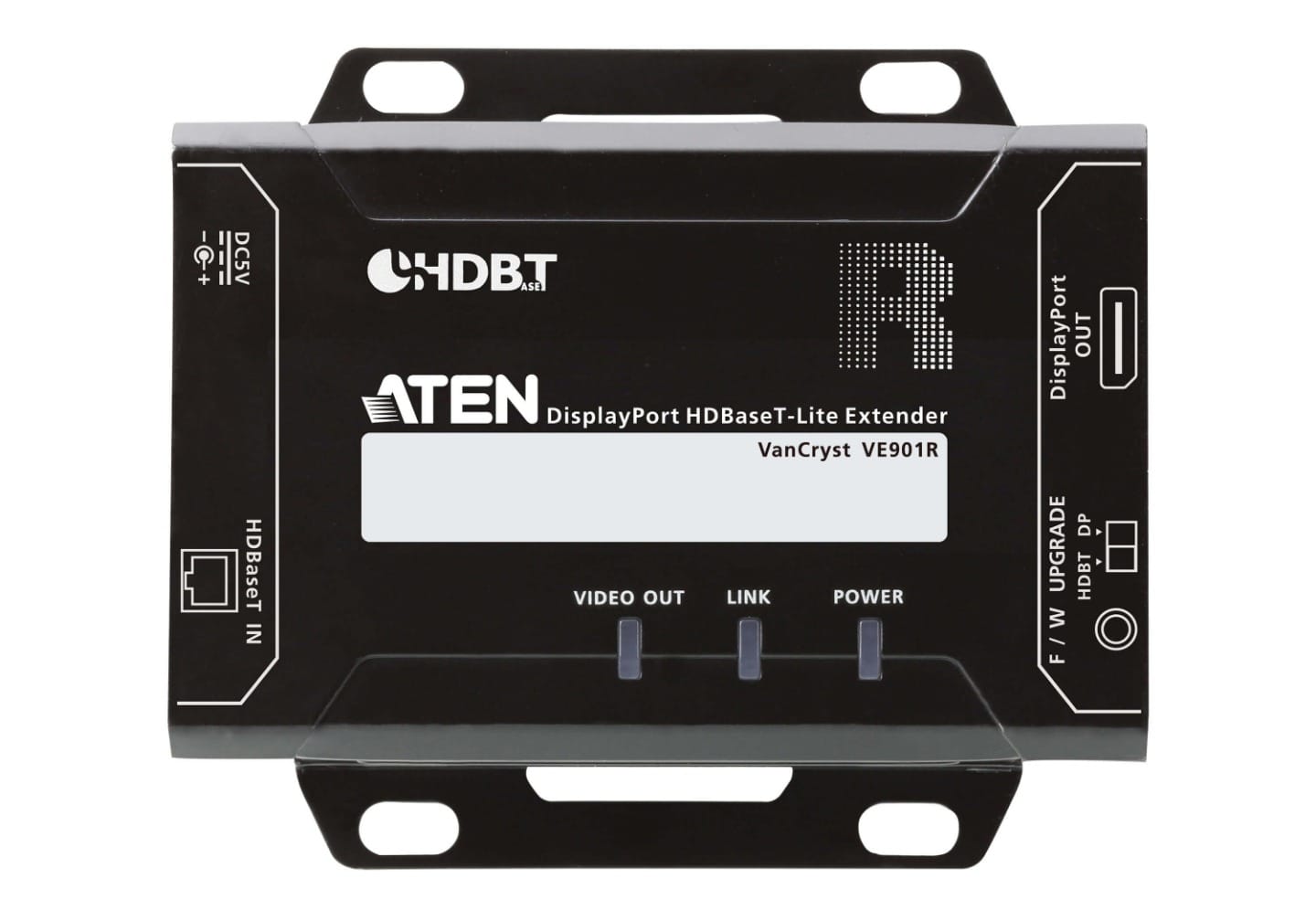

Aten DisplayPort HDBaseT-Lite Receiver, supports 1080p @ 70m and 4096 x 2160 @ 30 HZ (4:4:4) @ 40m over Cat 6A
The VE-901 Display Port HDBaseT-Lite Extender is able to extend a Display Port display up to 70 m using a Cat 5e/6/6a cable. This combination of ATEN and HDBaseT
| Features | |
| Type Characteristics of the device. | AV receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080p, 2160p |
| Bandwidth | 10.2 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDBaseT certified |
|
| Ports & interfaces | |
| HDBaseT port |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 270 g |
| Receiver dimensions (WxDxH) | 87 x 100.6 x 30 mm |
| Receiver weight | 270 g |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 700469 |
| MPN | VE901R-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
