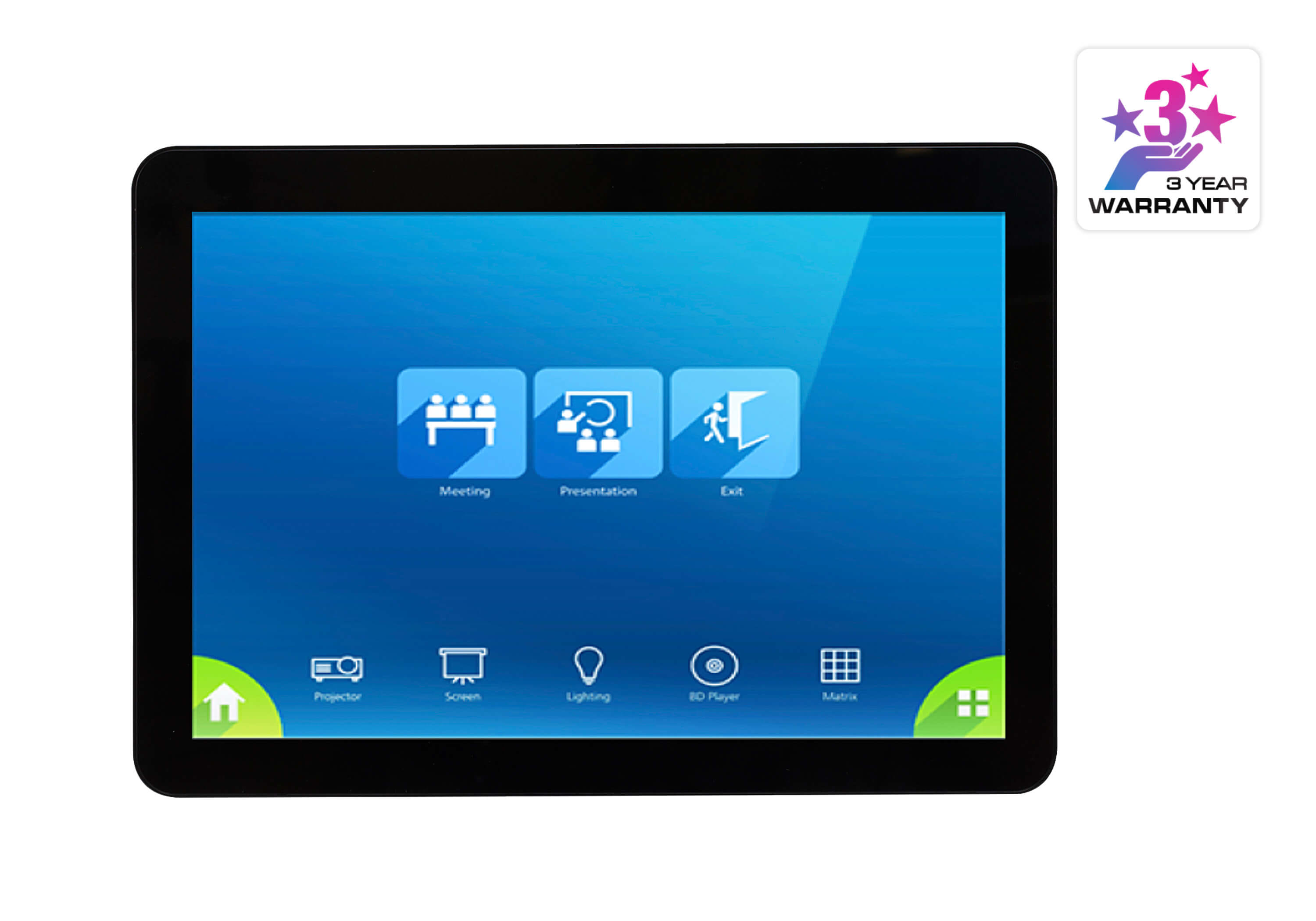

Aten VKT100 10.1" Touch Panel
Item No:
700505
MPN:
VKT100-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VKT100 AT, 25.6 cm (10.1"), 1280 x 800 pixels, LCD, Capacitive, 16:9, 8 bit
The ATEN VKT100 is a 10.1 Touch Panel, offering a high performance quad core processor and capacitive multi touch TFT LCD screen. Natively installed with the ATEN Control System app, the touch panel is compatible with ATEN Control Box and Control Pad.
The VKT100 supports Power over Ethernet (PoE), which allows power and data to be carried over a single Ethernet cable to the touch panel, and makes it perfect to support the specific environments with those applications required solid and wired connection to ensure stability and high security demands.
It is an ideal solution for the high security area such as militaries, hospitals, government offices, and corporate board rooms. The touch panel can be desk mounted using the tabletop kit (ATEN VKTA101) or any standard VESA 75 x 75 mm mounts.
The ATEN Control System is a standard Ethernet based management system consisting of controllers, expansion boxes, configurator, and control interfaces that connects all hardware devices to provide centralized control of devices directly and effortlessly from any mobile device or ATEN Control System interface. Now we have the VKT100 touch panel join the ATEN Control System family to make our control system solution complete and that meets the demanding requirements for the target applications.
The VKT100 supports Power over Ethernet (PoE), which allows power and data to be carried over a single Ethernet cable to the touch panel, and makes it perfect to support the specific environments with those applications required solid and wired connection to ensure stability and high security demands.
It is an ideal solution for the high security area such as militaries, hospitals, government offices, and corporate board rooms. The touch panel can be desk mounted using the tabletop kit (ATEN VKTA101) or any standard VESA 75 x 75 mm mounts.
The ATEN Control System is a standard Ethernet based management system consisting of controllers, expansion boxes, configurator, and control interfaces that connects all hardware devices to provide centralized control of devices directly and effortlessly from any mobile device or ATEN Control System interface. Now we have the VKT100 touch panel join the ATEN Control System family to make our control system solution complete and that meets the demanding requirements for the target applications.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 25.6 cm (10.1") |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 800 pixels |
| Touchscreen technology | Capacitive |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 16:9 |
| Colour depth | 8 bit |
| Contrast ratio | 800:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 85° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 85° |
| Performance | |
| Mounting type Type of mounting e.g. wall mounting. | Wall/Tabletop |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 8000 MB |
| RAM capacity | 2000 MB |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic, Polycarbonate (PC) |
| VESA mounting |
|
| Ports & interfaces | |
| USB 2.0 Type-A ports quantity | 1 |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Input voltage The voltage (V) which is required to power the product. | 48 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 55 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.8 mm |
| Depth The distance from the front to the back of something. | 252.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 620 g |
| SKU | 700505 |
| MPN | VKT100-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
