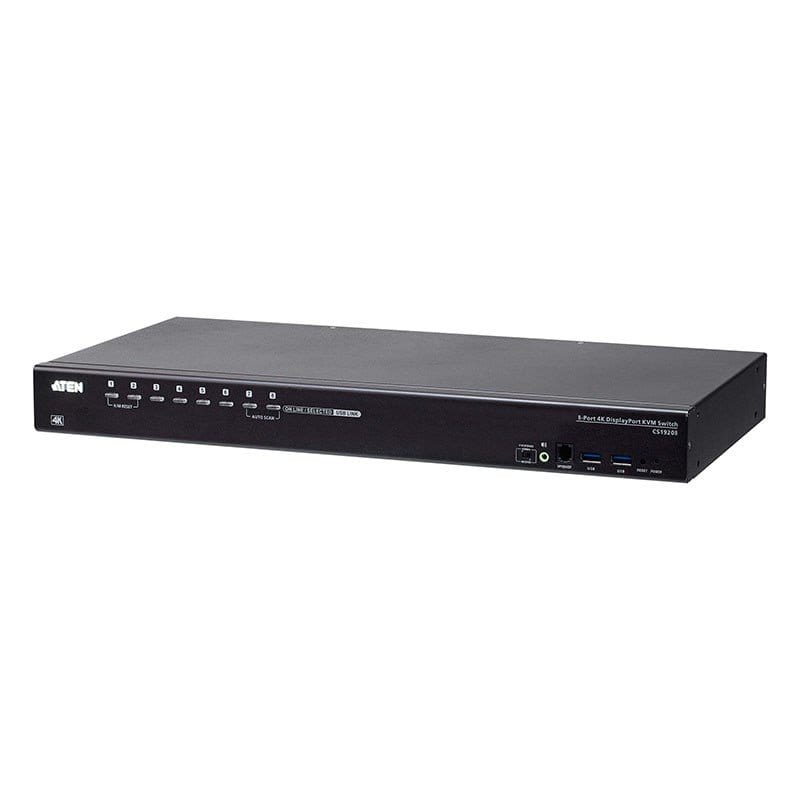

Console Ports: 2x USB-A, HDMI, DisplayPort 2x 3.5mm Audio Jack - KVM Ports: 8x USB 3.1 Gen1 Type-B, 8x 3.5mm Audio Jack - Computer Connections: 8 (Direct), Up to 128 (via Cascade) - Video Resolution: Up to 4096x2160 @60Hz - Keyboard/Mouse Emulation: USB - I/O: RJ-11, 2x USB-A 3.1 Gen1
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub |
 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 9 |
| Number of microphone inputs | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| DC input voltage | 12 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18.44 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432.4 mm |
| Depth The distance from the front to the back of something. | 214.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.75 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 133 mm |
| Package depth The distance from the front to the back of the packaging. | 499 mm |
| Package height The distance from the top to the bottom of the packaging. | 324 mm |
| Package weight Weight of the packaged product. | 4.83 kg |
| Packaging content | |
| Quick installation guide |
|
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 11.2 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 15.6 kg |
| Products per master (outer) case | 3 pc(s) |
| SKU | 505949 |
| MPN | CS19208-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
