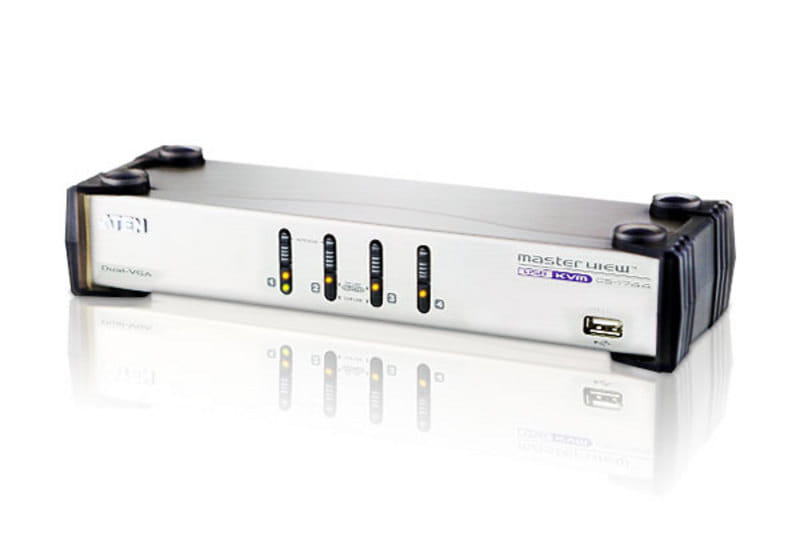

Aten CS1744, 2048 x 1536 pixels, 1.25 W, White
Features
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 4-Port USB Dual-View KVMP Switch
- 4x 2L-5202A-1 KVM Cable (Audio/Video)
- 4x 2L-5202U USB KVM Cables
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 4-Port USB Dual-View KVMP Switch
- 4x 2L-5202A-1 KVM Cable (Audio/Video)
- 4x 2L-5202U USB KVM Cables
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
| Ports & interfaces | |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Number of microphone inputs | 1 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.25 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 342.9 mm |
| Package depth The distance from the front to the back of the packaging. | 101.6 mm |
| Package height The distance from the top to the bottom of the packaging. | 209.6 mm |
| Other features | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| I/O ports An interface on a device to which you can connect another device. | 1 x RJ11 Socket |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 2000, Windows XP, Windows Vista LINUX Mac Sun FreeBSD |
| Power requirements | DC 5V |
| Case or master carton dimensions (W x D x H) | 342.9 x 520.7 x 241.3 mm |
| SKU | 445967 |
| MPN | CS1744C-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
