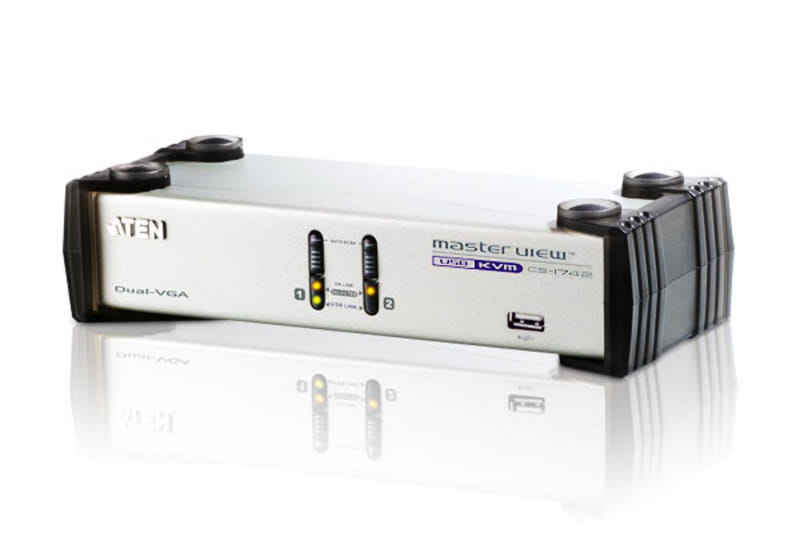

Aten CS1742, 1.25 W, White
Features
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 2-Port USB Dual-View KVMP Switch
- 2x 2L-5202A-1 KVM Cable (Audio/Video)
- 2x 2L-5202U USB KVM Cables (USB/Video)
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 2-Port USB Dual-View KVMP Switch
- 2x 2L-5202A-1 KVM Cable (Audio/Video)
- 2x 2L-5202U USB KVM Cables (USB/Video)
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
| Ports & interfaces | |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.25 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.6 kg |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 222.2 x 98.4 x 266.7 mm |
| Package width The distance from one side of the packaging to the other. | 222.2 mm |
| Package depth The distance from the front to the back of the packaging. | 98.4 mm |
| Package height The distance from the top to the bottom of the packaging. | 266.7 mm |
| Package weight Weight of the packaged product. | 2.18 kg |
| Other features | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| I/O ports An interface on a device to which you can connect another device. | 2 x USB Type A Female 2 X HDB15 Female 1 x Audio 1 x Earphone Jack Female 1 x Microphone Jack Female 1 x RJ11 Socket |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 75 x 200 x 42 mm |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 2 |
| Power requirements | DC 5V |
| Case or master carton dimensions (W x D x H) | 320.7 x 292.1 x 248.4 mm |
| Weight (imperial) | 1.59 kg (3.5 lbs) |
| SKU | 445964 |
| MPN | CS1742C-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
