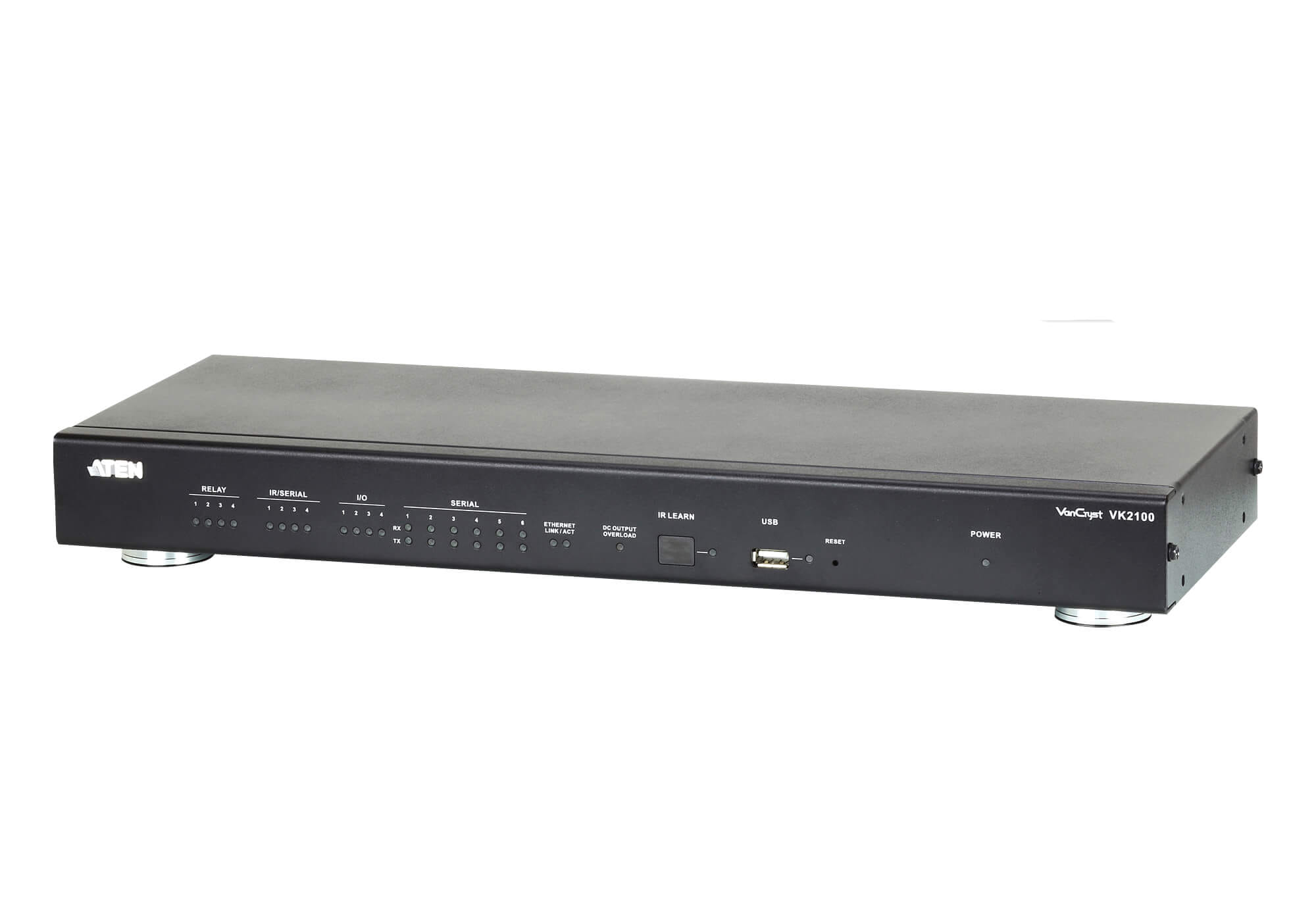

Aten Controller System-Control Box
Item No:
700487
MPN:
VK2100K2-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VK2100K2-AT-U, Black, Metal, ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH, 10,100 Mbit/s, SSH, RS-232/422/485
The ATEN Control System, incorporating the ATEN Control Box (VK2100 or VK1100), the ATEN Configurator (VK6000) and the ATEN Control System App, is a standard Ethernet-based management system that connects all the hardware devices in a room or large facility to provide centralized control directly and effortlessly via a mobile device and tablet computer. The VK2100 Control Box works as the main controller that provides connectivity to all the hardware devices found in a room. After connecting the hardware, the VK6000 Configurator software provides simple setup of the devices with easy step by step configuration. The ATEN Control System App then connects you to the VK2100 Control Box from any iOS, Android or Windows mobile device / tablet computer which empowers you with mobility to control all the hardware devices, in different rooms, whenever and however you like.
1x VK2100 ATEN Control Box
1x Mounting Kit
1x Power Cord
9x Terminal Blocks
1x User Instructions
1x VK2100 ATEN Control Box
1x Mounting Kit
1x Power Cord
9x Terminal Blocks
1x User Instructions
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Enclosure material | Metal |
| LED indicators |
 |
| Performance | |
| Control display unit |
 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SSH |
| Ports & interfaces | |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Serial interface type | RS-232/422/485 |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Reset button |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 4.8 W |
| Input voltage The voltage (V) which is required to power the product. | 100-240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50-60 Hz |
| DC input voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 437.2 mm |
| Depth The distance from the front to the back of something. | 163.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.08 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 247 mm |
| Package depth The distance from the front to the back of the packaging. | 556 mm |
| Package height The distance from the top to the bottom of the packaging. | 153 mm |
| Package weight Weight of the packaged product. | 4 kg |
| Packaging content | |
| Manual |
|
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| SKU | 700487 |
| MPN | VK2100K2-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
