ATEN VK2100A, Black, Metal, 143 BTU/h, 1 GB, SDRAM, 8 GB

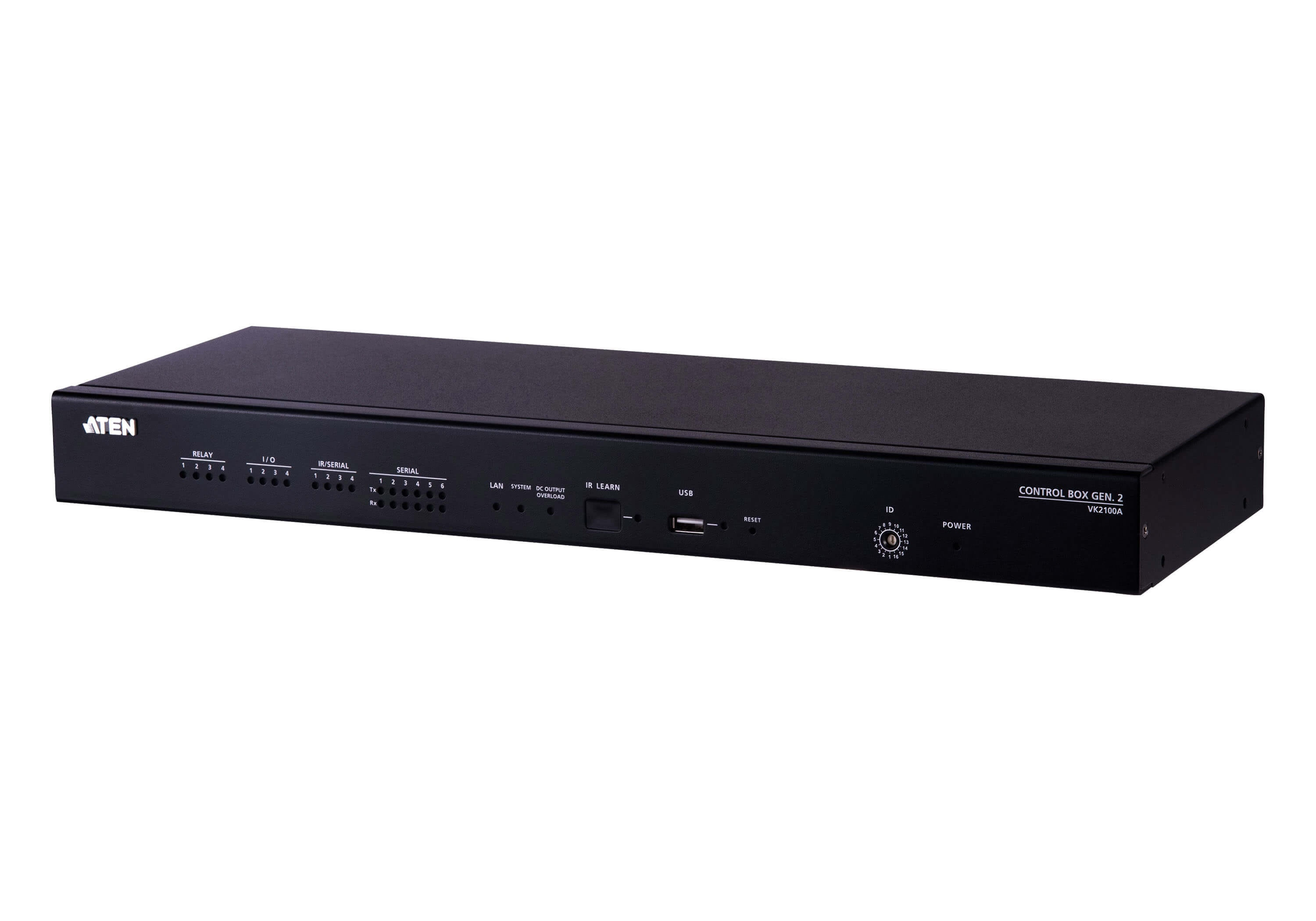

VK2100A ATEN s 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 1GB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon , a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.
The VK2100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK2100A is a part of ATEN s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.
The VK2100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK2100A is a part of ATEN s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defi ned GUIs from any mobile device, ATEN Keypad, and Touch Panel.
| Features | |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| On/off switch The button which is pressed to switch the device on or off. |
 |
| LED indicators |
|
| Reset button |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Heat dissipation The heat generated by the power supply. | 143 BTU/h |
| Number of relay pins | 8 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 1 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | SDRAM |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 8 GB |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | Flash |
| Network | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 1 |
| USB port type | USB Type-A |
| Number of analog I/O pins | 5 |
| IR connectivity |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Serial interface type | RS-232, RS-232/422/485 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 6.5 W |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5.2 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply location Where the power supply is positioned. | Internal |
| Packaging content | |
| Terminal block included |
|
| License quantity The number of software licenses, which are contracts which allow a business or individual to use a piece of software. | 2 license(s) |
| Manual |
|
| Power cord included |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 163.2 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.59 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 131 mm |
| Package depth The distance from the front to the back of the packaging. | 540 mm |
| Package height The distance from the top to the bottom of the packaging. | 233 mm |
| Package weight Weight of the packaged product. | 3.51 kg |
| Package type The type of product package e.g. box. | Box |
| SKU | 700484 |
| MPN | VK2100A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
