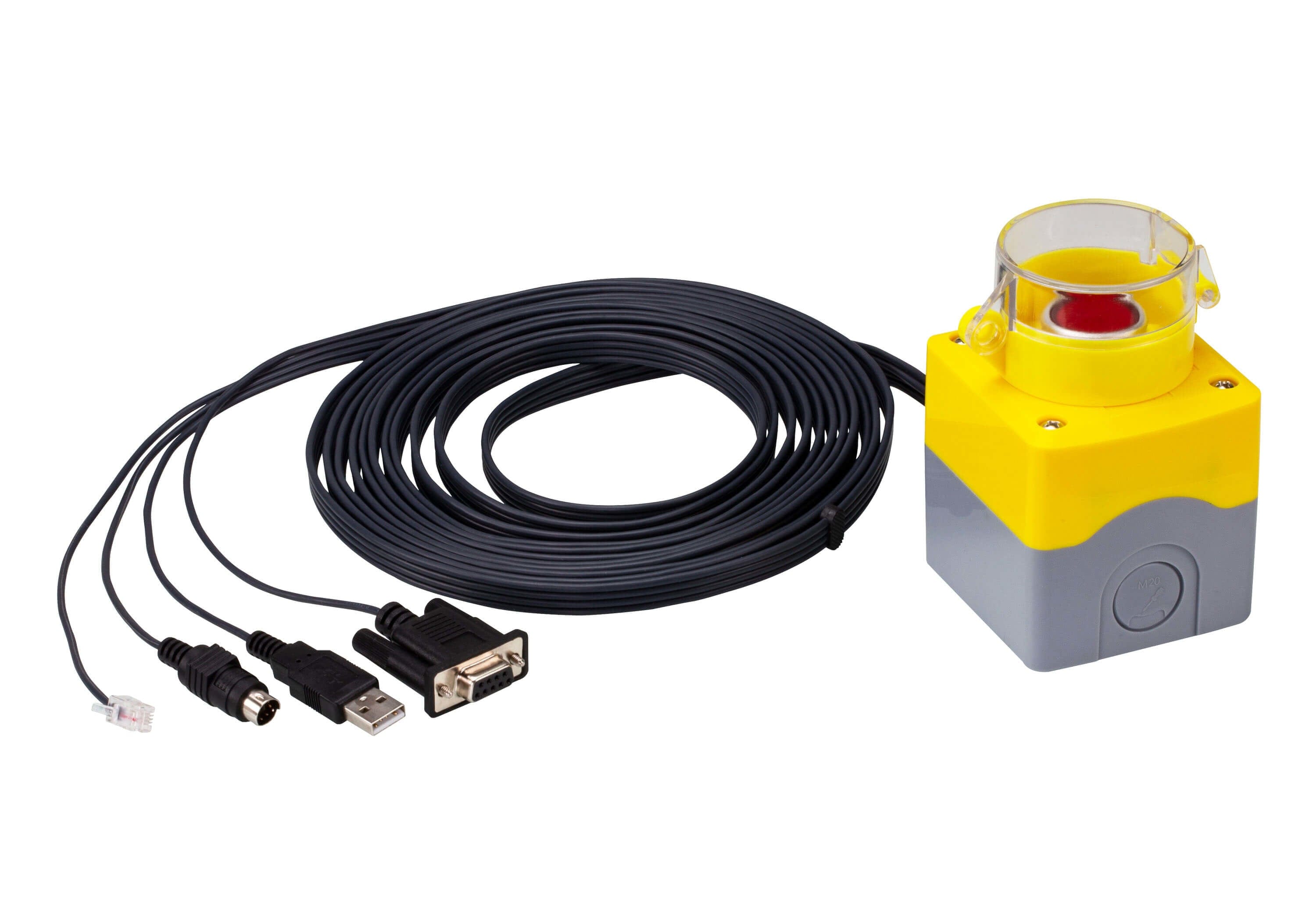

Aten CN8000A / CN8600 KVM over IP Access Control Box

The 2XRT 0015G KVM over IP Access Control Box allows users to enable or disable remote over IP control privilege by simply pressing a control button. When installed with the KVM over IP Series1 Transmitter, the 2XRT 0015G allows users to quickly and effortlessly enable or disable control privilege from the Receiver, making operations only permitted to the user at the local console. 2

It s fast and easy to set up the 2XRT 0015G. Simply plug the 2XRT 0015G s cables to the KVM over IP transmitter3. There is no need to install software or configure devices " just plug and play. In addition, the cable length of the 2XRT 0015G reaches 5 meters, enabling connection to the transmitter over longer distances for more flexible installation.

Note:
1. Please scroll down for more about compatible products.
2. The slide switch on the rear side of the KVM over IP Transmitter needs to be switched to the RS 232 Config / Access Control position.
3. Connect the RS 232 connector of the 2XRT 0015G to the RS 232 Port of the KVM over IP Transmitter and connect the USB connector of the 2XRT 0015G to a computer for USB bus power supply.
