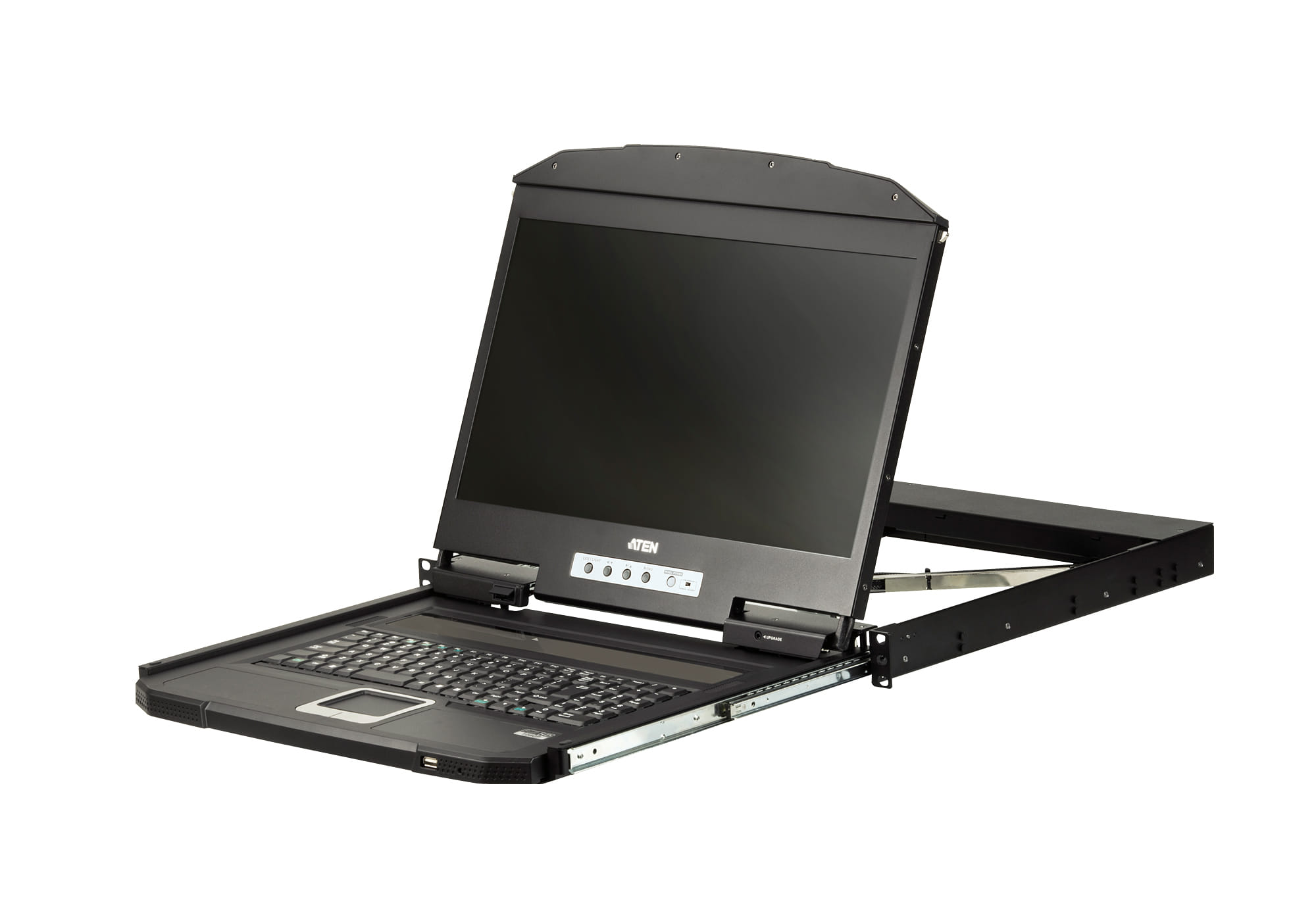

Aten CL3700NX, 1366 x 768 pixels, WXGA, Rack mounting, 13.5 W, 1U, Black
Space Utility Optimization
Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock enables the console drawer to remain securely locked away in position when not in use
Remarkable Video Experience
Supports HDMI video input
18.5" LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 18.5" LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX)
External console supports input video resolutions up to 1920 x 1200 @ 60Hz
Installation Flexibility
Standard rack mount kit included
Optional Easy Installation Rack Mounting Kit available*
No software required
Firmware upgradable
Supports hot-plugging
Reliability and Operational Versatility
Supports an external console with USB / HDMI connectors
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Console selection via hotkey
Standard 105-key keyboard
Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Turkish
The design complies to the UL 60950-1 and CAN/CSA standards
* The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information
Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock enables the console drawer to remain securely locked away in position when not in use
Remarkable Video Experience
Supports HDMI video input
18.5" LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 18.5" LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX)
External console supports input video resolutions up to 1920 x 1200 @ 60Hz
Installation Flexibility
Standard rack mount kit included
Optional Easy Installation Rack Mounting Kit available*
No software required
Firmware upgradable
Supports hot-plugging
Reliability and Operational Versatility
Supports an external console with USB / HDMI connectors
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Console selection via hotkey
Standard 105-key keyboard
Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Turkish
The design complies to the UL 60950-1 and CAN/CSA standards
* The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 1 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| Console ports | USB A |
| Console USB ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1366 x 768 pixels |
| Video bandwidth | 60 Hz |
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 47 cm (18.5") |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 13.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 43 mm |
| Depth The distance from the front to the back of something. | 477 mm |
| Height The measurement of the product from head to foot or from base to top. | 42.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.03 kg |
| Packaging content | |
| Cables included | AC, KVM |
| Manual |
|
| AC adapter included |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 441332 |
| MPN | CL3700NX-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
