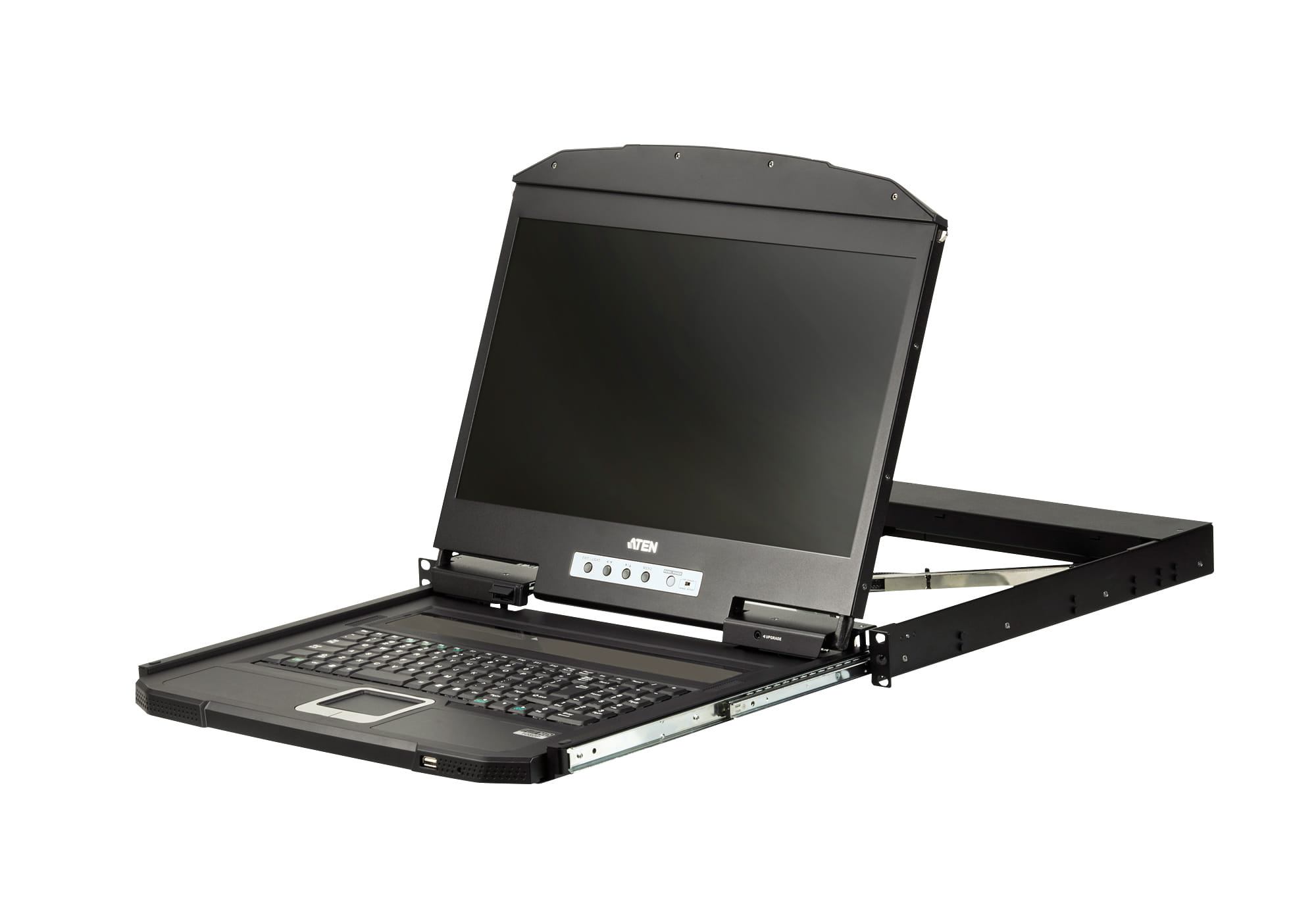

Aten CL3100NX, 1366 x 768 pixels, WXGA, Rack mounting, 1U, 14.1 W, Black
Space Utility Optimization
Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock enables the console drawer to remain securely locked away in position when not in use
Reliability and Operational Versatility
Supports VGA video input; supports an external console with USB / VGA connectors
18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
External console supports input video resolutions up to 1920 x 1200 @ 60Hz
Audio support for connecting speakers
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Console selection via hotkey
Standard 105-key keyboard
Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Turkish
The design complies to the UL 60950-1 and CAN/CSA standards.
Installation Flexibility
Standard rack mount kit included
Optional Easy Installation Rack Mounting Kit available*
No software required
Firmware upgradable
Supports hot-plugging
Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock enables the console drawer to remain securely locked away in position when not in use
Reliability and Operational Versatility
Supports VGA video input; supports an external console with USB / VGA connectors
18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
External console supports input video resolutions up to 1920 x 1200 @ 60Hz
Audio support for connecting speakers
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Console selection via hotkey
Standard 105-key keyboard
Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Turkish
The design complies to the UL 60950-1 and CAN/CSA standards.
Installation Flexibility
Standard rack mount kit included
Optional Easy Installation Rack Mounting Kit available*
No software required
Firmware upgradable
Supports hot-plugging
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 47 cm (18.5") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1366 x 768 pixels |
| Display The description of display that can includes display type, resolution, size etc. | TFT-LCD |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 250 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 160° |
| On Screen Display (OSD) |
 |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.3 x 0.3 mm |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 16:9 |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 5 ms |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal, Plastic |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Number of computers controlled The amount of computers controlled by this device. | 1 |
| LED indicators |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Ports & interfaces | |
| I/O ports An interface on a device to which you can connect another device. | 3.5 mm Audio Jack, SPHD |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| USB 2.0 Type-A ports quantity | 3 |
| Keyboard | |
| Hot keys |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 14.1 W |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 477 mm |
| Height The measurement of the product from head to foot or from base to top. | 42.8 mm |
| Depth The distance from the front to the back of something. | 480.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10.2 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 12.1 kg |
| Package width The distance from one side of the packaging to the other. | 612 mm |
| Package depth The distance from the front to the back of the packaging. | 658 mm |
| Package height The distance from the top to the bottom of the packaging. | 135 mm |
| Packaging content | |
| Cables included | AC, KVM |
| Manual |
|
| AC adapter included |
|
| Logistics data | |
| Master (outer) case net weight | 10.2 kg |
| Master (outer) case width | 612 mm |
| Master (outer) case length | 658 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 12.1 kg |
| Products per master (outer) case | 1 pc(s) |
| SKU | 441320 |
| MPN | CL3100NX-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
