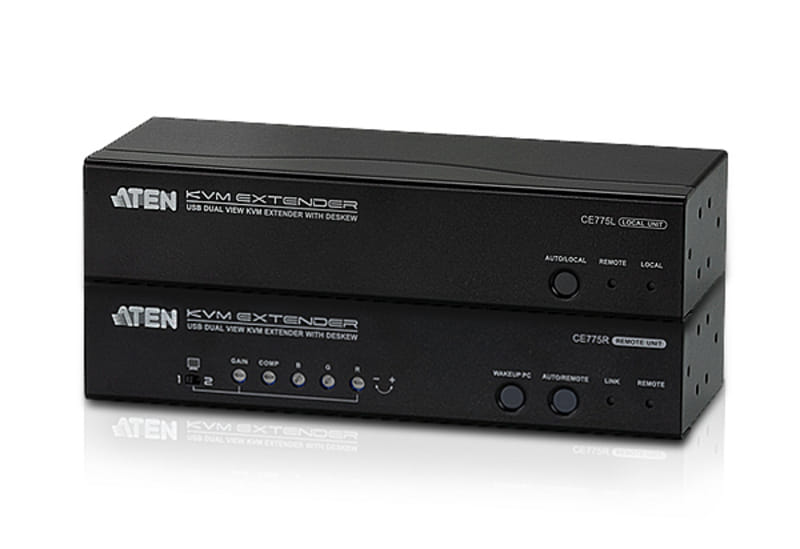

Aten CE775, 1920 x 1200 pixels, AV transmitter & receiver, 300 m, Black
ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.
Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.
- Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
- Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Deskew Function automatically synchronizes the time delay of RGB signals to compensate for distance
- PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
- Superior video quality 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)
- Gain/Compensation Control adjusts signal strength in order to compensate for distance
- On Screen Display conveniently adjust video quality with the intuitive OSD menu system
- RS-232 Channel allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Sun/Mac keyboard support and emulation *
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.
- Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
- Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Deskew Function automatically synchronizes the time delay of RGB signals to compensate for distance
- PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
- Superior video quality 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)
- Gain/Compensation Control adjusts signal strength in order to compensate for distance
- On Screen Display conveniently adjust video quality with the intuitive OSD menu system
- RS-232 Channel allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Sun/Mac keyboard support and emulation *
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 300 m |
| Audio system System used to play music or speech. | Multichannel |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 4 |
| Audio input The type of audio input that the device requires, and the connection needed. | 3.5mm |
| Audio output The type of audio output that the device produces, and the connector(s). | 3.5mm |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5.3 V |
| External power adapter |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 75.8 x 200 x 42 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 690 g |
| Technical details | |
| Connector type The type of connector e.g. USB. | USB, SPHD-17, RS-232 |
| SKU | 442937 |
| MPN | CE775-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
