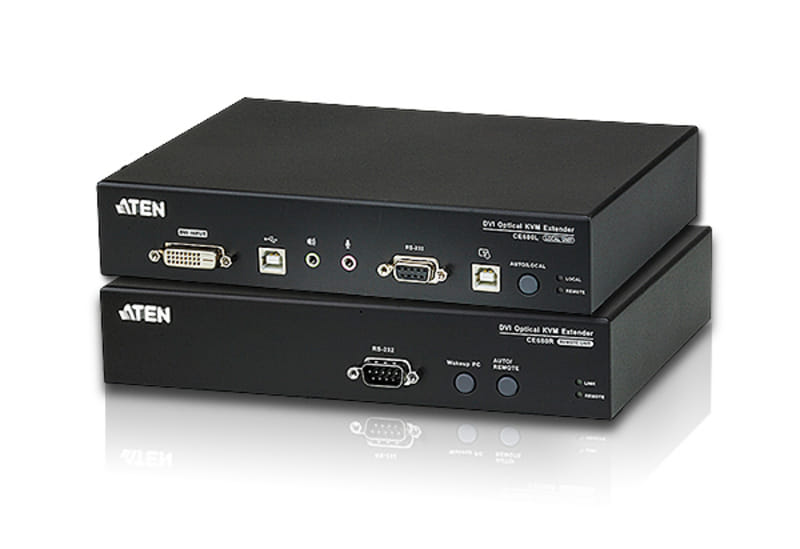

Aten CE680, Rack mounting, 10.2 W, 1U, Black
The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances - up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.
In addition to extending keyboard and mouse control, the CE680 also transfers RS-232 signals (up to 115 kbps) and USB signals in both directions, with ports for both, allowing you to connect serial devices, such as barcode scanners; or USB devices such as touchscreens, which can provide access to a computer connected at the local site - up to 600 m away.
The CE680 allows access to a computer from both the local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of the newest fiber optic cable technology to connect the local and remote units; providing easy installation and a very long 600 m extension of KVM DVI signals.
- Allows access to a computer or KVM installation from a local / remote console
- Supports DVI-D interface and allows transmission of DVI single-link signals
- Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m*
- Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Uses one fiber optic cable to connect the local and remote units
- HDCP compatible
- RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
- PC Wakeup support - use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
- Audio Enabled - supports stereo speakers and microphone
- Rack mountable
In addition to extending keyboard and mouse control, the CE680 also transfers RS-232 signals (up to 115 kbps) and USB signals in both directions, with ports for both, allowing you to connect serial devices, such as barcode scanners; or USB devices such as touchscreens, which can provide access to a computer connected at the local site - up to 600 m away.
The CE680 allows access to a computer from both the local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of the newest fiber optic cable technology to connect the local and remote units; providing easy installation and a very long 600 m extension of KVM DVI signals.
- Allows access to a computer or KVM installation from a local / remote console
- Supports DVI-D interface and allows transmission of DVI single-link signals
- Superior video quality of up to 1920 x 1200 @ 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m*
- Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Uses one fiber optic cable to connect the local and remote units
- HDCP compatible
- RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
- PC Wakeup support - use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
- Audio Enabled - supports stereo speakers and microphone
- Rack mountable
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 600 m |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920 x 1200 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators | Link, Power |
| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| Receiver | |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| Power | |
| AC adapter output voltage | 5.3 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 21.5 cm |
| Transmitter depth | 16.3 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.1 kg |
| Receiver width | 21.5 cm |
| Receiver depth | 16.3 cm |
| Receiver height | 4.18 cm |
| Receiver weight | 1.1 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 247 mm |
| Package depth The distance from the front to the back of the packaging. | 556 mm |
| Package height The distance from the top to the bottom of the packaging. | 153 mm |
| Package weight Weight of the packaged product. | 3.91 kg |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.98 kg |
| Packaging content | |
| Manual |
|
| Quick installation guide |
|
| Logistics data | |
| Master (outer) case net weight | 2.98 kg |
| Master (outer) case width | 247 mm |
| Master (outer) case length | 556 mm |
| Master (outer) case height | 153 mm |
| Master (outer) case gross weight | 3.91 kg |
| Products per master (outer) case | 1 pc(s) |
| SKU | 442931 |
| MPN | CE680-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
