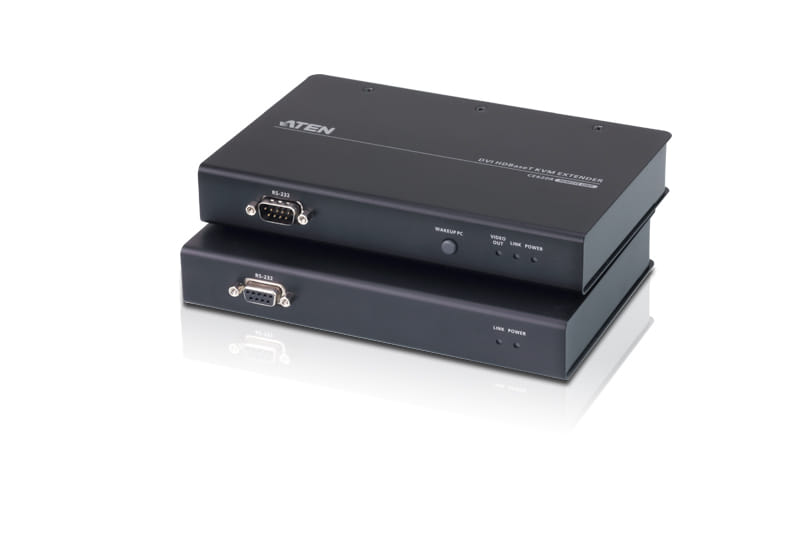

Aten CE620, Transmitter & receiver, Wired, 100 m, Cat5e,Cat6,Cat6a, Black, Metal
The ATEN CE620 USB DVI HDBaseT 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
HDBaseT 2.0 connectivity technology
- Extends video, audio, USB and RS-232 signals via a single Ethernet cable
- EDID Buffer for smooth power-up and the highest quality display
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Long distance superior video quality
- HDBaseT Standard mode up to 1920 x 1200 @ 100 m
- HDBaseT Long Reach mode up to 1920 x 1080 @ 150 m
- Long Reach mode switch " switches between HDBaseT Standard and Long Reach modes in a snap
- Integrated USB 2.0 ports " ensuring fast transmission speeds for peripherals
- Supports 2-channel PCM digital audio " ensuring highquality audio transmissions
- Supports PC Wakeup function via pushbutton or hotkey
- Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
HDBaseT 2.0 connectivity technology
- Extends video, audio, USB and RS-232 signals via a single Ethernet cable
- EDID Buffer for smooth power-up and the highest quality display
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Long distance superior video quality
- HDBaseT Standard mode up to 1920 x 1200 @ 100 m
- HDBaseT Long Reach mode up to 1920 x 1080 @ 150 m
- Long Reach mode switch " switches between HDBaseT Standard and Long Reach modes in a snap
- Integrated USB 2.0 ports " ensuring fast transmission speeds for peripherals
- Supports 2-channel PCM digital audio " ensuring highquality audio transmissions
- Supports PC Wakeup function via pushbutton or hotkey
- Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Cable types supported | Cat5e,Cat6,Cat6a |
| Firmware upgradeable |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Transmitter | |
| Transmitter local video port |
|
| Transmitter local video port type | DVI-D |
| Receiver | |
| Receiver local video port type | DVI-D |
| Power | |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 5.6 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.3 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.3 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 640 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | DVI |
| Manual |
|
| SKU | 442925 |
| MPN | CE620-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
