Aten CE611, Transmitter & receiver, Wired, 100 m, Cat6,Cat6a, 1920 x 1200 pixels, 1920x1200 1920x1080 1600x1200

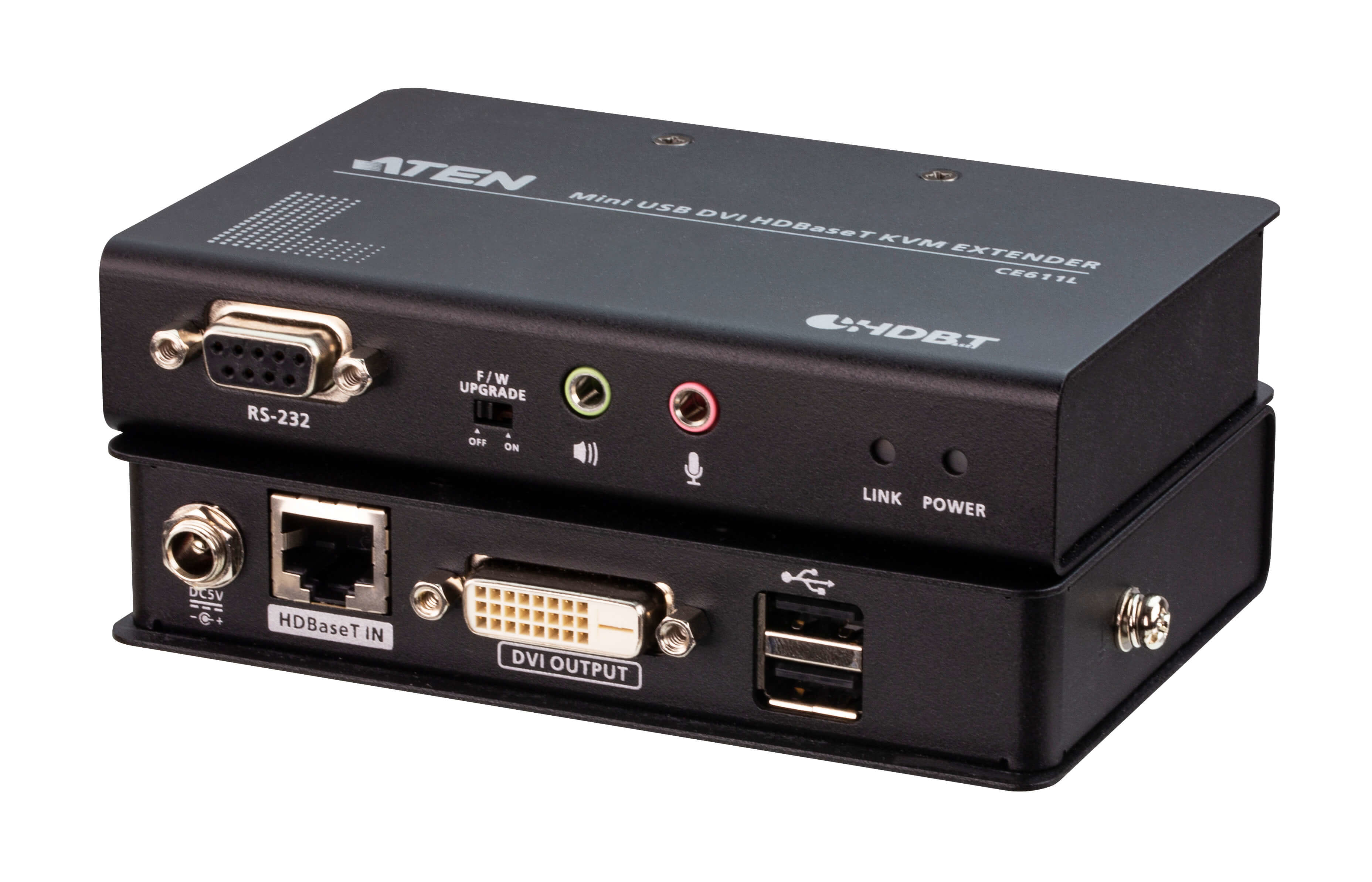

The ATEN CE611 is a USB DVI HDBaseT KVM Extender that integrates the latest HDBaseT technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Package Contents
- 1x CE611L Mini USB DVI HDBaseT KVM Extender (Local Unit)
- 1x CE611R Mini USB DVI HDBaseT KVM Extender (Remote Unit)
- 2x Power Adapters
- 1x User Instructions
Package Contents
- 1x CE611L Mini USB DVI HDBaseT KVM Extender (Local Unit)
- 1x CE611R Mini USB DVI HDBaseT KVM Extender (Remote Unit)
- 2x Power Adapters
- 1x User Instructions
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Cable types supported | Cat6,Cat6a |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920x1200 1920x1080 1600x1200 |
| Firmware upgradeable |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB data transfer rates | 480 Mbit/s |
| LED indicators |
|
| Certification | RoHS |
| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| Power consumption (transmitter) (max) | 2.494 W |
| Power consumption (receiver) (max) | 4.816 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 12.8 cm |
| Transmitter depth | 8.69 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 350 g |
| Receiver width | 12.8 cm |
| Receiver depth | 8.69 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 340 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 100 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 173 mm |
| Package weight Weight of the packaged product. | 1.18 kg |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.05 kg |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Ports & interfaces | |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 2 |
| RJ-45 ports quantity | 2 |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| Logistics data | |
| Master (outer) case net weight | 5.25 kg |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.32 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 442922 |
| MPN | CE611-AT-U |
