ATEN Cat 6A RJ-45 Connector 10pcs/package
Item No:
811803
MPN:
2A-245G
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

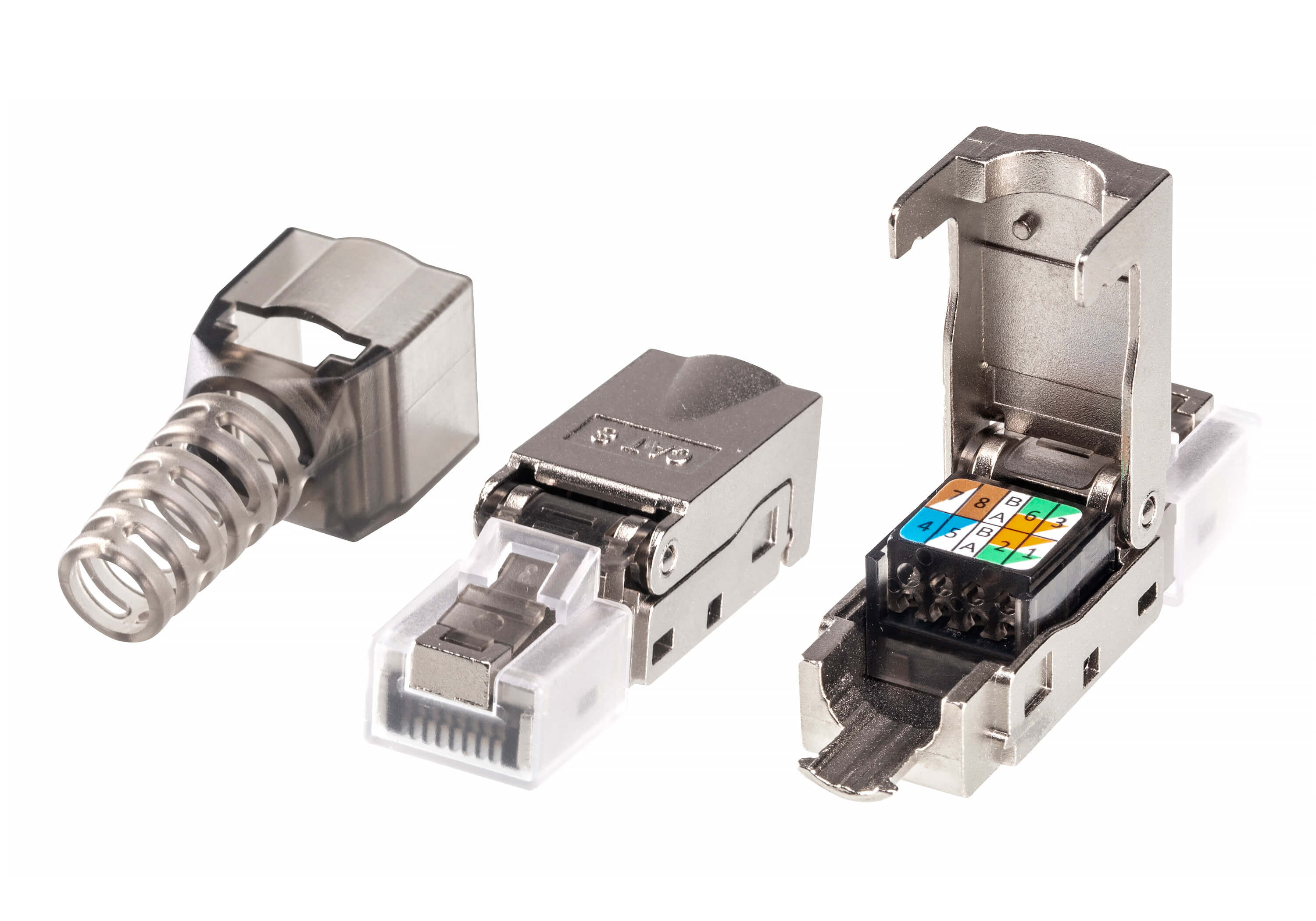

The ATEN 2A-245G Cat 6A RJ-45 connector shielded crystal head offers excellent electromagnetic interference protection, supports over 10G data transfer, and meets FCC Part 68 standards. Its reinstallable metal shielding and die-cast RJ-45 design ensure stable transmission and durability with over 750 mating cycles. It's compatible with PoE / POH and works well with various cable types, especially 2L-29330 Cat 6A cables.
This connector allows quick, tool-less installation with color-coded holders and a screw-on metal strain relief boot to prevent bending. Supporting cable gauges from 22 to 26 AWG, it's versatile for different networks. It complies with RoHS / REACH standards and includes an IP20 dust cover for added protection.
This connector allows quick, tool-less installation with color-coded holders and a screw-on metal strain relief boot to prevent bending. Supporting cable gauges from 22 to 26 AWG, it's versatile for different networks. It complies with RoHS / REACH standards and includes an IP20 dust cover for added protection.
| Features | |
| Connector(s) | J-45 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male |
| Connector form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Zinc |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6a |
| AWG wire size | 22/26 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel/Gold |
| Connector shielding |
 |
| Dielectric strength | 1000 V |
| Contact resistance | 20 mΩ |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 0.01 g |
| Width The measurement or extent of something from side to side. | 13.8 mm |
| Depth The distance from the front to the back of something. | 45.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 12.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Insulation resistance | 500 MΩ |
| SKU | 811803 |
| MPN | 2A-245G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
