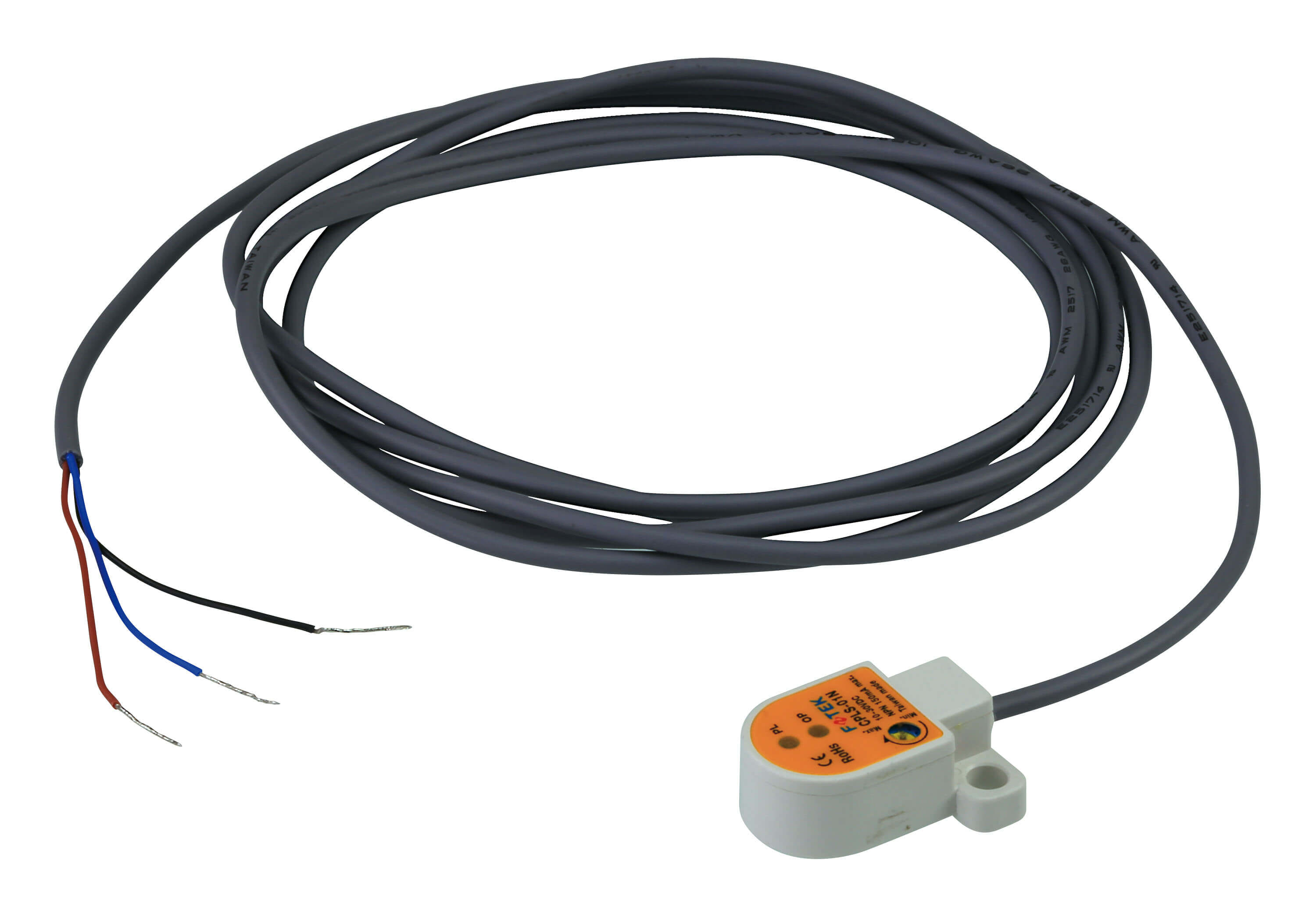

ATEN Capacitive Leakage Sensor, DC, 10 - 30 V, 0.15 A, 20 mA, 85 mm, 110 mm
The EA1540 Capacitive Leakage Sensor can automatically detect and notify users of any liquid in close proximity with the connected PDU. When any liquid is detected, the EA1540's beeper sounds, and its red LED lights up, calling for immediate attention and response, thereby effectively decreases the risks of damages to both the PDU and powered devices. It is ideal for PDU installation environments such as subway data centers located underground.
Suitable for a wide range of applications, the EA1540 features a compact and anti-interference design, allowing it to avoid external signals from affecting its normal operations while saving valuable space for critical work. Built with corrosion-resistant materials, it is adaptable even to hazardous environments.
The EA1540 is the perfect solution for those who need to ensure PDU s daily operations and prevent any potential risks of device damages in advance.
Suitable for a wide range of applications, the EA1540 features a compact and anti-interference design, allowing it to avoid external signals from affecting its normal operations while saving valuable space for critical work. Built with corrosion-resistant materials, it is adaptable even to hazardous environments.
The EA1540 is the perfect solution for those who need to ensure PDU s daily operations and prevent any potential risks of device damages in advance.
| Technical details | |
| Product type The sub-category of the product. | Sensor & alert system |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Housing material What the casing of the product is made of. | Polypropylene (PP) |
| Dielectric strength | 2500 V |
| Insulation resistance | 100 MΩ |
| Insulation resistance (DC) | 500 V |
| AWG wire size | 22 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 10 - 30 V |
| Nominal current output | 0.15 A |
| Power consumption | 20 mA |
| Power source type What the power source is. | DC |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 85 mm |
| Package depth The distance from the front to the back of the packaging. | 110 mm |
| Package height The distance from the top to the bottom of the packaging. | 45 mm |
| Package weight Weight of the packaged product. | 1.25 kg |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Package volume | 566.34 cm³ |
| Master (outer) case volume | 25485.16 cm³ |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 140 mm |
| Master (outer) case height | 480 mm |
| Master (outer) case gross weight | 720 g |
| Products per master (outer) case | 12 pc(s) |
| SKU | 700001 |
| MPN | EA1540 |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
