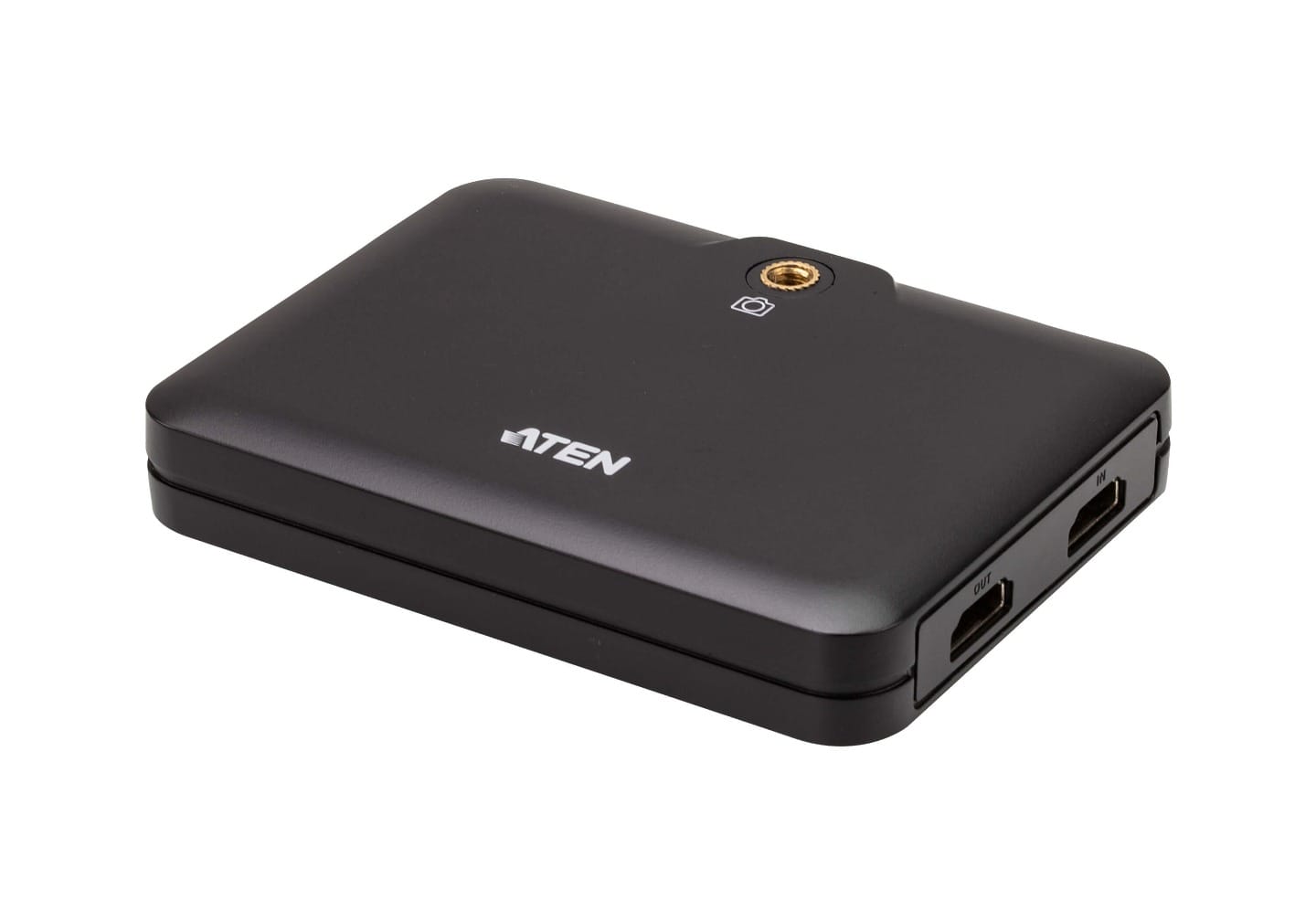

Video Input: 1xHDMI Type A Female (Black); Video Output: 1xHDMI Type A Female (Video Loop-out , Black); USB 3.2 Gen1 Type-C Female (Black)

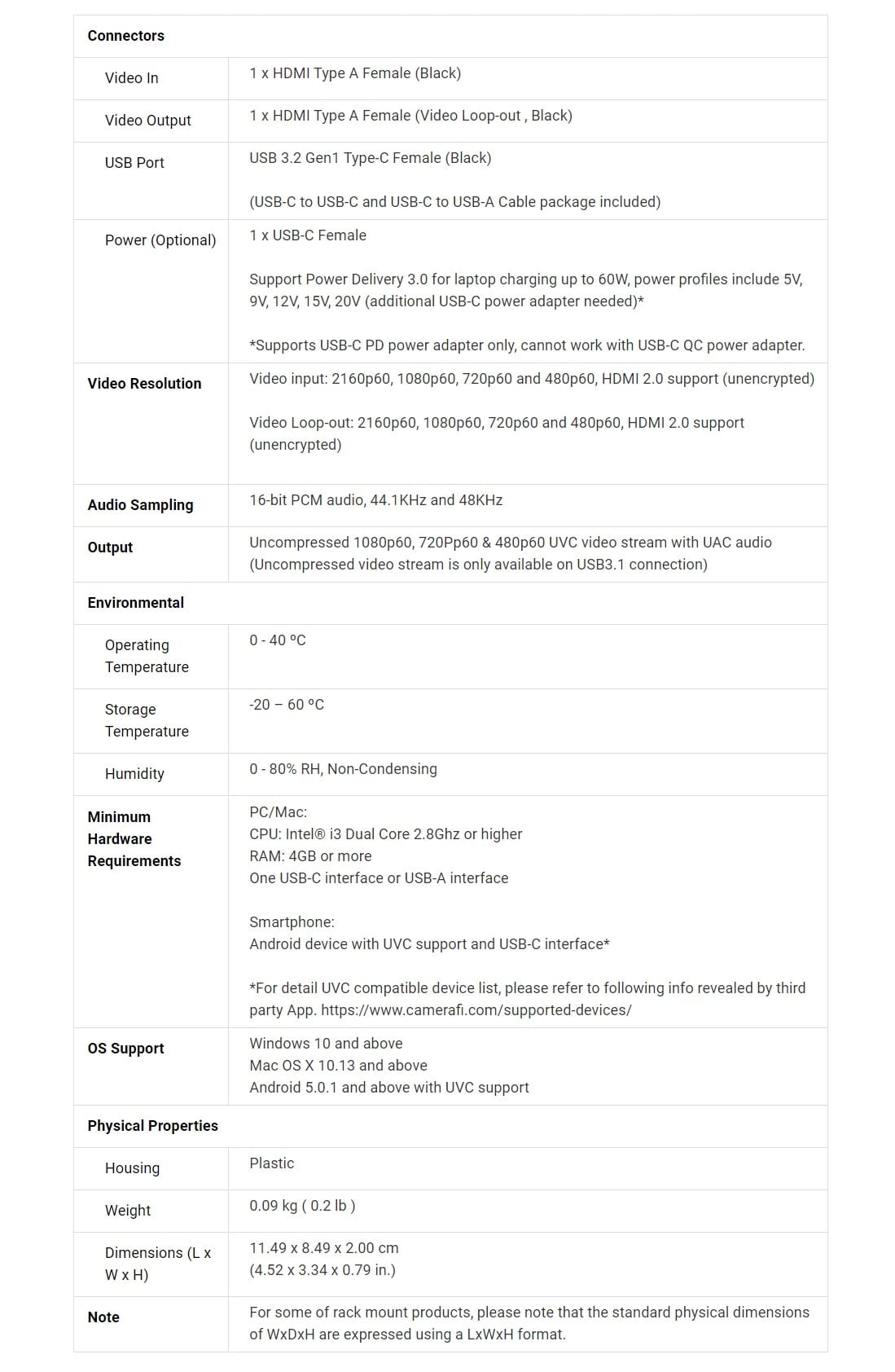

| Technical details | |
| Internal The product is built in. |
 |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Video | |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Supported video modes The video modes that can be displayed by the device. | 480p,720p,1080p,2160p |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 84.9 mm |
| Depth The distance from the front to the back of something. | 114.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 160 g |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5 V |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Other operating systems supported | Android |
| System requirements | |
| Minimum processor The lowest speed that the computer processor can run at, or the minimum amount of processing capacity that can be used, for the computer and particular program(s) to function. | Intel i3 Dual Core 2.8Ghz |
| Minimum RAM The lowest RAM (memory) required to run a computer program or operating system. | 4000 MB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package weight Weight of the packaged product. | 280 g |
| Package height The distance from the top to the bottom of the packaging. | 62 mm |
| Package width The distance from one side of the packaging to the other. | 140 mm |
| Package depth The distance from the front to the back of the packaging. | 193 mm |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 3.42 kg |
| Master (outer) case length | 34.5 cm |
| Master (outer) case net weight | 1.6 kg |
| Other features | |
| Master (outer) case width | 32.6 cm |
| Master (outer) case height | 16.2 cm |
| SKU | 483092 |
| MPN | UC3021-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
