ATEN VP1920, Metal, Black, 15 m, 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160, 4096 x 2160 pixels, IR

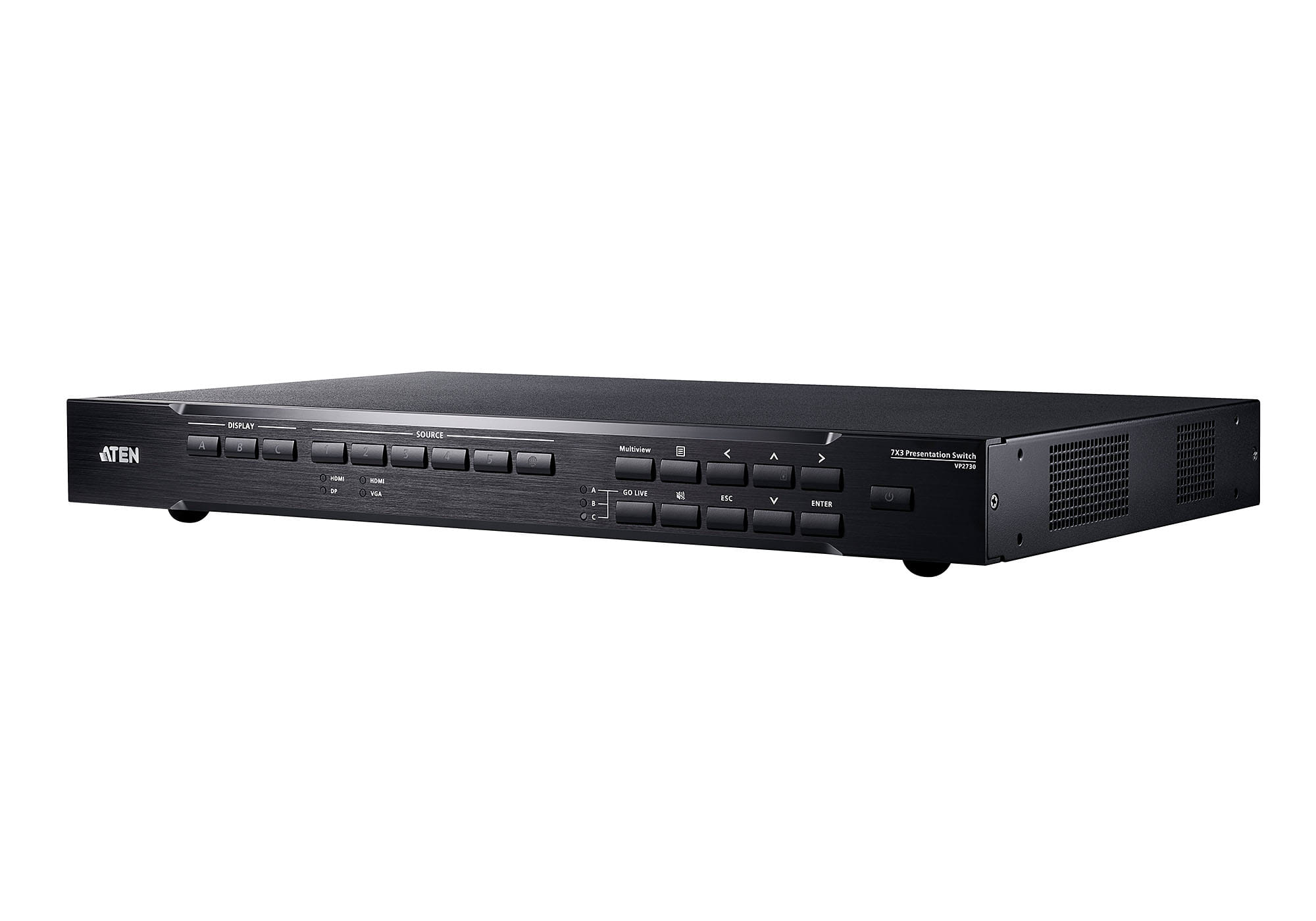

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms.
With the user in mind, VP2730 comes with a straightforward and accessible OSD and Web GUI to streamline operation for both local and remote participants. To facilitate sharing and collaboration with no distance limitations, VP2730 not only allows the meeting moderator to share video content to up to five remote sites, but also enables remote sites or local participants to wirelessly stream in their content for discussion. The moderator can monitor and switch among sources in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen.
VP2730 also features more advanced meeting management functions: Moderator Mode enables the meeting moderator to control other displays via the host display; Chat Room facilitates meeting communications; while Screen Capture and Freeze record and control the meeting flow. This Collaborative presentation solution facilitates distance-free content sharing along with advanced audio, simplifying AV integration via eliminating the need for numerous individual components and the compatibility challenges that accompany them.
With the user in mind, VP2730 comes with a straightforward and accessible OSD and Web GUI to streamline operation for both local and remote participants. To facilitate sharing and collaboration with no distance limitations, VP2730 not only allows the meeting moderator to share video content to up to five remote sites, but also enables remote sites or local participants to wirelessly stream in their content for discussion. The moderator can monitor and switch among sources in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen.
VP2730 also features more advanced meeting management functions: Moderator Mode enables the meeting moderator to control other displays via the host display; Chat Room facilitates meeting communications; while Screen Capture and Freeze record and control the meeting flow. This Collaborative presentation solution facilitates distance-free content sharing along with advanced audio, simplifying AV integration via eliminating the need for numerous individual components and the compatibility challenges that accompany them.
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 8 |
| HDMI in Port (socket) for HDMI input. | 6 |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| VGA (D-Sub) output ports | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 2 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 2 |
| Digital audio coaxial out The socket in the device for the digital audio output. The signal is carried via a coaxial cable with an RCA connector. | 1 |
| Composite video in The socket (port) for the composite video input (white cable). | 1 |
| Component video (YPbPr/YCbCr) in The number of sockets (ports) for RF (radio frequency) connections into the product. | 1 |
| 3.5 mm (1/8-inch) in |
 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Consumer Electronics Control (CEC) support |
|
| Extended display identification data (EDID) |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Remote control type | IR |
| 3D The device can be used with 3D technology. |
|
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Rack capacity The spase that device fill in rack. | 1U |
| Heat dissipation The heat generated by the power supply. | 60 BTU/h |
| HDCP version | 1.4 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC adapter frequency | 50 / 60 Hz |
| AC adapter input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7.3 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 437.2 mm |
| Depth The distance from the front to the back of something. | 163.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.36 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Power cord included |
|
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| User guide |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 700613 |
| MPN | VP1920-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
