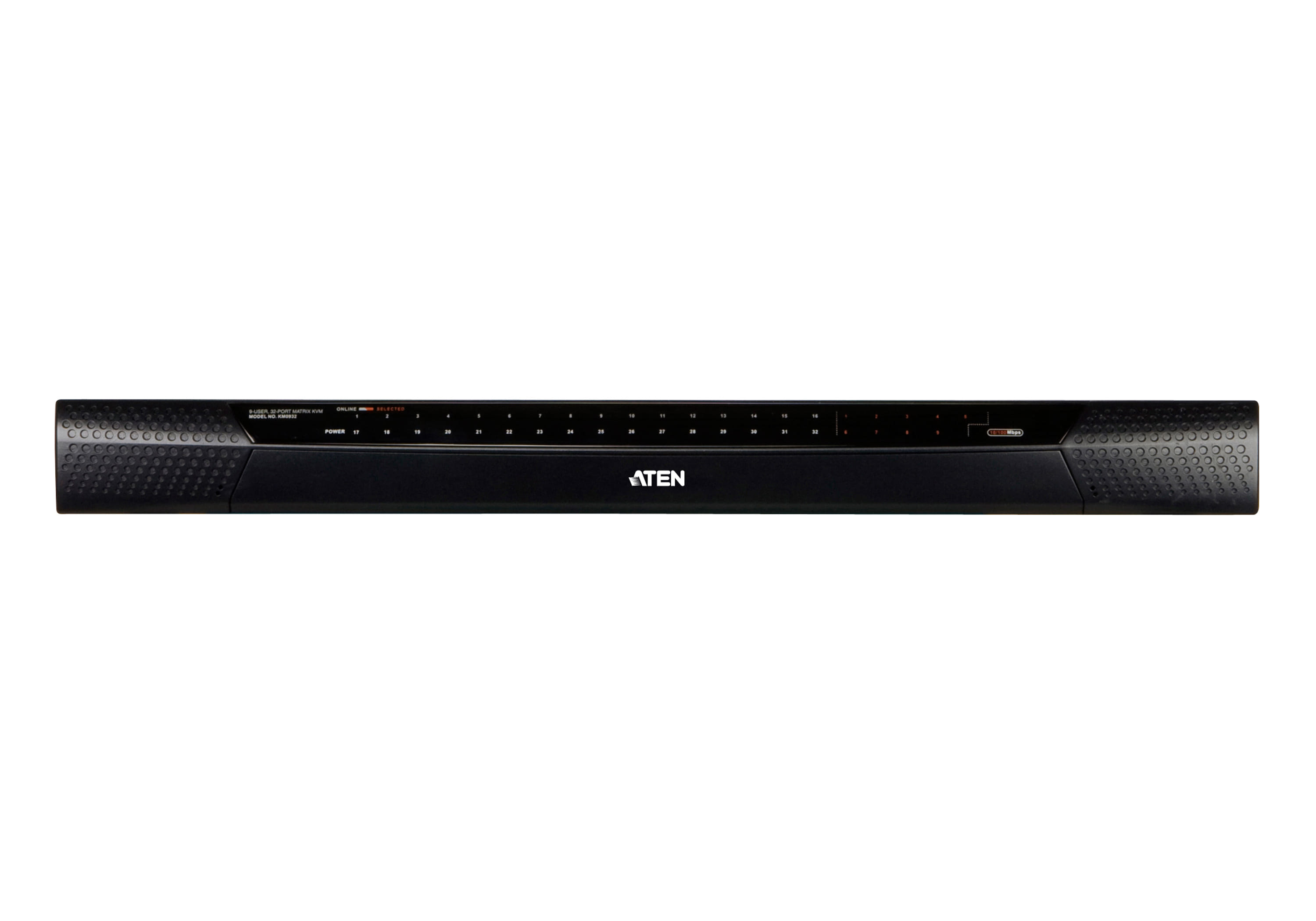

Aten 9 Console 32 Port Cat5 Matrix KVM Switch
Item No:
700136
MPN:
KM0932-AX-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 9 Console 32 Port Cat 5 Matrix KVM Switch with Daisy Chain Port, 1920 x 1200 pixels, Ethernet LAN, Rack mounting, 53.87 W, 1U, Black
ATEN Matrix KVM Switches are designed for modern data centers that require reliable, high security access and control of multiple servers. With non blocked access and flexible expansion support, Matrix KVM switches offer high quality video sessions for secure, real time control of your entire data center devices.
With automatic skew compensation and Auto Signal Compensation (ASC) techniques, Matrix KVM switches provide greatly enhanced video quality via Cat 5e/6 cabling 1280x1024 @60Hz for up to 300 meters. The industry s first full screen Graphical User Interface offers a tree view list of installed devices providing smooth navigation and convenient access and control not only saving on training time and costs; but increasing user efficiency, as well.
With automatic skew compensation and Auto Signal Compensation (ASC) techniques, Matrix KVM switches provide greatly enhanced video quality via Cat 5e/6 cabling 1280x1024 @60Hz for up to 300 meters. The industry s first full screen Graphical User Interface offers a tree view list of installed devices providing smooth navigation and convenient access and control not only saving on training time and costs; but increasing user efficiency, as well.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 32 |
| Console ports | RJ–45 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 240 s |
| Daisy chain |
|
| Number of users The number of people that use or can use this product. | 1024 user(s) |
| Maximum operating distance The maximum distance from which you can operate the device. | 300 m |
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 53.87 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 310.9 mm |
| Depth The distance from the front to the back of something. | 438.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.08 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Rubber feet |
|
| SKU | 700136 |
| MPN | KM0932-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
