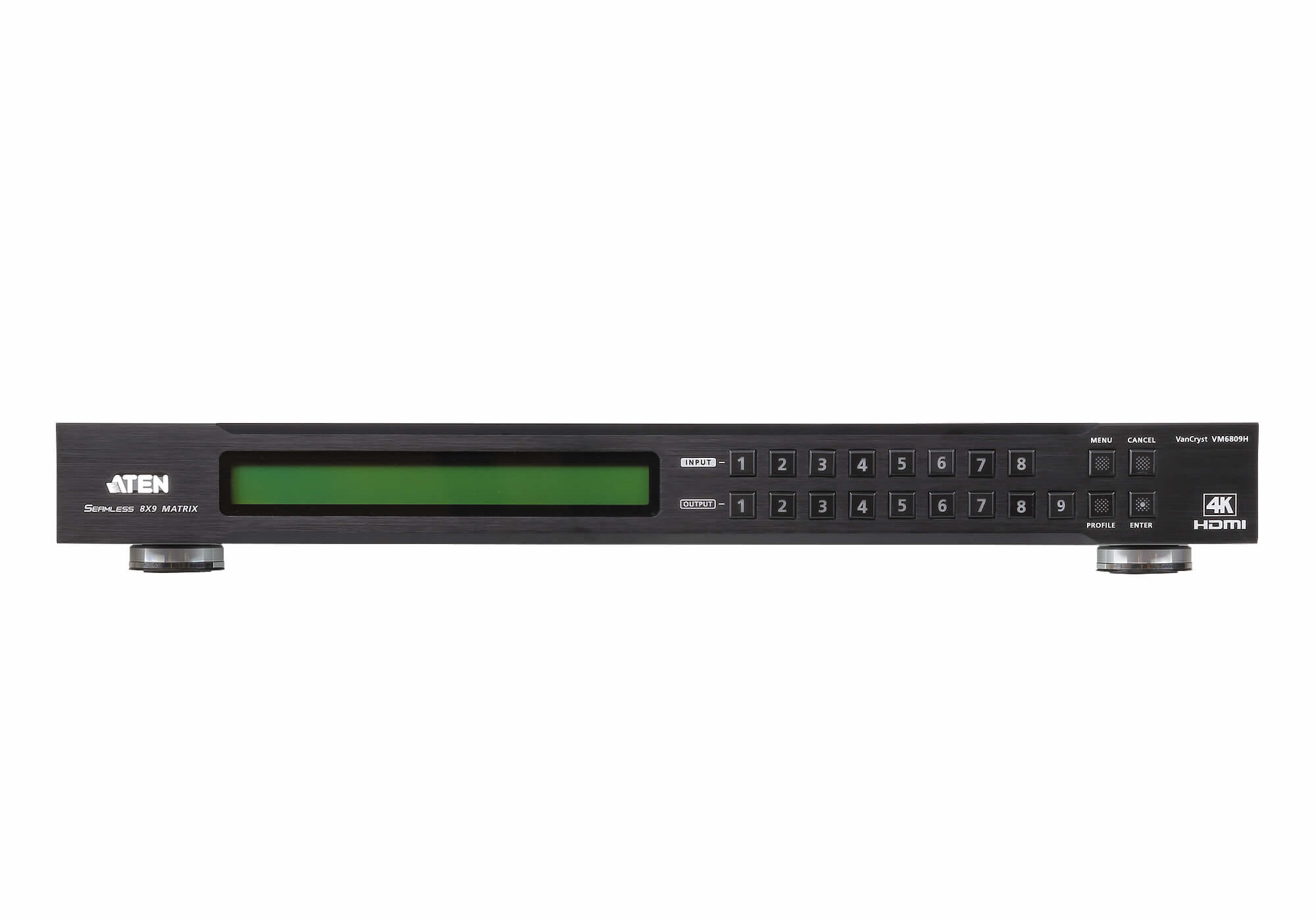

Aten 8x9 4K HDMI Matrix Switch With Scaler
Item No:
700550
MPN:
VM6809H-AT-U
$14,977.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VM6809H-AT-U, HDMI, Metal, Black, 15 m, 3840 x 2160, 4096 x 2160, 10.2 Gbit/s
4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN s VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 17 |
| HDMI version | 2.0 |
| HDMI in Port (socket) for HDMI input. | 8 |
| Number of HDMI outputs Port (socket) for HDMI output. | 9 |
| RJ-45 input ports | 1 |
| 3.5 mm (1/8-inch) out |
 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 4096 x 2160 |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| 3D The device can be used with 3D technology. |
|
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Rack capacity The spase that device fill in rack. | 1U |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| HDCP version | 2.2 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 450.3 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.05 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit |
|
| Manual |
|
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Sustainability | |
| Sustainability certificates | RoHS |
| SKU | 700550 |
| MPN | VM6809H-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
