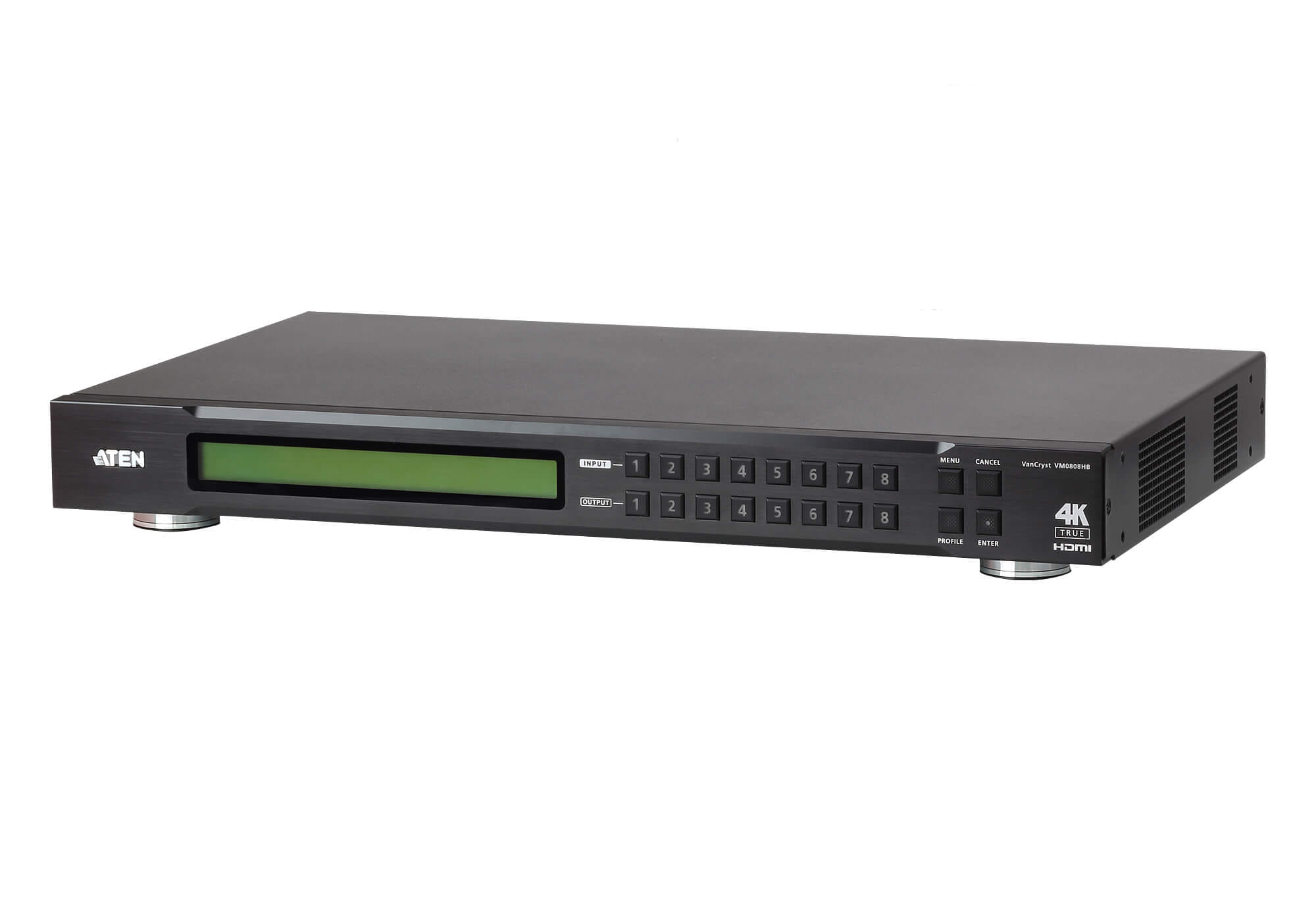

ATEN VM0808HB-AT-U, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, 1920 x 1200, Black
ATEN's VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
| Features | |
| Product type The sub-category of the product. | AV matrix switcher |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| 3D The device can be used with 3D technology. |
|
| High Dynamic Range (HDR) supported |
|
| Extended display identification data (EDID) |
|
| Supported resolutions | 4096 x 2160, 3840 x 2160, 1920 x 1200 |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Control type The way in which the device is controlled. | Buttons |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators |
|
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Ports & interfaces | |
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Remote (IR) input | 1 |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 38.1 W |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 37.8 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Heat dissipation The heat generated by the power supply. | 177 BTU/h |
| Heat dissipation (max) | 179 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432.4 mm |
| Depth The distance from the front to the back of something. | 262.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.15 kg |
| Package width The distance from one side of the packaging to the other. | 338 mm |
| Package depth The distance from the front to the back of the packaging. | 515 mm |
| Package height The distance from the top to the bottom of the packaging. | 155 mm |
| Package weight Weight of the packaged product. | 5.63 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| IR receiver included |
|
| SKU | 646576 |
| MPN | VM0808HB-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
