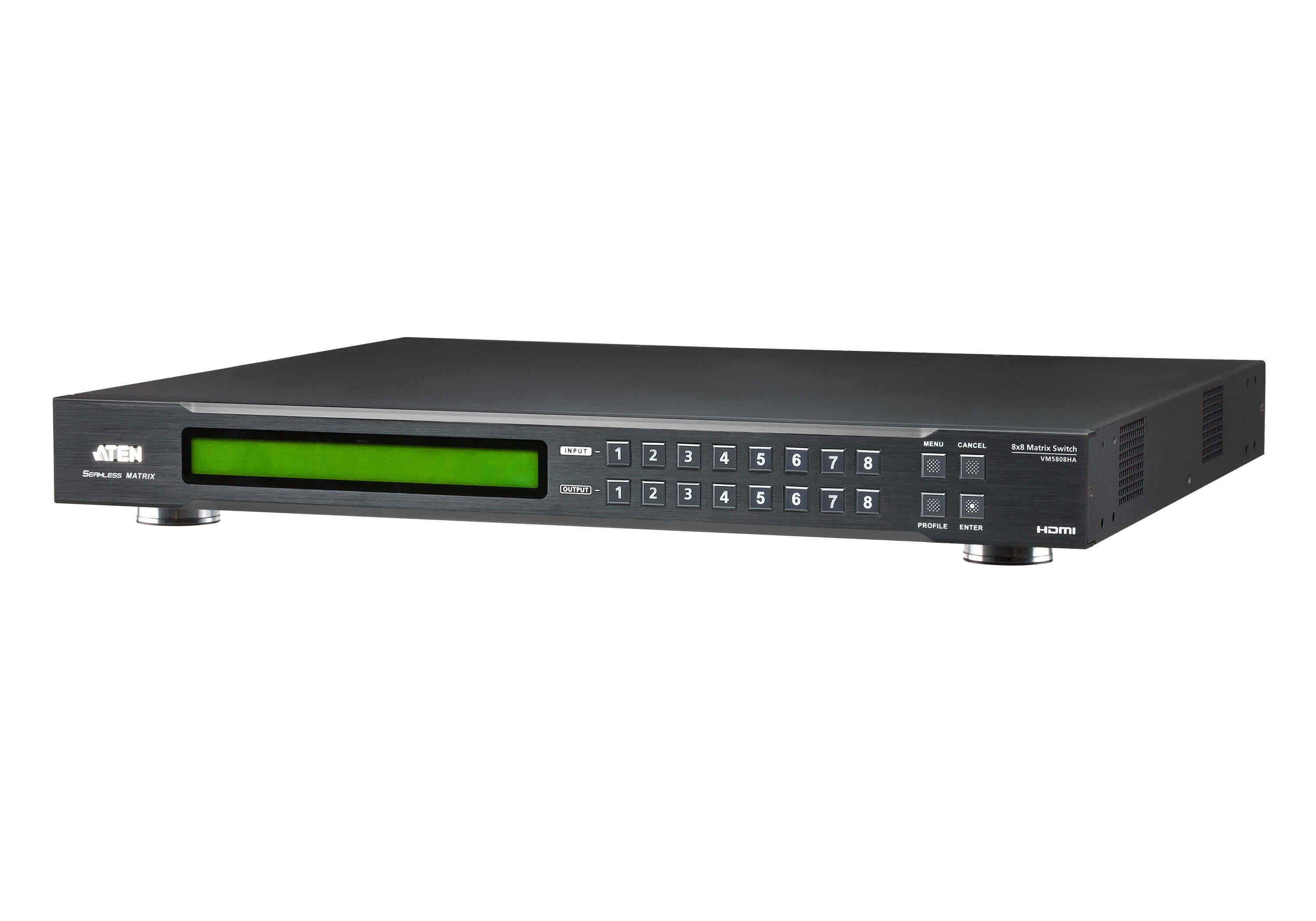

Aten 8x8 HDMI Matrix Switch with Scaler
Item No:
767372
MPN:
VM5808HA-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VM5808HA-AT-U, AV matrix switcher, 6.75 Gbit/s, 225 MHz, 1920 x 1080 pixels, Black, Metal
The 8 x 8 HDMI Matrix Switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device, such as through the front panel pushbuttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, the VM5808HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled. Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located.
As the ultimate video wall solution, the FPGA-based VM5808HA features ATEN s exclusive Seamless Switch technology, ensuring uninterrupted video streams, real-time control, and stable signal transmission. The built-in scaler automatically scales any input video feed to match the native resolution of the output display for the best video and picture quality. To prevent screen tearing, the VM5808HA adopts FrameSync technology to synchronize the scaler output frame rates to the input signal frame rates, guaranteeing stunning tear-free video walls.
Speaking of audio functionality, the Matrix Switch features audio de-embedding, enabling digital audio from any HDMI input to be assigned to the stereo output for added flexibility of installation. The VM5808HA is an HDMI video routing solution ideal for scenarios where customizable, real-time AV signal transportation from multiple sources to one or more destinations is required, from control centers, server rooms, to any kind of video wall applications.
As the ultimate video wall solution, the FPGA-based VM5808HA features ATEN s exclusive Seamless Switch technology, ensuring uninterrupted video streams, real-time control, and stable signal transmission. The built-in scaler automatically scales any input video feed to match the native resolution of the output display for the best video and picture quality. To prevent screen tearing, the VM5808HA adopts FrameSync technology to synchronize the scaler output frame rates to the input signal frame rates, guaranteeing stunning tear-free video walls.
Speaking of audio functionality, the Matrix Switch features audio de-embedding, enabling digital audio from any HDMI input to be assigned to the stereo output for added flexibility of installation. The VM5808HA is an HDMI video routing solution ideal for scenarios where customizable, real-time AV signal transportation from multiple sources to one or more destinations is required, from control centers, server rooms, to any kind of video wall applications.
| Features | |
| Product type The sub-category of the product. | AV matrix switcher |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6.75 Gbit/s |
| Maximum pixel clock | 225 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 1.4 |
| 3D The device can be used with 3D technology. |
|
| Extended display identification data (EDID) |
|
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Ports & interfaces | |
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 9 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 58.1 W |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 56.6 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Heat dissipation The heat generated by the power supply. | 265 BTU/h |
| Heat dissipation (max) | 272 BTU/h |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 378.2 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.54 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit |
|
| Manual |
|
| SKU | 767372 |
| MPN | VM5808HA-AT-U |
| Brand | ATEN |
