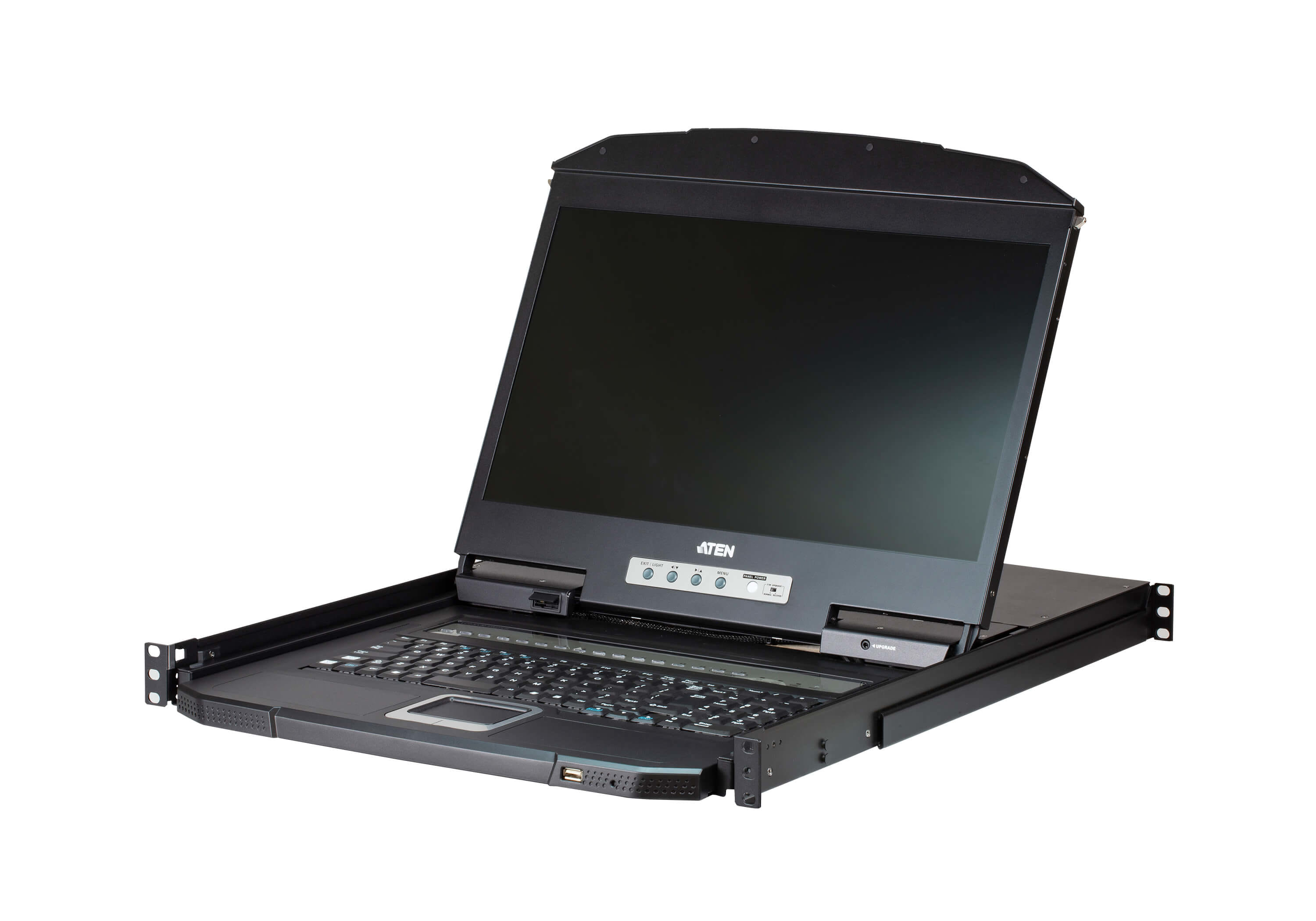

Aten Rackmount KVM Switch 8 Port VGA w/ 18.5' LCD Display, 2x Custom KVM Cables Included, 1366x768@60hz Display, Short Depth Design
Aten 18.5' Short Depth 8 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable
Exclusive LED illumination light
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Cascade up to 2 levels " CL3108 controls up to 128 computers or CL3116 controls up to 256 computers from a single console
Keyboard and mouse emulation (PS/2 and USB)
Function CL3108NX
Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
KVM Ports 8 x SPHD Female (Yellow)
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14
External Mouse Port 1 x USB Type A Female (Front)
Switches
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
Video
Input Video Resolution up to 1920 - 1200 @ 60 Hz;
1366 - 768 @ 60 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100 "240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.50 kg ( 23.13 lb )
Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
Exclusive LED illumination light
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Cascade up to 2 levels " CL3108 controls up to 128 computers or CL3116 controls up to 256 computers from a single console
Keyboard and mouse emulation (PS/2 and USB)
Function CL3108NX
Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
KVM Ports 8 x SPHD Female (Yellow)
Firmware Upgrade 1 x 3.5mm Audio Jack Female (Black)
Power 1 x IEC 60320/C14
External Mouse Port 1 x USB Type A Female (Front)
Switches
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
Video
Input Video Resolution up to 1920 - 1200 @ 60 Hz;
1366 - 768 @ 60 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100 "240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.50 kg ( 23.13 lb )
Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1366 x 768 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Number of users The number of people that use or can use this product. | 128 user(s) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| Cascadable |
|
| LED indicators |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | TFT-LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 47 cm (18.5") |
| On Screen Display (OSD) |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 480.6 mm |
| Depth The distance from the front to the back of something. | 42.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 631.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 11 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 668 mm |
| Package depth The distance from the front to the back of the packaging. | 718 mm |
| Package height The distance from the top to the bottom of the packaging. | 135 mm |
| Package weight Weight of the packaged product. | 13.8 kg |
| Logistics data | |
| Master (outer) case net weight | 11 kg |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 718 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 13.8 kg |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Power supply type The type of power supply which this product uses. | AC |
| SKU | 441323 |
| MPN | CL3108NX-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
