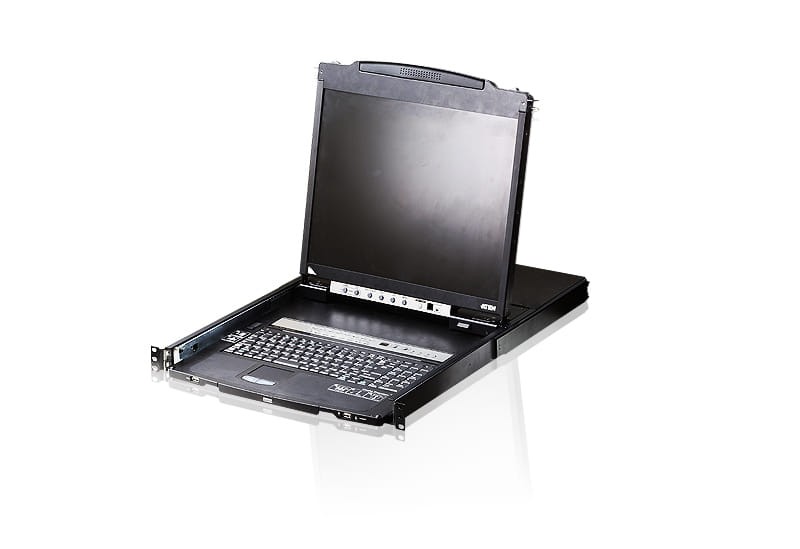

Aten Rackmount KVM Switch Dual Rail 8 Port VGA PS/2-USB w/ 19' LCD Display, 2x Custom KVM Cables Included, 1280x1024@75hz Display, LED Illumination
Computer Connections:
- Direct: 8
- Max.: 256 (via Daisy-chain)
Port Selection: OSD, Hotkeys, Pushbuttons
Connectors:
- External Console Port: 1 x SPHD-18 Male (Yellow)
- External Mouse Port: 1 x USB Type-A Female (White)
- KVM Ports: 8 x SPHD-17/18 Female (Yellow)
- Daisy-chain Port: 1 x DB-25 Male (Black)
- FW Upgrade: 1 x RJ-11 Female (Black)
- Power: 1 x 3-prong AC Socket
- USB Port: 1 x USB Type-A Female
Switches:
- Reset: 1 x Semi-recessed Pushbutton
- Power: 1 x Rocker
- F/W Upgrade: 1 x Slide
- LCD Adjust: 4 x Pushbutton
- LCD On/Off: 1 x LED Pushbutton (Orange)
- Port Selection:
- 2 x Pushbutton (LCD);
- 8 x Pushbutton (Keyboard)
- Station Selection: 2 x Pushbutton
LEDs:
- On Line: 8 (Orange)
- Selected: 8 (Green)
- Station ID: 2 x 7-segment LED Display (Orange)
- Power: 1 (Dark Green)
- Lock:
- Num: 1 (Green)
- Caps: 1 (Green)
- Scroll: 1 (Green)
Emulation - Keyboard/Mouse: PS/2, USB
Video: 1280 x 1024 @ 75 Hz; DDC2B
Scan Interval (OSD Select): 1 "255 sec.
I/P Rating: 100 "240 V AC, 50/60 Hz, 1 A
Power Consumption: 120V, 30.1W ; 230V, 30.7W
Environment:
- Operating Temp.: 0 ~ 50 DegC
- Storage Temp.: -20 ~ 60 DegC
- Humidity: 0 ~ 80% RH, Non-condensing
Physical Properties:
- Housing: Metal + Plastic
- Weight: 14.83 kg
- Dimensions (DxWxH): 68.04 x 48.00 x 4.40cm
Package Contents:
- 1 x CL5808 KVM Switch with Standard Rack Mounting Kit
- 2 x Custom KVM Cables
- 1 x 5-in-1 Console Cable
- 1 x Firmware Upgrade Cable
- 1 x Power Cord
- 1 x User Instructions
- Direct: 8
- Max.: 256 (via Daisy-chain)
Port Selection: OSD, Hotkeys, Pushbuttons
Connectors:
- External Console Port: 1 x SPHD-18 Male (Yellow)
- External Mouse Port: 1 x USB Type-A Female (White)
- KVM Ports: 8 x SPHD-17/18 Female (Yellow)
- Daisy-chain Port: 1 x DB-25 Male (Black)
- FW Upgrade: 1 x RJ-11 Female (Black)
- Power: 1 x 3-prong AC Socket
- USB Port: 1 x USB Type-A Female
Switches:
- Reset: 1 x Semi-recessed Pushbutton
- Power: 1 x Rocker
- F/W Upgrade: 1 x Slide
- LCD Adjust: 4 x Pushbutton
- LCD On/Off: 1 x LED Pushbutton (Orange)
- Port Selection:
- 2 x Pushbutton (LCD);
- 8 x Pushbutton (Keyboard)
- Station Selection: 2 x Pushbutton
LEDs:
- On Line: 8 (Orange)
- Selected: 8 (Green)
- Station ID: 2 x 7-segment LED Display (Orange)
- Power: 1 (Dark Green)
- Lock:
- Num: 1 (Green)
- Caps: 1 (Green)
- Scroll: 1 (Green)
Emulation - Keyboard/Mouse: PS/2, USB
Video: 1280 x 1024 @ 75 Hz; DDC2B
Scan Interval (OSD Select): 1 "255 sec.
I/P Rating: 100 "240 V AC, 50/60 Hz, 1 A
Power Consumption: 120V, 30.1W ; 230V, 30.7W
Environment:
- Operating Temp.: 0 ~ 50 DegC
- Storage Temp.: -20 ~ 60 DegC
- Humidity: 0 ~ 80% RH, Non-condensing
Physical Properties:
- Housing: Metal + Plastic
- Weight: 14.83 kg
- Dimensions (DxWxH): 68.04 x 48.00 x 4.40cm
Package Contents:
- 1 x CL5808 KVM Switch with Standard Rack Mounting Kit
- 2 x Custom KVM Cables
- 1 x 5-in-1 Console Cable
- 1 x Firmware Upgrade Cable
- 1 x Power Cord
- 1 x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. |
 |
| Mouse port type | USB |
| Console ports | VGA (D-Sub) |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | SXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1280 x 1024 pixels |
| Scan interval | 1,255 s |
| DDC2B support |
 |
| Hot-swap |
|
| Daisy chain |
|
| Number of users The number of people that use or can use this product. | 256 user(s) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| LED indicators |
|
| Push button |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 48.3 cm (19") |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 25 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 680.4 mm |
| Depth The distance from the front to the back of something. | 480 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.4 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 668 mm |
| Package depth The distance from the front to the back of the packaging. | 833 mm |
| Package height The distance from the top to the bottom of the packaging. | 135 mm |
| Package weight Weight of the packaged product. | 18.6 kg |
| Packaging content | |
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 15.4 kg |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 833 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 18.6 kg |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | 1 x DB-25, 1 x RJ-11, 1 x IEC 60320/C14 |
| SKU | 440867 |
| MPN | CL5808N-ATA-AU |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
