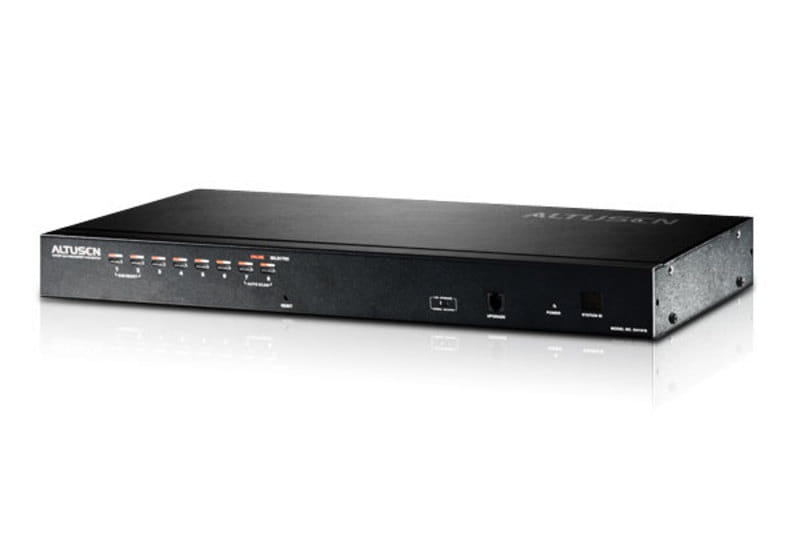

Aten KH1508A, 1600 x 1200 pixels, Rack mounting, 6 W, 1U, Black
Features
- One KVM console control up to 8 directly connected computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
- Console conversion any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters*
- Configue port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiplatform support PC, Mac, Sun, and serial
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast Mode sends commands from the console to all computers allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
*With KVM Adapter Cable KA7000 series.
Package Contents
- 1x KH1508A 8-port Cat 5 High-Density KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD8-0C05-24EG Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
- One KVM console control up to 8 directly connected computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
- Console conversion any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters*
- Configue port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiplatform support PC, Mac, Sun, and serial
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast Mode sends commands from the console to all computers allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
*With KVM Adapter Cable KA7000 series.
Package Contents
- 1x KH1508A 8-port Cat 5 High-Density KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD8-0C05-24EG Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Console ports | USB A,VGA (D-Sub) |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 8 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5.1 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 437.2 mm |
| Depth The distance from the front to the back of something. | 163.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.05 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 131 mm |
| Package depth The distance from the front to the back of the packaging. | 540 mm |
| Package height The distance from the top to the bottom of the packaging. | 233 mm |
| Package weight Weight of the packaged product. | 3.57 kg |
| Packaging content | |
| Quick installation guide |
|
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 9.15 kg |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 11.3 kg |
| Products per master (outer) case | 3 pc(s) |
| SKU | 441599 |
| MPN | KH1508A-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
