Aten 8" Touch Panel
Item No:
791996
MPN:
VK320-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VK320, 20.3 cm (8"), 1280 x 800 pixels, IPS, 16:10, 170Deg, 300 cd/m2

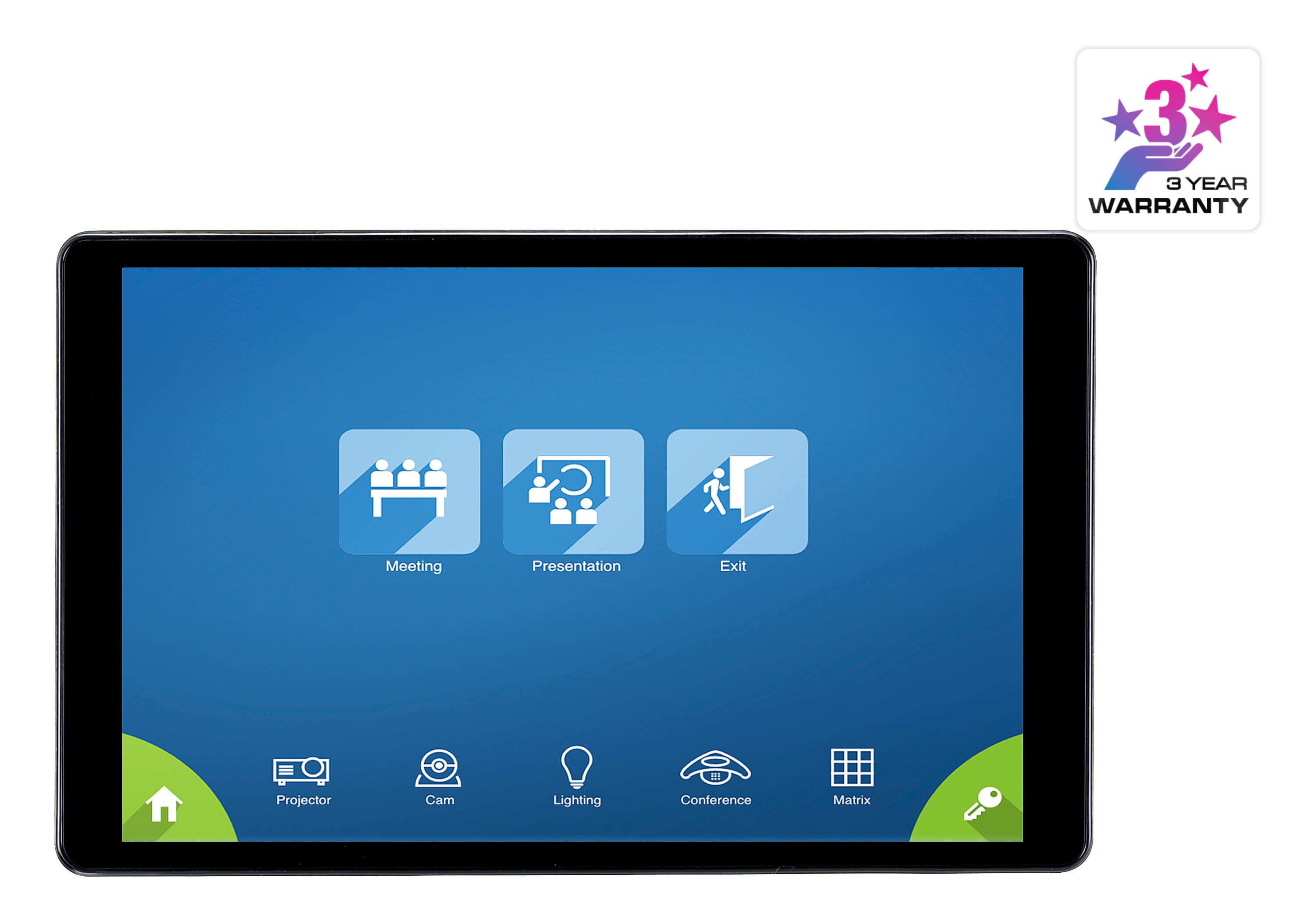

The ATEN VK320 is an 8" Touch Panel featuring capacitive multi-touch IPS-LCD screen with a narrow bezel. Natively installed with the ATEN Control System app, the touch panel is compatible with ATEN Control Boxes and Control Pads.
The VK320 supports Power over Ethernet (PoE), which allows power and data to be carried over a single Ethernet cable to the touch panel, making it perfect for applications that require solid and wired connections.
The Touch Panel VK320 features an in-wall design and a sophisticated touch panel that comes complete with an 86-type junction box, ensuring a versatile and efficient solution. The VK320 is also perfectly suitable for the smaller and compact scenarios such as digital podiums or lecterns. It is worth noting that the VK320
The VK320 supports Power over Ethernet (PoE), which allows power and data to be carried over a single Ethernet cable to the touch panel, making it perfect for applications that require solid and wired connections.
The Touch Panel VK320 features an in-wall design and a sophisticated touch panel that comes complete with an 86-type junction box, ensuring a versatile and efficient solution. The VK320 is also perfectly suitable for the smaller and compact scenarios such as digital podiums or lecterns. It is worth noting that the VK320
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 20.3 cm (8") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 800 pixels |
| Display technology The technology used in the display e.g. plasma, LED. | IPS |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 16:10 |
| Viewing angle | 170° |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 300 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 800:1 |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touchscreen technology | Capacitive |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| RAM capacity | 2 GB |
| Storage capacity The maximum storage capability of the product. | 32000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Ports & interfaces | |
| RJ-45 ports quantity | 1 |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (max) The maximum amount of power used by the device. | 12 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 124.6 mm |
| Depth The distance from the front to the back of something. | 200.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 37.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 480 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 240 mm |
| Package height The distance from the top to the bottom of the packaging. | 67 mm |
| Package weight Weight of the packaged product. | 700 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 75% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 55 °C |
| SKU | 791996 |
| MPN | VK320-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
