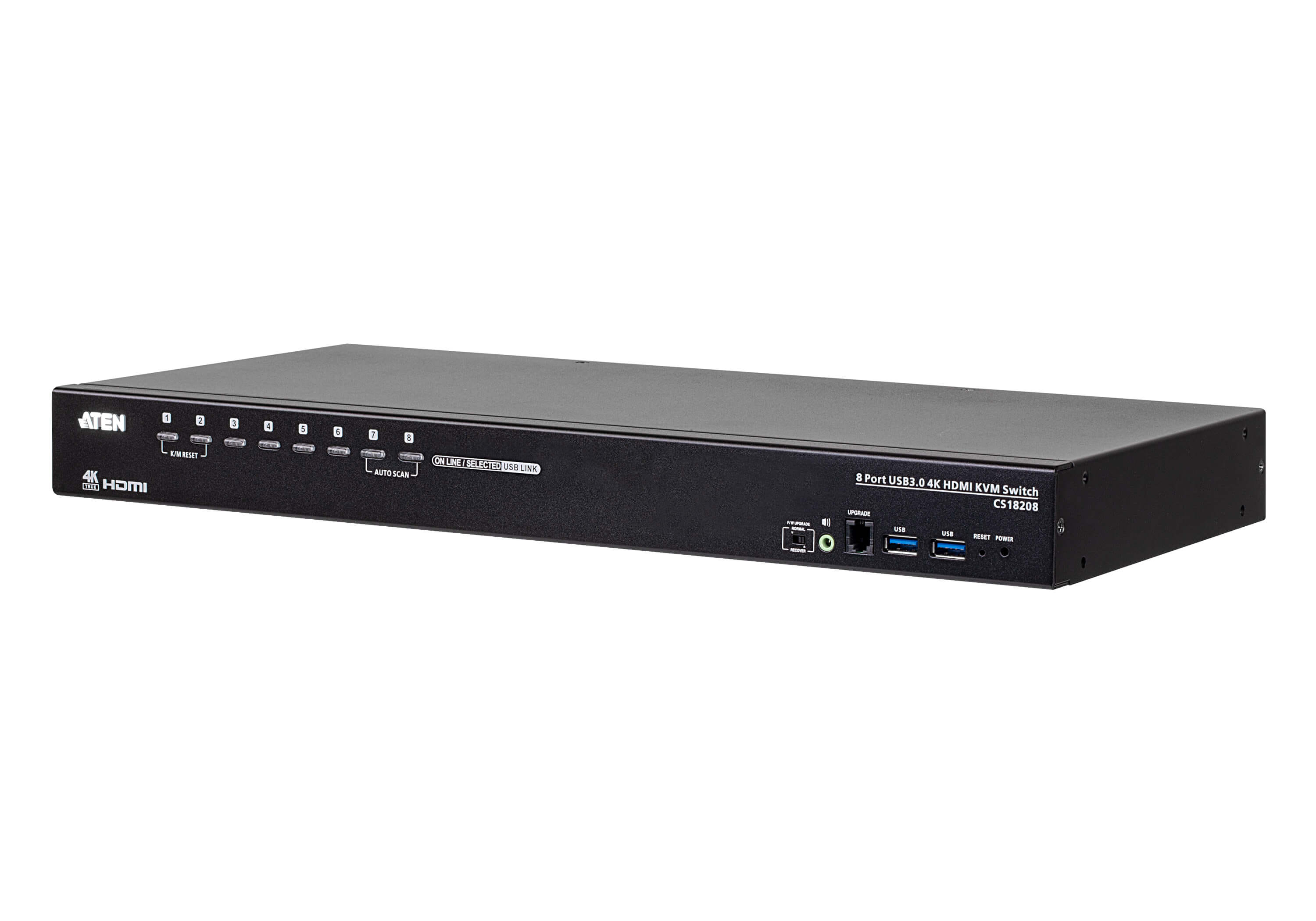

8-Port USB 3.0 4K HDMI KVM Switch
- Superior video quality up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Cascadable to three levels controls up to 512 computers
- Multi-Display feature stacks up to eight CS18208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
- Video DynaSync an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
The ATEN CS18208 8-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 8 HDMI computers from a single USB keyboard, USB mouse, and HDMI monitor console. The CS18208 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS18208 can control up to 512 computers by cascading to three levels for a single console. Furthermore, the CS18208 supports multi-display function by stacking up to eight CS18208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
With two patented ATEN technologies Video DynaSync and EDID Expert, the CS18208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.
Besides, the CS18208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS18208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS18208 is ideal for server room or computer room management applied in industries with requirements for high-quality images and multitasking, such as enterprise, government, production, telecom, finance, media, content provider, video surveillance, etc.
Package Contents
- 1x CS18208 8-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit
- 2x HDMI Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
| Name | Value |
|---|---|
| Compatible/Used for | HDMI |
| Console Ports | 1 x HDMI Female (Black) 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) |
| Dimensions | 43.24 x 21.43 x 4.40 cm |
| Firmware Upgrade | 1 x RJ11 Female (Black) |
| Housing | Metal |
| KVM Ports | 8 x HDMI Female 8 x USB3.1 Gen1 Type B Female (Blue) 8 x 3.5mm Audio Jack Female (Green) |
| Type | HDMI KVM Switch |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front) |
| Video | HDMI: 4096 x 2160 @ 60Hz |
| Warranty | 2 Years |
| Weight | 3.11 kg |
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 8 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 9 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB hub |
 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 9 |
| Number of microphone inputs | 9 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 255 s |
| Auto scan delay (max) | 255 s |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 9.77 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 214.3 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.11 kg |
| Packaging content | |
| Cables included | Audio (3.5mm), HDMI, USB |
| Manual |
|
| AC adapter included |
|
| SKU | 519002 |
| MPN | CS18208-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
