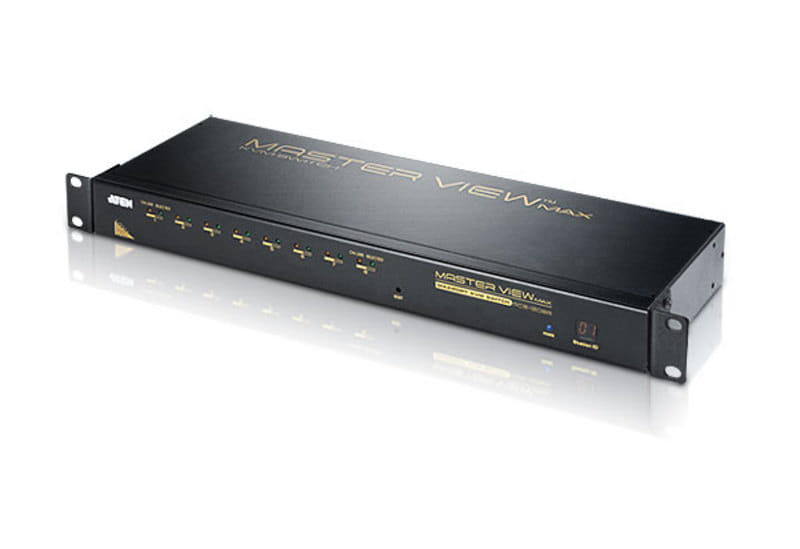

ATEN 8-Port PS/2 VGA KVM Switch (CS1208A)
Item No:
699938
MPN:
CS1208A-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN CS1208A AT U, 2048 x 1536 pixels, Rack mounting, 7.5 W, 1U, Blue
ATEN s high performance KVM switch offers one of the most streamlined approaches to server network management. With its advanced engineering and high density console connectors, a single unit occupies only 1U of rack space and can control up to 256 computers.
Features:
One PS/2 console controls 8 computers.
Daisy chain up to 31 additional units Control up to 256 computers from a single console.
Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable.
Buzzer ON/OFF via hotkey and OSD.
Broadcast Mode: Operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown....etc.
Auto sensing of station s position on daisy chained installations no need for manual DIP switch setting front panel LED indicates station s position.
Computer selection via hotkeys and OSD.
Superior video quality up to 2048 x 1536; DDC2B.
Rack mountable in 19" system rack.
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
Package Contents
1x 8 Port PS/2 KVM Switch
2x Custom KVM Cable (VGA, PS/2; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Adapter (6ft.)
1x Rack Mount Kit
1x User Manual
Features:
One PS/2 console controls 8 computers.
Daisy chain up to 31 additional units Control up to 256 computers from a single console.
Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable.
Buzzer ON/OFF via hotkey and OSD.
Broadcast Mode: Operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown....etc.
Auto sensing of station s position on daisy chained installations no need for manual DIP switch setting front panel LED indicates station s position.
Computer selection via hotkeys and OSD.
Superior video quality up to 2048 x 1536; DDC2B.
Rack mountable in 19" system rack.
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
Package Contents
1x 8 Port PS/2 KVM Switch
2x Custom KVM Cable (VGA, PS/2; 1.8m/6ft)
1x Firmware Upgrade Cable
1x Power Adapter (6ft.)
1x Rack Mount Kit
1x User Manual
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 256 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | PS/2 |
| Mouse port type | PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 9 |
| Console ports | PS/2, VGA (D-Sub) |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| DDC2B support |
 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Daisy chain |
|
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Hot keys |
|
| Display | |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 9 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7.5 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 443 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.73 kg |
| Packaging content | |
| Cables included | DC, KVM |
| Manual |
|
| Rack mount kit |
|
| SKU | 699938 |
| MPN | CS1208A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
