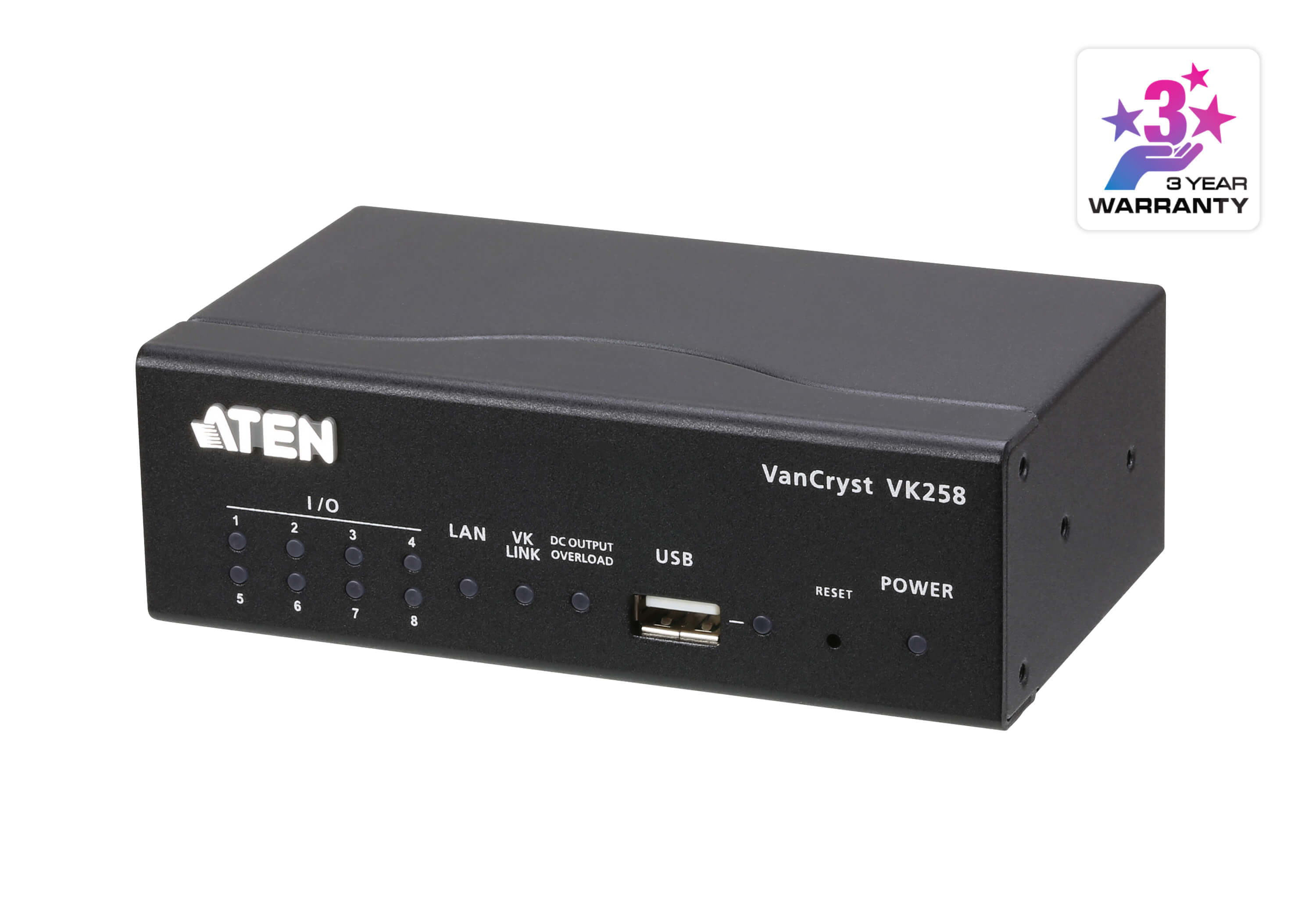

ATEN 8-Channel Digital I/O Expansion Box, Digital, Input/output, 8 channels, 8 channels, 8 channels, ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
The VK258 8-Channel Digital I/O Expansion Box provides an additional eight channels of digital input/output for a flexible expansion of the ATEN Control System. This allows users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of the Ethernet-based connection, the expansion box easily connects to the ATEN Controller via a LAN connection from different locations across a network.
1x VK258 8-Channel Digital I/O Expansion Box
1x Rack Mount Kit
9xTerminal Blocks
1x User Instructions
1x VK258 8-Channel Digital I/O Expansion Box
1x Rack Mount Kit
9xTerminal Blocks
1x User Instructions
| Features | |
| Module type The type of module, which is any of a number of distinct but interrelated units from which a program may be built up or into which a complex activity may be analysed. | Digital |
| Signal direction The direction which the signal is transmitted, or the direction from where the signal is received. | Input/output |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 8 channels |
| Digital input channels quantity | 8 channels |
| Digital output channels quantity | 8 channels |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 12 V |
| Input impedance | 0.3 Ω |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption | 300 mA |
| Power consumption note | DC5V:2.2W:36BTU, POE:2.75W:39BTU |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Relative humidity | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 75.8 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 42 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 550 g |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 239 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 708 g |
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.89 kg |
| Master (outer) case net weight | 2.75 kg |
| SKU | 700496 |
| MPN | VK258-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
