Aten 8-Button Keypad (US, 1 Gang) - Black
Item No:
767366
MPN:
VK108US1-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VK108US1-AT, Remote control, Black, Wall, 10,100 Mbit/s, VK2100/VK1100, Wired

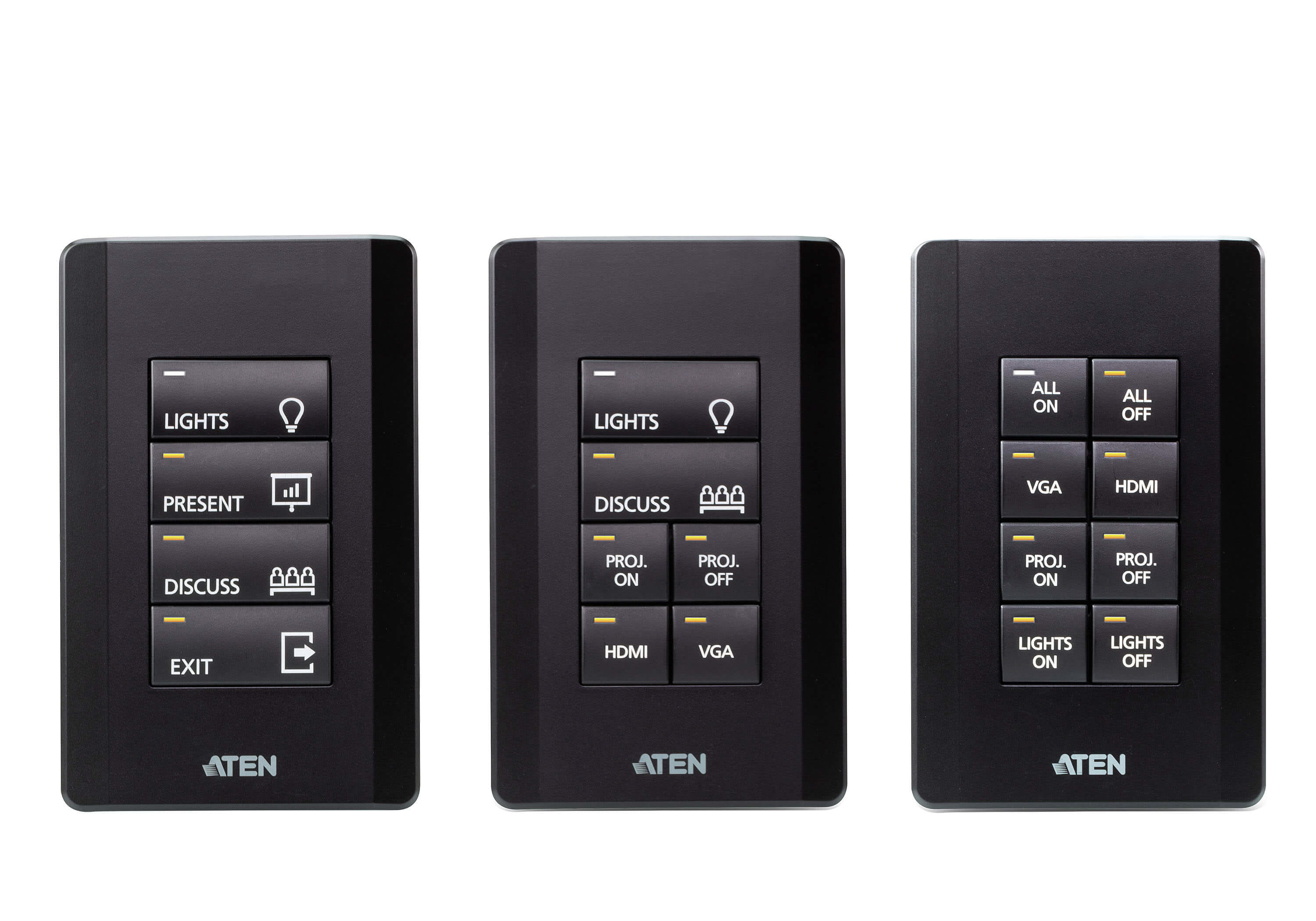

The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego
| Features | |
| Product type The sub-category of the product. | Remote control |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Wall |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Compatible products Other products that can be used with this product. | VK2100/VK1100 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| DC input voltage | 48 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.58 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 27.8 mm |
| Depth The distance from the front to the back of something. | 45.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 15.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 130 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Packaging content | |
| Quantity The number of products there are. | 1 |
| SKU | 767366 |
| MPN | VK108US1-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
