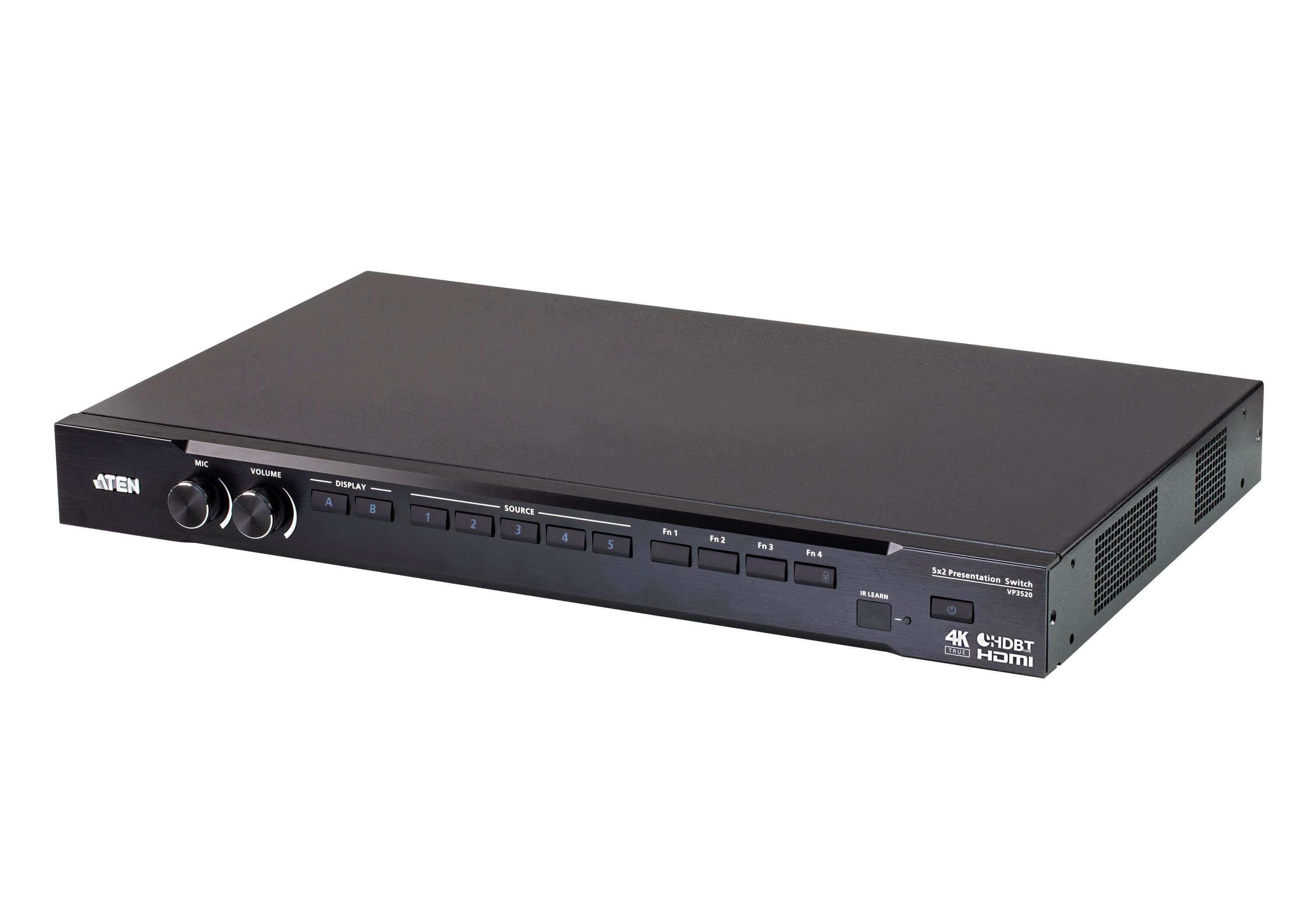

Aten 5x2 True 4K Seamless Presentation Matrix
Item No:
700622
MPN:
VP3520-AT-U
$5,484.47
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 10-15 business days
Store Availability
- 11-16 business days at Bankstown Store
- 11-16 business days at Castle Hill Store
- 10-15 business days at Northmead Store
Shipping Estimate
ATEN VP3520-AT-U, Media presentation matrix switcher, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, 1920 x 1080, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x..., Black, Metal, Buttons
The ATEN VP3520 is a multi-in-one presentation matrix switch that integrates a video matrix switch, 4K scaler, HDBaseT extender, and audio DSP functions into one compact device that easily mounts under a table or in a rack. The VP3520 seamless presentation matrix switch with control features the True 4K video resolutions of 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) and HDR technology, guaranteeing crystal-clear images across two displays. The VP3520 supporting 4K @ 60 Hz, HDMI, and HDCP 2.2 features Seamless Switch that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance 4K scaler, the VP3520 easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across the two displays.
With flexible audio de-embedding, the VP3520 is designed with the audio routing flexibility to meet different application requirements. In a simple setup, HDMI audio can be connected and switched directly to display audio. For a more complex setup, the HDMI audio can be de-embedded to Audio Line Out in order to connect to your preferred in-room audio equipment. Equipped with 5 digital inputs to one HDBaseT and one HDMI True 4K separate outputs, the VP3520 enables users to control 2 displays at the same time and is designed to boost the efficiency and impact of professional presentations. The VP3520 provides users with the flexibility of using both active and passive speakers with its stereo line out port, coaxial port, and 2 x 10 W power amplifiers.
As for the control functions, the VP3520 offers users multiple control options such as the front-panel pushbuttons, IR remote control, RS-232 commands, and web-based GUI. Moreover, the VP3520 enables the control over AV devices such as TV displays, projectors, and monitors. It is ideal for all meeting spaces and education environments, including huddle rooms, classrooms, training rooms, or any other presentation setting such as exhibition galleries or hotels.
With flexible audio de-embedding, the VP3520 is designed with the audio routing flexibility to meet different application requirements. In a simple setup, HDMI audio can be connected and switched directly to display audio. For a more complex setup, the HDMI audio can be de-embedded to Audio Line Out in order to connect to your preferred in-room audio equipment. Equipped with 5 digital inputs to one HDBaseT and one HDMI True 4K separate outputs, the VP3520 enables users to control 2 displays at the same time and is designed to boost the efficiency and impact of professional presentations. The VP3520 provides users with the flexibility of using both active and passive speakers with its stereo line out port, coaxial port, and 2 x 10 W power amplifiers.
As for the control functions, the VP3520 offers users multiple control options such as the front-panel pushbuttons, IR remote control, RS-232 commands, and web-based GUI. Moreover, the VP3520 enables the control over AV devices such as TV displays, projectors, and monitors. It is ideal for all meeting spaces and education environments, including huddle rooms, classrooms, training rooms, or any other presentation setting such as exhibition galleries or hotels.
| Features | |
| Product type The sub-category of the product. | Media presentation matrix switcher |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported |
|
| Extended display identification data (EDID) |
|
| Supported resolutions | 4096 x 2160, 3840 x 2160, 1920 x 1080, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1024 x 768, 800 x 600, 720 x 400, 640 x 480 |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Control type The way in which the device is controlled. | Buttons |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Rubber feet |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Ports & interfaces | |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 2 |
| Analog audio output terminal ports | 1 |
| Relay outputs | 2 |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 46.7 W |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 45.8 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 220 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Heat dissipation The heat generated by the power supply. | 310 BTU/h |
| Heat dissipation (max) | 314 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 272.3 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.8 kg |
| Package width The distance from one side of the packaging to the other. | 133 mm |
| Package depth The distance from the front to the back of the packaging. | 499 mm |
| Package height The distance from the top to the bottom of the packaging. | 324 mm |
| Package weight Weight of the packaged product. | 5.46 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit |
|
| Manual |
|
| IR receiver included |
|
| SKU | 700622 |
| MPN | VP3520-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
