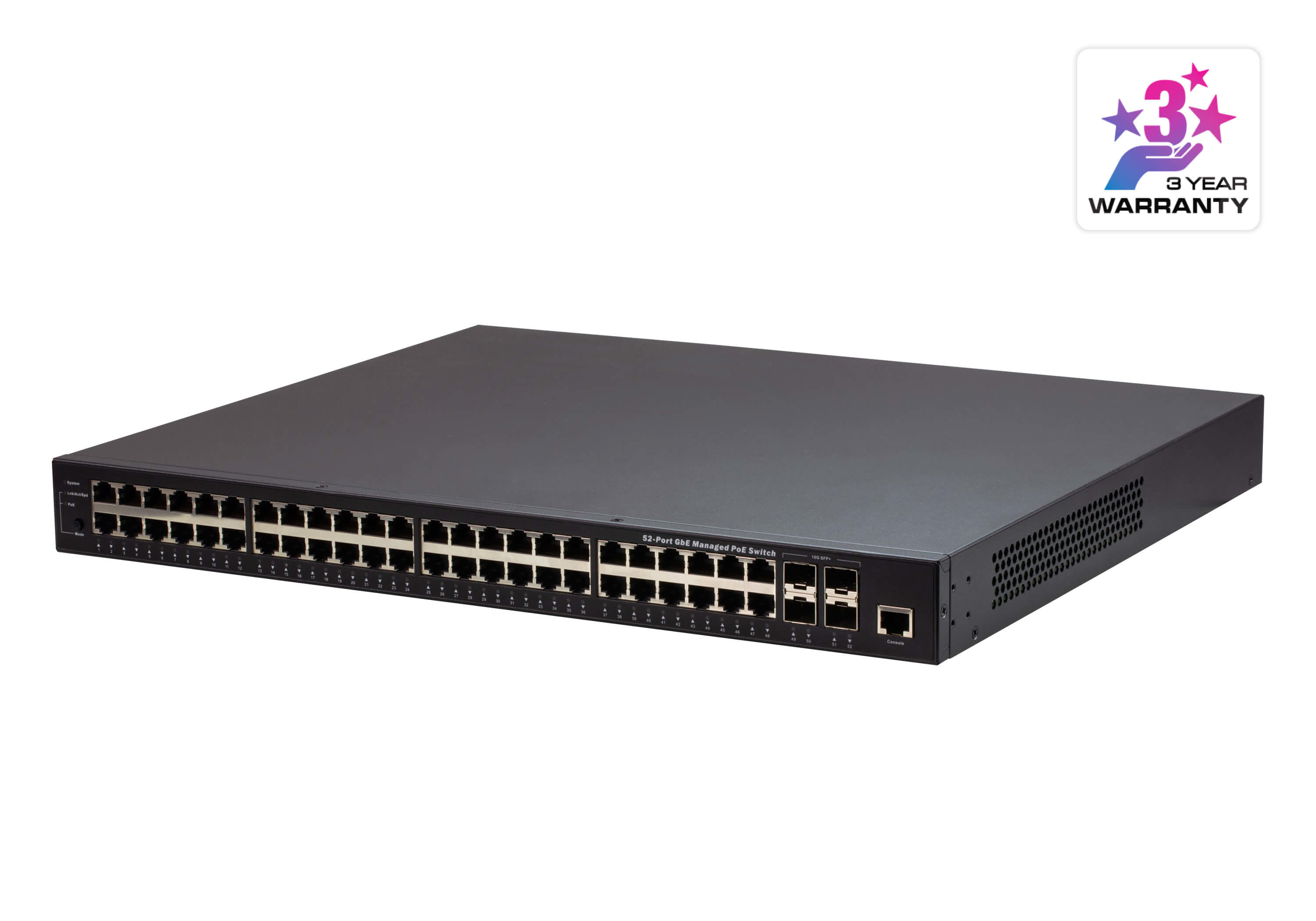

Aten 52-Port GbE PoE Managed Switch
Item No:
700016
MPN:
ES0152P-AX-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN ES0152P AX U, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 19U
The ES0152P is a feature rich managed switch for ATEN KE series KVM over IP extenders and VE89 series Video over IP extenders. Ideal for installation in combination with the KE / VE89 series products, the ES0152P helps users build their OT infrastructure with the KE series by eliminating the hassles of complicated setup.
Deploying the ES0152P is fast and easy. With everything plug and play, there is no need to install software or configure devices. Simply connect the KE / VE89 transmitters and receivers to the ES0152P using Cat 5e/6 cables and all KE / VE89 series devices on the same LAN will automatically be detected.
The ES0152P network switch provides a 52 port, high performance configuration, a complete array of L2 features and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support and LLDP, delivering a versatile solution for improving network performance.
The ES0152P offers a combination of SFP (fiber) and RJ45 (copper) ports for servicing a range of network needs. It supports 4 (1G/10G) SFP and 48 (10M/100M/1G) RJ45 with PoE (Support 802.3at/af) ports. Featuring Power over Ethernet (PoE) function, the ES0152P can provide up to 740 Watts power budget across 48 RJ45 ports thus eliminating the need for a power adapter and effectively reducing the power configuration cost.
The ES0152P comes with embedded DMS functions to facilitate device management anytime and anywhere. Its intuitive, user friendly interface enables IT administrators to set up and manage their networks and all the connected KE / VE89 devices effortlessly. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0152P is an ideal network switch solution for SMBs and enterprises, and even more so for those that have chosen to adopt ATEN KE series KVM over IP extenders or VE89 series Video over IP extenders into their OT infrastructure.
Deploying the ES0152P is fast and easy. With everything plug and play, there is no need to install software or configure devices. Simply connect the KE / VE89 transmitters and receivers to the ES0152P using Cat 5e/6 cables and all KE / VE89 series devices on the same LAN will automatically be detected.
The ES0152P network switch provides a 52 port, high performance configuration, a complete array of L2 features and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support and LLDP, delivering a versatile solution for improving network performance.
The ES0152P offers a combination of SFP (fiber) and RJ45 (copper) ports for servicing a range of network needs. It supports 4 (1G/10G) SFP and 48 (10M/100M/1G) RJ45 with PoE (Support 802.3at/af) ports. Featuring Power over Ethernet (PoE) function, the ES0152P can provide up to 740 Watts power budget across 48 RJ45 ports thus eliminating the need for a power adapter and effectively reducing the power configuration cost.
The ES0152P comes with embedded DMS functions to facilitate device management anytime and anywhere. Its intuitive, user friendly interface enables IT administrators to set up and manage their networks and all the connected KE / VE89 devices effortlessly. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0152P is an ideal network switch solution for SMBs and enterprises, and even more so for those that have chosen to adopt ATEN KE series KVM over IP extenders or VE89 series Video over IP extenders into their OT infrastructure.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1w, IEEE 802.3ah, IEEE 802.3at |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Flow control support |
|
| Spanning tree protocol |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| Jumbo frames support |
|
| Jumbo frames | 10240 |
| Security | |
| IGMP snooping |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | 19U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 740 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 442 mm |
| Depth The distance from the front to the back of something. | 372 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.93 kg |
| Packaging data | |
| Cables included | AC |
| User guide |
|
| SKU | 700016 |
| MPN | ES0152P-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
